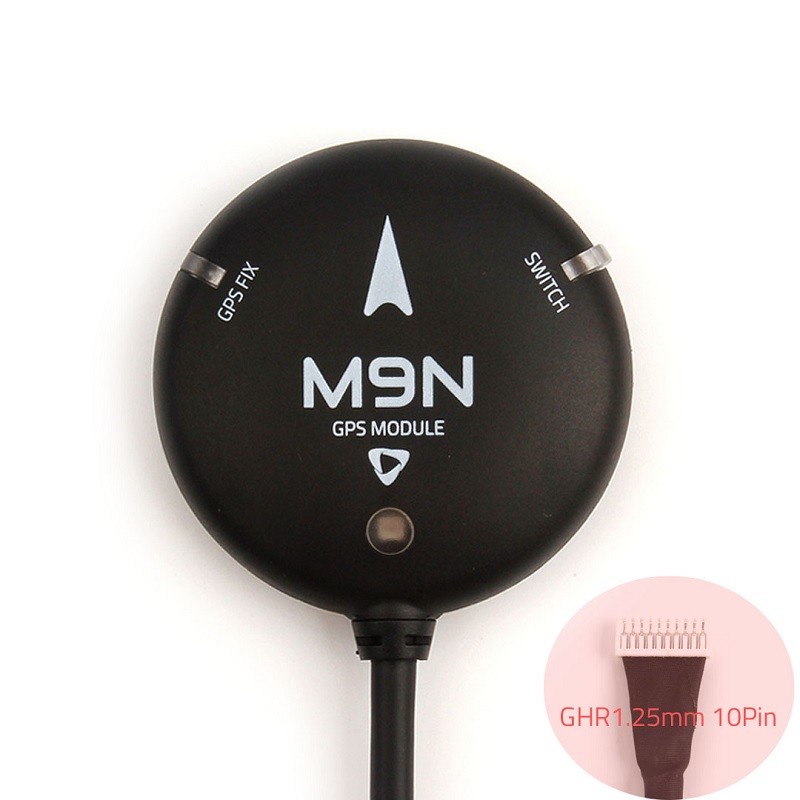

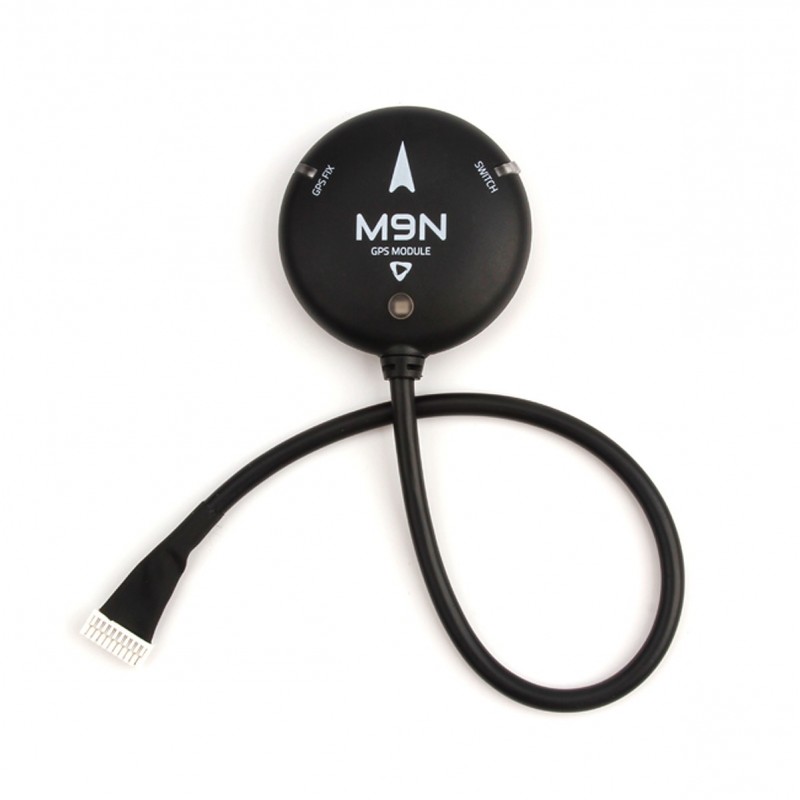

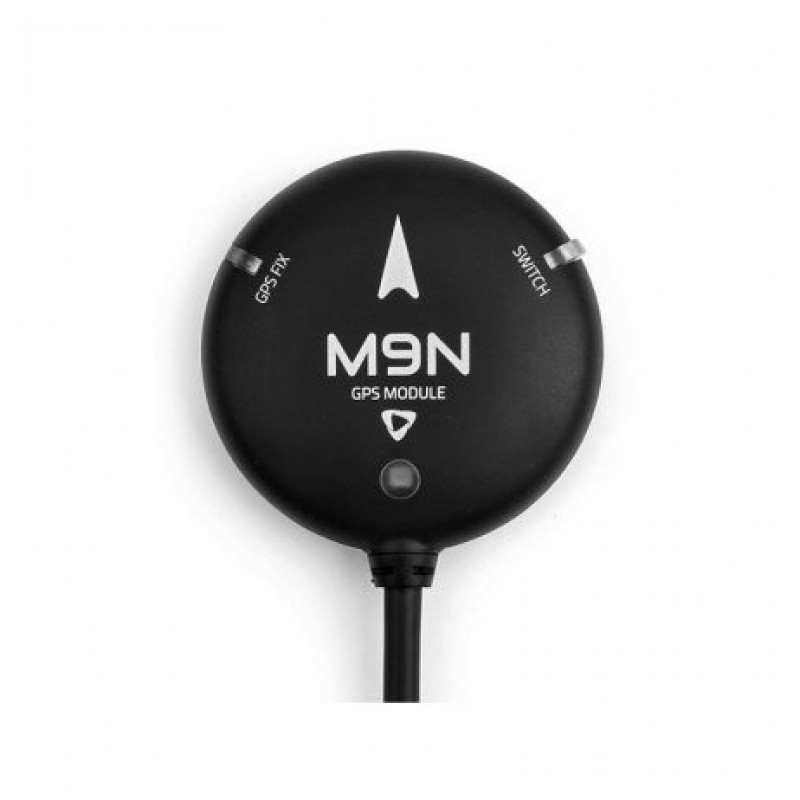

Holybro M9N GPS with Standard Connector

Holybro M9N GPS has a UBLOX M9N module, an IST8310 compass, a tri-colored LED indicator, and a safety switch. There are three different connector options for different purposes. This module ships with a baud rate of 115200 5Hz

The M9N GPS uses multi-constellation GNSS powered by the u-blox M9N, a concurrent GNSS receiver that can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellationsGPS, Galileo, GLONASS, and BeiDoucan be received concurrently.

It also comes with the IST8310 compass, tricolored LED indicator, buzzer, and a safety switch. This module ships with a baud rate of 115200 (38400 previously).

The high-gain 25 x 25 mm2 patch antenna provides excellent performance, and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna and a rechargeable backup battery for warm starts.

Note: This module comes with three connector variants. This is the standard connector variant

Features:

1. Ublox Neo-M9N module
2. Max concurrent reception of 4 GNSS
3. Industry-leading -167 dBm navigation sensitivity
4. Cold starts: 26s
5. LNA MAX2659ELT+
6. 25 x 25 x 4 mm ceramic patch antenna
7. Rechargeable Farah capacitance
8. Low-noise 3.3V regulator
9. Current consumption: less than 150mA @ at 5 volts
10. Fix indicator LEDs
11. Protective case
12. 26cm cable included
13. Diameter: 50mm total size, 32 grams with case.

Packages Includes:

1 x M9N GPS Module (Standard Connector)

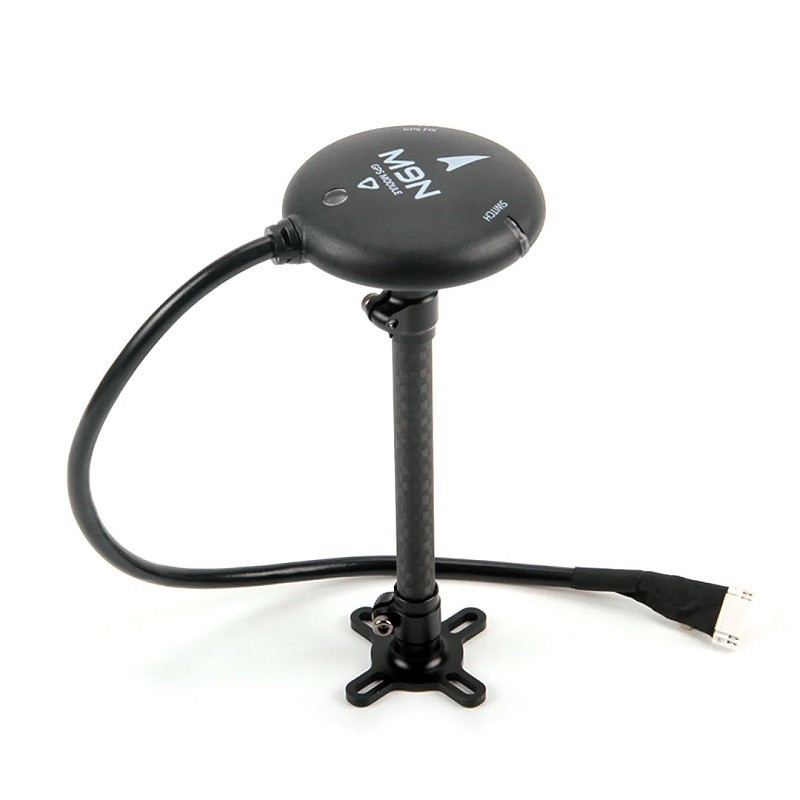

1 x Fixed Carbon Fiber GPS mount
