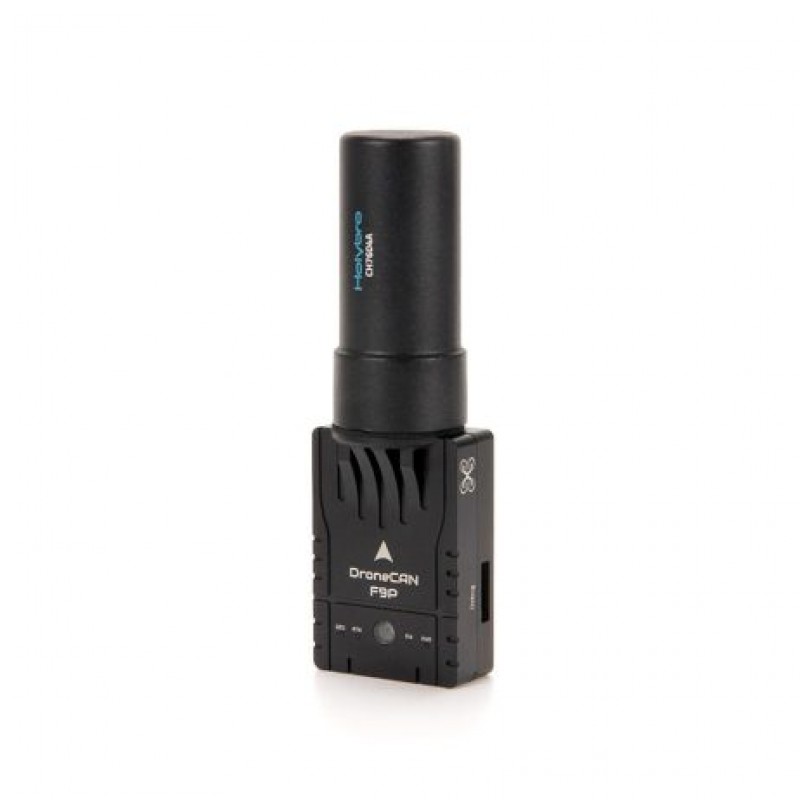

Holybro DroneCAN H-RTK F9P Helical High Precision GNSS Positioning System For Accurate Drone Positioning

The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system from Holybro. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo, and BeiDou, and a fast update rate for highly dynamic and high-volume applications with centimeter accuracy.

With the adoption of the DroneCAN Protocol, it has up to an 8 Hz navigation update rate, upgradeability, noise immunity, and real-time features, and is more robust than UART due to its increased resistance to electromagnetic interference. It does not occupy any serial port of the flight controller, and multiple CAN devices can be connected to the same CAN bus via a hub.

The DroneCAN-F9P uses a u-blox F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrades via the DroneCAN GUI Tool. It is compatible with the open-source Pixhawk series flight controller.

Features:

1. High Precision: Achieve centimeter-level accuracy for precise drone navigation.
2. DroneCAN Compatibility: Seamlessly integrates with DroneCAN-enabled devices.
3. Helical Antenna: Exceptional signal reception in challenging environments.
4. Advanced GNSS: Utilizes F9P technology for accurate positioning.
5. Professional Grade: Ideal for surveying, mapping, and industrial applications.
6. Plug-and-Play: Easy setup for efficient mission planning.
7. Reliable Performance: Ensure stable flight even in challenging conditions.

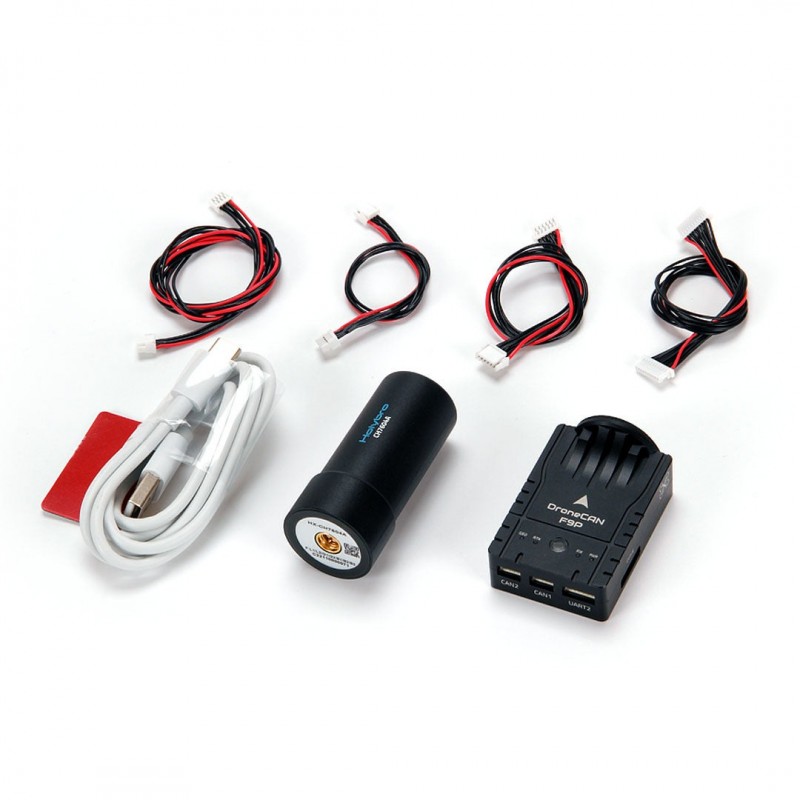

Package Includes:

1 x DroneCAN H-RTK F9P Helical

1 x High Precision GNSS Antenna

1 x GH 4P cable 400mm

1 x GH 4P cable 150mm

1 x GH 6P cable 150mm

1 x SH 10P cable 150mm

1 x USB (type-c) cable
