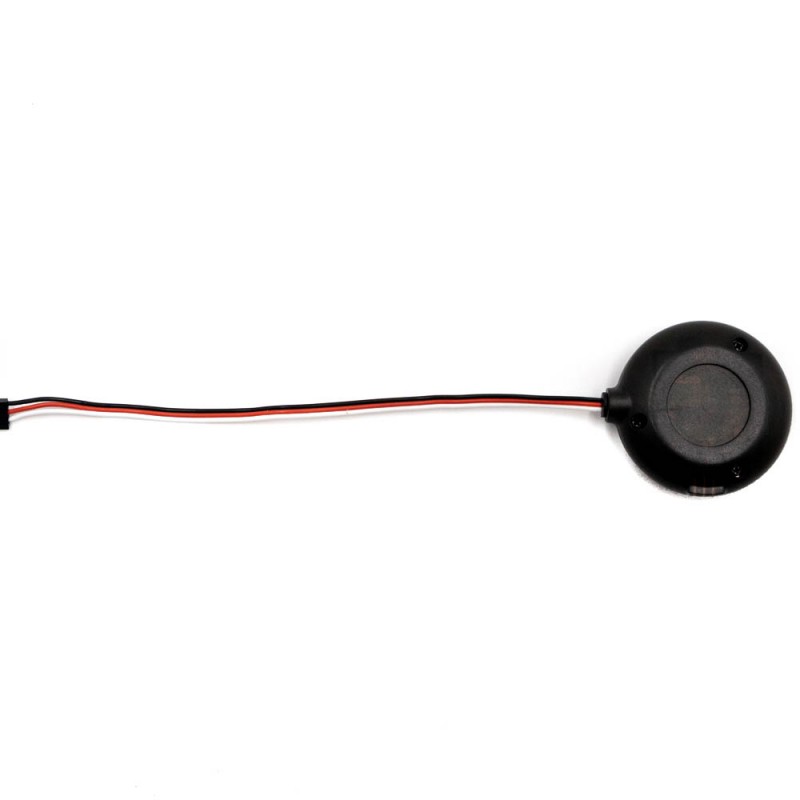

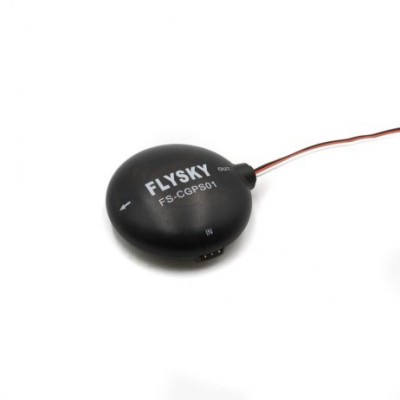

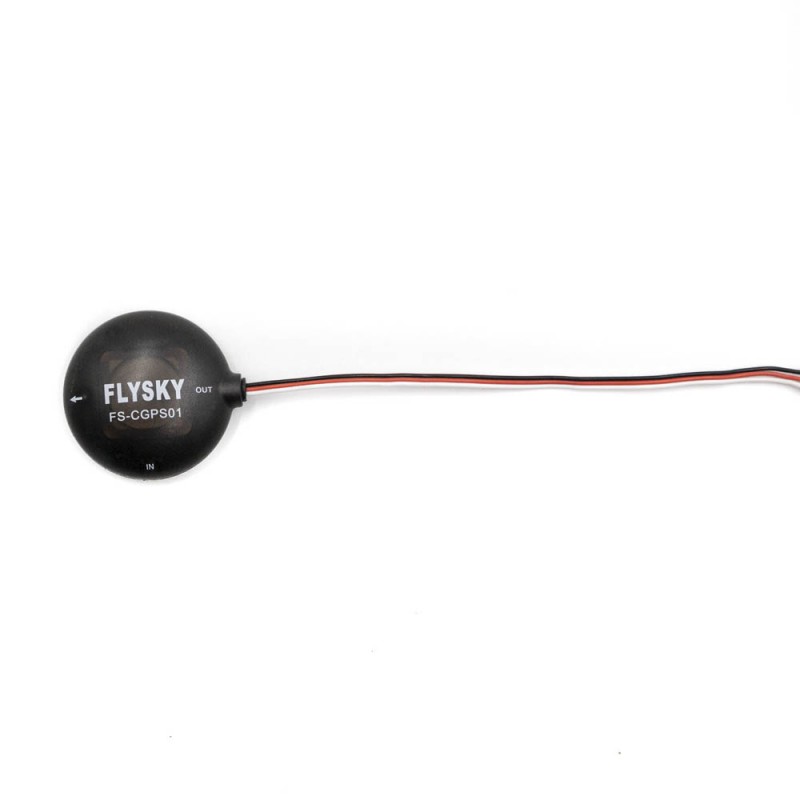

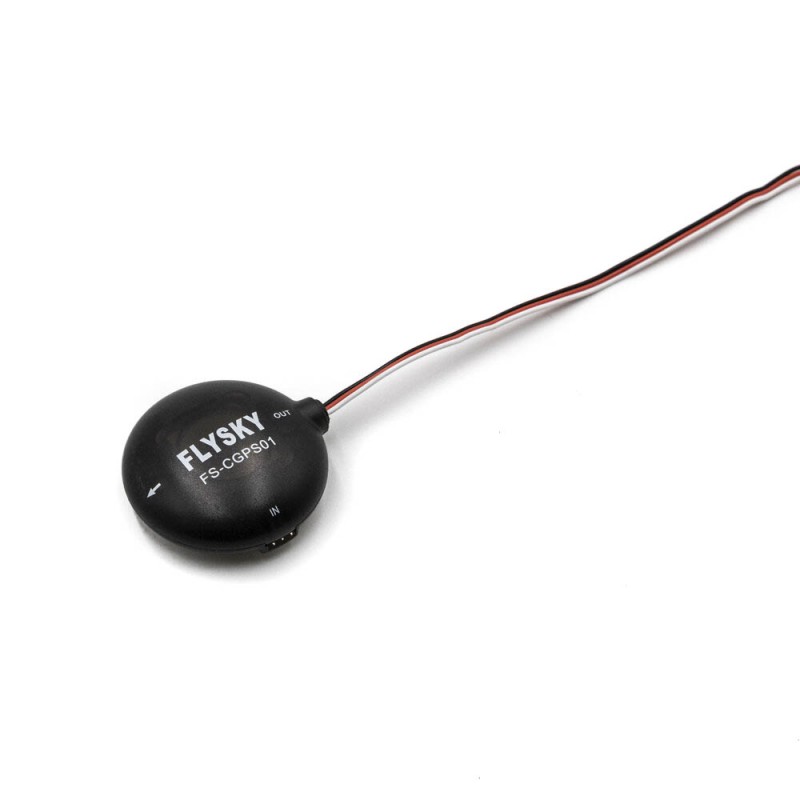

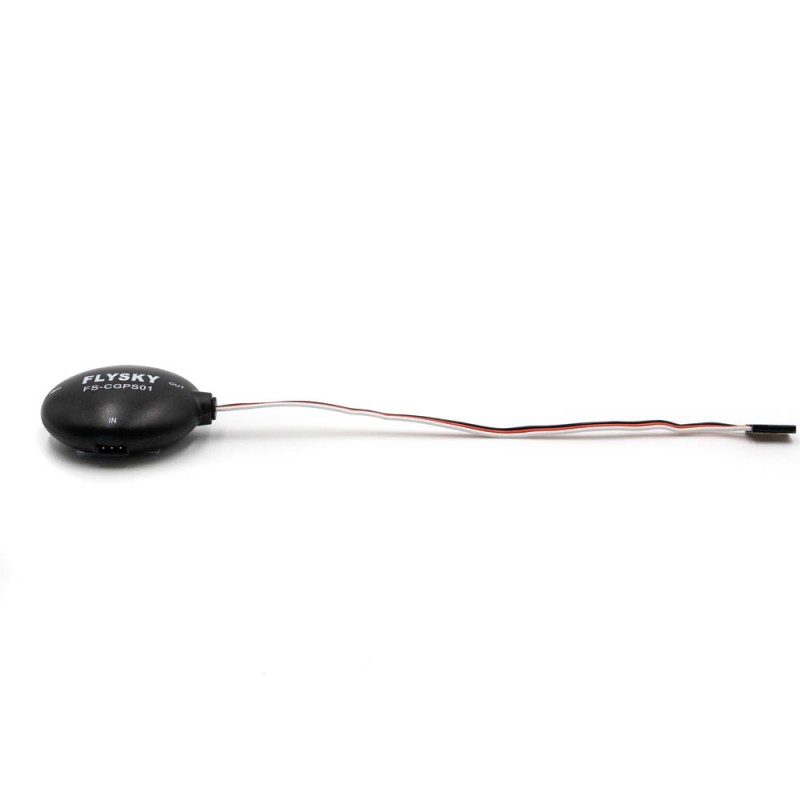

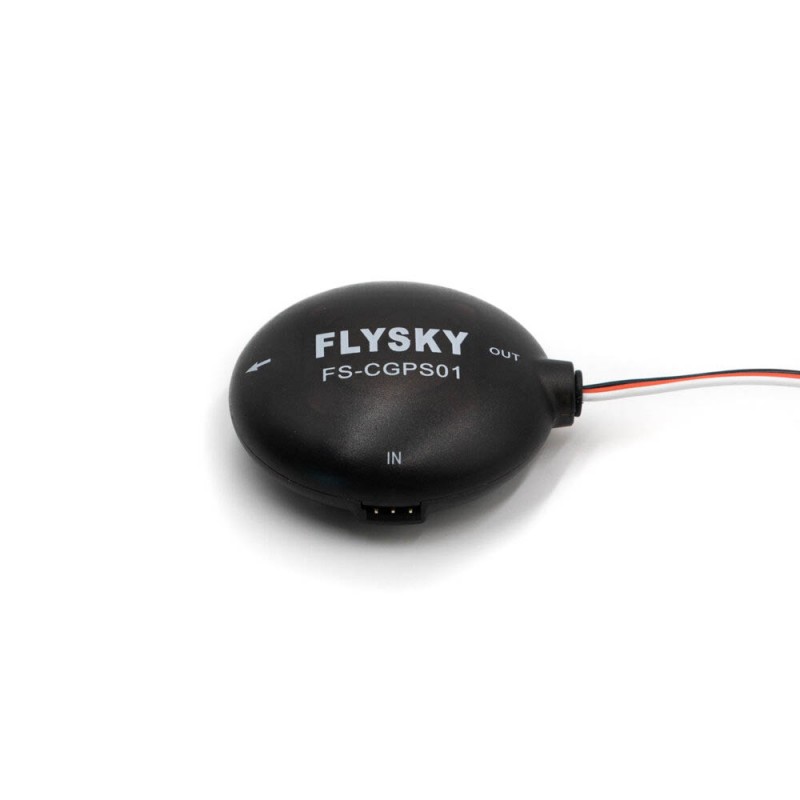

FlySky FS-CGPS01 GPS Module

The FS-CGPS01 adopts the NEO-M8Q chip, supports GPS, Galileo, Beidou, and other satellite systems, and features high sensitivity, short acquisition time, strong anti-interference ability, and low power consumption.

The FS-CGPS01 can be used for fixed wings, and traversal machines (5 inches, 7 inches larger models) training to view satellite quantity, ground distance, ground speed, height, direction, longitude, latitude, etc. By viewing the ground distance, the height, and ground speed can provide some reference data for evaluating battery life or training effects, and can provide data on the aircraft in the aircraft by the ground distance and direction. For the vehicle model, the speed can be measured by GPS.

Cautions:

1. Ensure that the product and model are installed correctly before use, otherwise, the model may be seriously damaged.
2. Keep the GPS installed horizontally, install it higher than the machine body as far as possible, and keep it away from high current and strong magnetic objects;
3. Avoid overexertion to damage any objects;
4. If the bracket is not installed, please stick the GPS to the model frame using 3M.
5. If you need to install the bracket, please stick the GPS on the bracket using 3M and keep the following installation status.

Features:

1. Item Name: FS-CGPS01 GPS
2. Model: FS-CGPS01
3. Master Chip: NEO-MBQ
4. Channels: 72
5. Satellite Systems Supported: GPS | Galileo | Beidou
6. Number of Satellites Searched: > 12
7. Tracking: -167dBm
8. Capture: -160dBm
9. Cold Start: -148dBm
10. Hot Start: -157d Bm
11. Cold Start Time: Average 265
12. Hot Start Time: Average Is
13. Positioning Accuracy: 0.3 degrees
14. Accuracy of Speed Measurement: 0.05 m/s
15. Time Accuracy: RMS 99% 30ns
16. LED: Yes
17. Frequengy Range: 1559NH 1606 MHZ
18. Update Frequency: 10Hz
19. Data Format: i-BUS
20. Input Power: 4.0 ~ 8.4V
21. Temperature Range: -15C~ +60C
22. Humidity Range: 20%6 ~ 95%6
23. Dimensions: 52.4 x 50 x 18.5mm
24. Weight: 30g
25. Certification: CE.FCC

Package Includes:

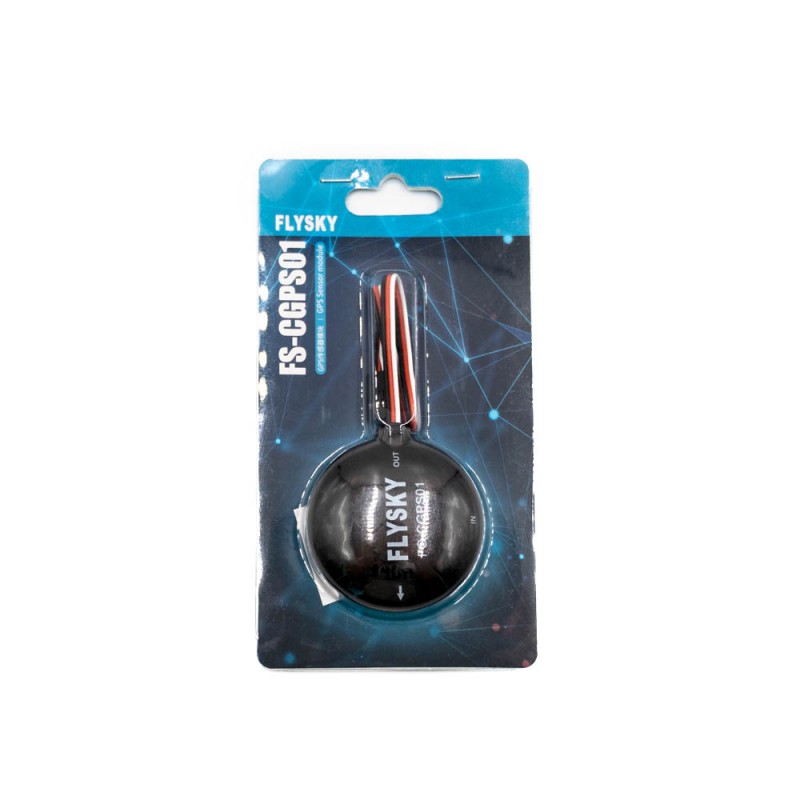

1 x FlySky FS-CGPS01 GPS Module
