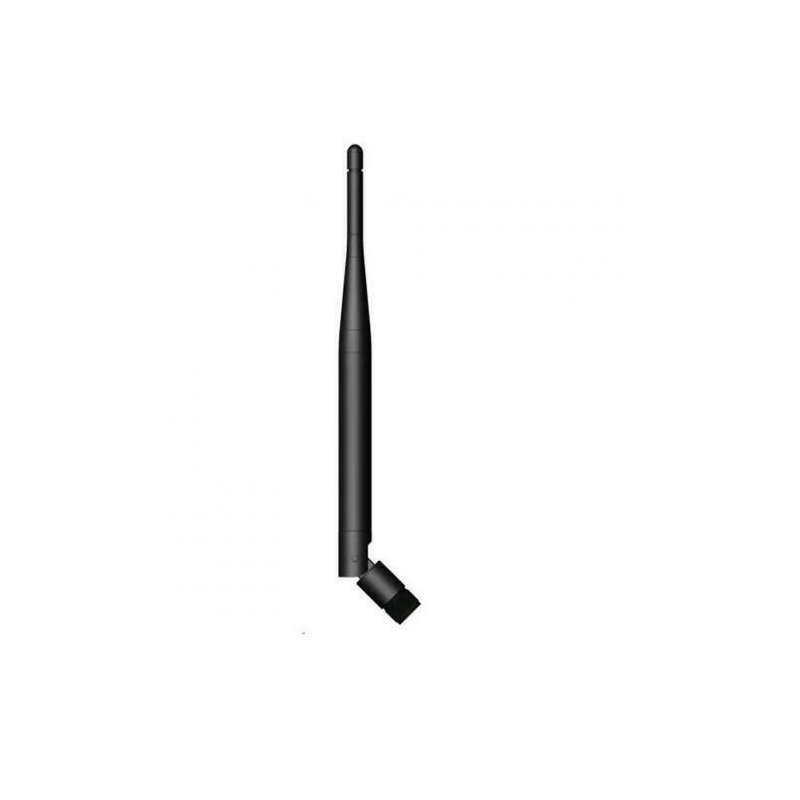

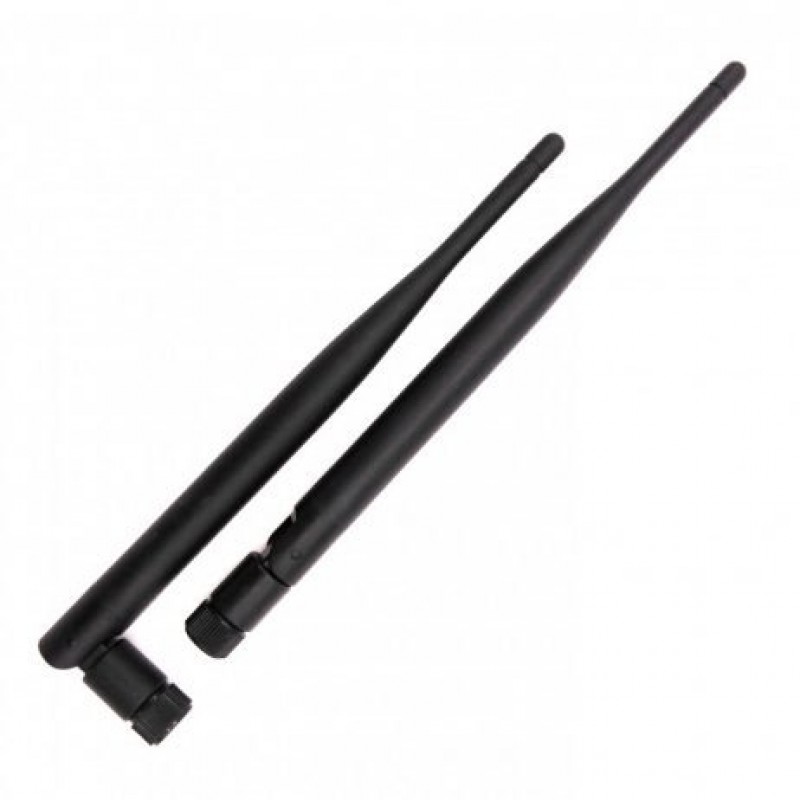

698-960 MHz And 1710-2690 MHz / 5dBi Gain Dual Band 3G / 4G LTE Antenna
- Product Code: EPI3808
- Availability: 86
-
Rs.125.00
- (Excluding 18% GST)
OR
This is 5 dBi GSM/3G/4G LTE Indoor Omni Antenna with Black color, SMA Male, and having a frequency of 698-960/1710-2690 MHz.The 5 dBi GSM/3G/4G/LTE Indoor Omni is suitable for extending coverage or as a replacement antenna for any RBI or Cellular modem/router. These are also the perfect antenna for building custom 3G/4G/LTE Routers using MikroTik and Sierra Wireless cards
Application: 2G, 3G, 4G, ISM
Features:
- Compact Size.
- High quality
- Low cost
- RP-SMA(Plug) connector available.
Package Includes:
1 x 698-960 MHz &1710-2690 MHz / 5dBi Gain Dual Band 3G / 4G LTE Antenna
Specifications :-
| Frequency (MHz) | 698-960MHz & 1710-2690 MHz |
| Gain | 2/5 dBi |
| Impedance () | 50 |
| VSWR | < 2.0 |
| Polarization | Vertical |
| Power Handling (W) | 50 |
| HPBW | H: 3600 ; V: 300/ 400 |
| Connector | SMA-Plug Right Angle |
| Operational Temperature | -30 to 60 C |
| Humidity | 5 95% |
| Dimension (mm) | 195 x 15 |
| Housing | Plastic / Black |
| Weight(g ) | 50 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 147.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
