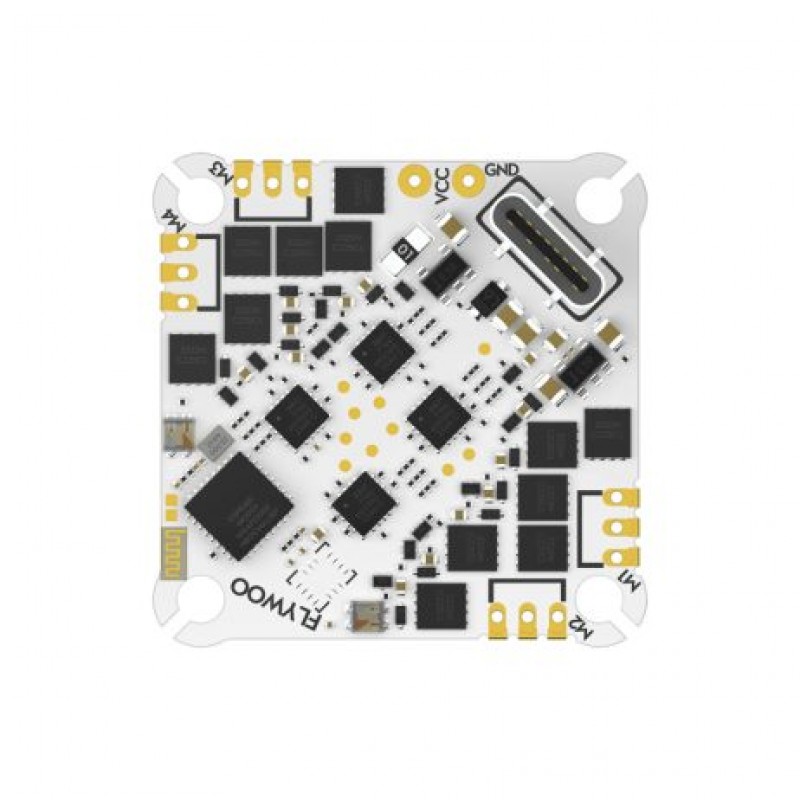

FLYWOO GOKU F405 HD 1-2S 12A AIO ELRS (ICM42688)

The FLYWOO GOKU F405 HD is a state-of-the-art all-in-one (AIO) flight controller designed for 1-2S HD micro drones, tailored to meet the demands of both hobbyists and advanced users. This compact unit integrates essential components for a streamlined setup, enhancing performance and ease of use.

Features:

1. Advanced MCU: Powered by STM32F405BGA for high processing speed.
2. Gyro Sensors: Utilizes ICM42688P for superior stability.
3. Integrated ESC: 4-in-1 ESC supports 1S/2S LiPo batteries with up to 12A output.
4. Versatile BEC: 5V and 9V outputs at 2A prevent power drops.
5. Data Recording: 8MB black box for flight data analysis.
6. Multiple UARTs: Up to six UART ports for extensive peripheral connectivity.
7. Plug-and-Play O3 Port: Direct plug design for O3 Air unit simplifies installation.
8. Socket Motor Connections: Quick motor replacements and upgrades.
9. LED Indicators: Two WS2812 LEDs provide flight status feedback.
10. Built-in Barometer: DPS310/SPL06 for accurate altitude measurements.
11. Current Sensor: Monitors power consumption for better battery management.

Package Includes:

1x FLYWOO GOKU F405 HD 1-2S 12A AIO ELRS V2 (ICM42688)

1x XT30 Power Cable

1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL(only ELRS Version)

1x DJI O3 Connection Cable

1x PH 2.0 Battery Lead

1x capacitor

4x JST Straight Socket

4x M2*10 screw

4x M2 nuts

4x M2 shock-absorbing ball
