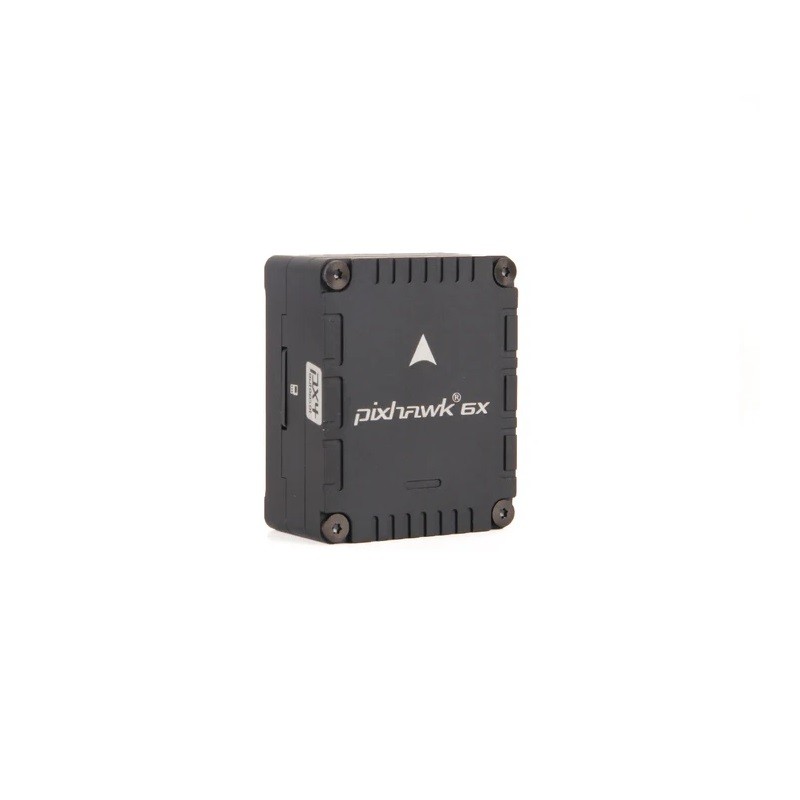

Holybro Pixhawk 6X(Rev8)-FC Module Only

The Holybro Pixhawk 6X flight controller offers triple redundancy with three ICM-45686 IMU sensors and two barometer sensors, ensuring exceptional reliability in demanding applications. Designed for precision, the system includes advanced vibration isolation with durable materials, optimizing IMU damping with a higher resonance frequency. Ethernet integration enables seamless communication with mission computers, while temperature-controlled IMUs guarantee consistent performance. Compact and lightweight, the Pixhawk 6X is ideal for industrial and commercial drone applications.

Features:

1. Redundancy: 3x ICM-45686 IMU sensors (32g) with BalancedGyro and 2x barometer sensors for enhanced reliability.
2. High-Performance Processor: Powered by STM32H753 processor, clocked at 480 MHz for fast computations.
3. Modular Flight Controller: Separate IMU, FMU, and Base systems with 100-pin and 50-pin Pixhawk Autopilot Bus connectors.
4. Triple Redundancy Domains: Isolated sensor domains with separate buses and power control for improved reliability.
5. Advanced Vibration Isolation: Durable material with higher spectrum resonance frequency to ensure precise sensor readings.
6. Ethernet Interface: For high-speed integration with mission computers and transformerless operation using 50 Ohm termination resistors.
7. Temperature-Controlled IMU: Keeps IMUs at an optimal working temperature for consistent performance.

Applications:

1. Drones & UAVs for research and mapping.
2. Autonomous Vehicles for land, air, and sea tasks.
3. Precision Agriculture for monitoring and spraying.
4. Robotics for custom autonomous systems.
5. Surveillance & Security for real-time monitoring.
6. Search & Rescue for disaster response

Package Includes:

1 x Pixhawk 6X Flight Controller Module
