Holybro Pixhawk 6X Pro Standard Set v2A

This new vibration isolation design uses a custom-formulated durabile silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone.

Features:

1. High-Performance IMU: ADIS16470 Industrial IMU with 40g accelerometer for precise motion sensing in demanding UAV applications.
2. Durable Vibration Isolation: Advanced material with high-frequency resonance, ideal for industrial and commercial drones.
3. Redundant Sensors: Triple redundant IMUs and double redundant barometers on separate buses for enhanced reliability.
4. Powerful Processor: High-performance STM32H753 Processor for fast and efficient operation.
5. Modular Design: Separated IMU, FMU, and base system for flexible configuration and easy upgrades.
6. Safety-Focused Design: Incorporates sensors from various manufacturers for improved fault tolerance and system safety.
7. Independent Power Management: Each sensor has its own dedicated LDO for stable power supply and control.
8. Ethernet Integration: High-speed mission computer connectivity, with transformerless support using 50 Ohm termination resistors.
9. Temperature-Controlled IMU Board: Ensures optimal IMU performance by maintaining an ideal operating temperature.

Applications:

1. UAVs (Unmanned Aerial Vehicles): Ideal for drones in industrial, commercial, and research applications, including surveying, mapping, and inspection.
2. Autonomous Systems: Used in autonomous ground vehicles, maritime vehicles, and robotics for precise motion control and navigation.
3. Industrial and Commercial Drones: Suitable for tasks such as infrastructure inspection, agricultural monitoring, and delivery services.
4. Research and Development: Perfect for academic research, prototyping, and testing new autonomous vehicle technologies.
5. Safety-Critical Systems: Designed for applications requiring high reliability and sensor redundancy, such as search and rescue or emergency response drones.
6. High-Precision Monitoring: Used in applications requiring precise motion sensing, like aerial cinematography or geological surveys.

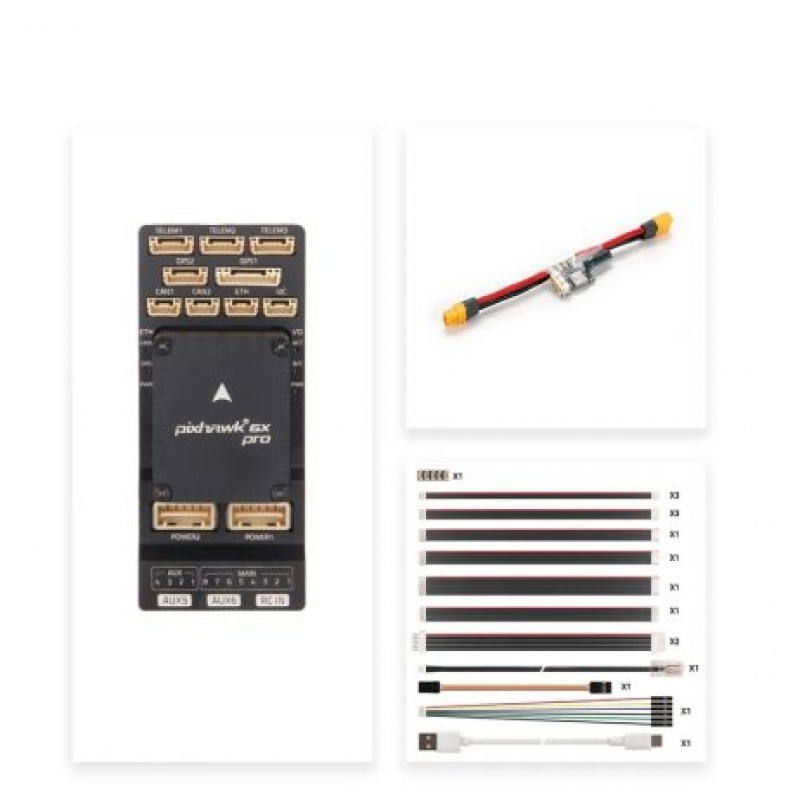

Package Includes:

1 x Pixhawk 6X Pro Flight Controller Module
1 x Pixhawk Standard Baseboard v2A
1 x PM02D HV Power Module
1 x Cable Set
