Holybro Pixhawk 6X Pro Mini Set

This new vibration isolation design uses a custom-formulated durable silicone-based isolation material in place of the traditional foam design. Backed by extensive R&D and testing, it offers optimal IMU damping characteristics with resonance frequency in the higher spectrum, perfect for industrial and commercial drone.

Features:

1. Industrial-Grade IMU: ADIS16470 with 40g accelerometer for accurate motion sensing in demanding UAV applications.
2. Advanced Vibration Isolation: Durable material with high-spectrum resonance for industrial and commercial drones.
3. Sensor Redundancy: Triple IMUs and double barometers on separate buses for reliability.
4. High-Performance Processor: STM32H753 for efficient and fast processing.
5. Modular Design: Separate IMU, FMU, and base system for flexibility and scalability.
6. Safety-Driven Architecture: Sensors from various manufacturers for improved fault tolerance.
7. Independent Power Management: LDO powers each sensor with independent control.
8. Ethernet Interface: High-speed mission computer connectivity, supporting transformerless 50 Ohm termination.
9. Temperature-Controlled IMU: Optimized IMU working conditions for precise performance.

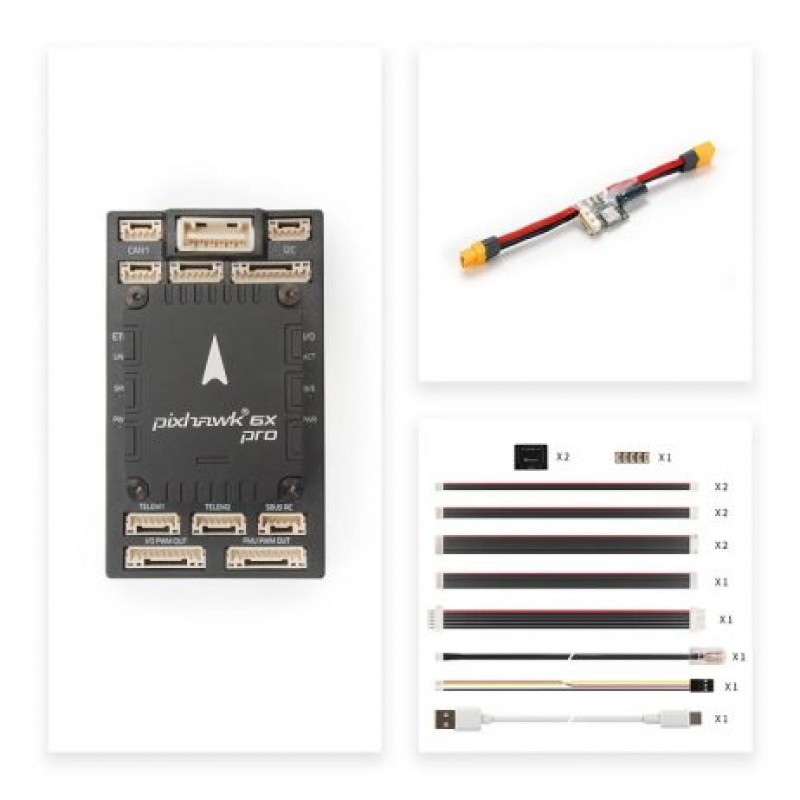

Package Includes:

1 x Pixhawk 6X Pro Flight Controller Module
1 x Mini Baseboard
1 x PM02D HV Power Module
1 x Cable Set
