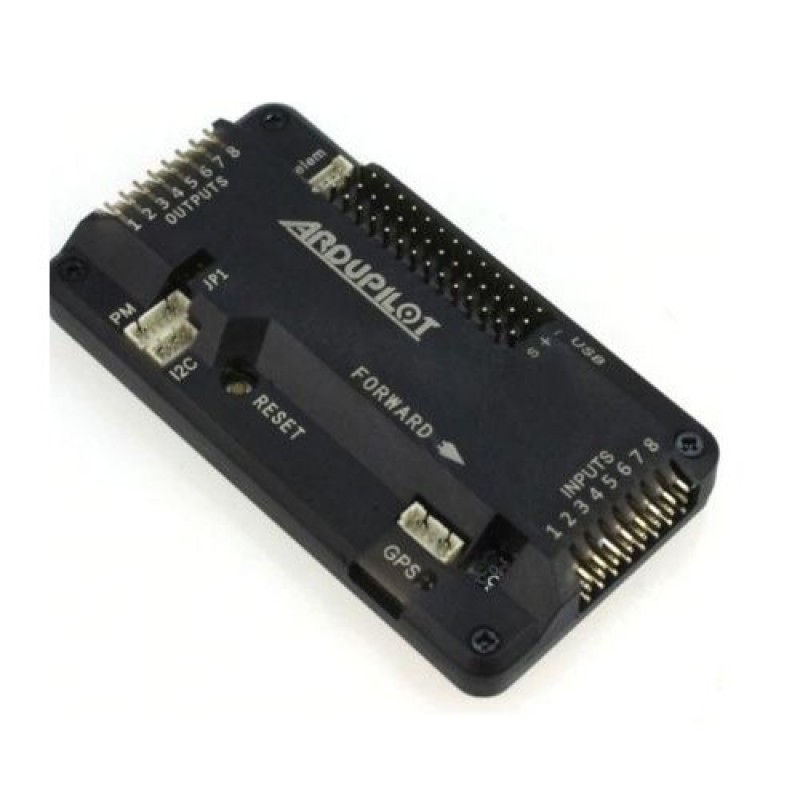

APM 2.8 Flight Controller with Built-in Compass

APM 2.8 Multicopter Flight Controller is an upgraded version of 2.5, 2.6; for FPV RC Drone. The sensors are exactly the same as the APM 2.6 flight controller; however, the module has the option to use an external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers.

The APM 2.8 Multicopter Flight Controller is a complete open source autopilot system. This is the best selling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary-wing. In addition, it turns multirotor vehicle (even cars and boats) into a fully autonomous vehicle. meanwhile, it is capable of performing programmed GPS missions with waypoints.

Powerful ground control software features:

The downloadable mission planner software is used to configure and control your Ardupilot board:

1. Point-and-click waypoint entry, using Google Maps.
2. Select mission commands from drop-down menus.
3. Download mission logs files and analyzes them.
4. Configure APM settings for your airframe.
5. Interface with a PC flight simulator to create a full hardware-in-the-loop UAV simulator.
6. See the output from APMs serial terminal.

Features :

1. Straight Needle
2. Arduino Compatible!
3. Onboard 4 MegaByte Dataflash chip for automatic data logging.
4. Optional off-board GPS, auBlox LEA-6H module with Compass.
5. One of the first open-source autopilot systems to use Invensenses 6 DoF Accelerometer/Gyro MPU-6000.
6. Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
7. Atmels ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.

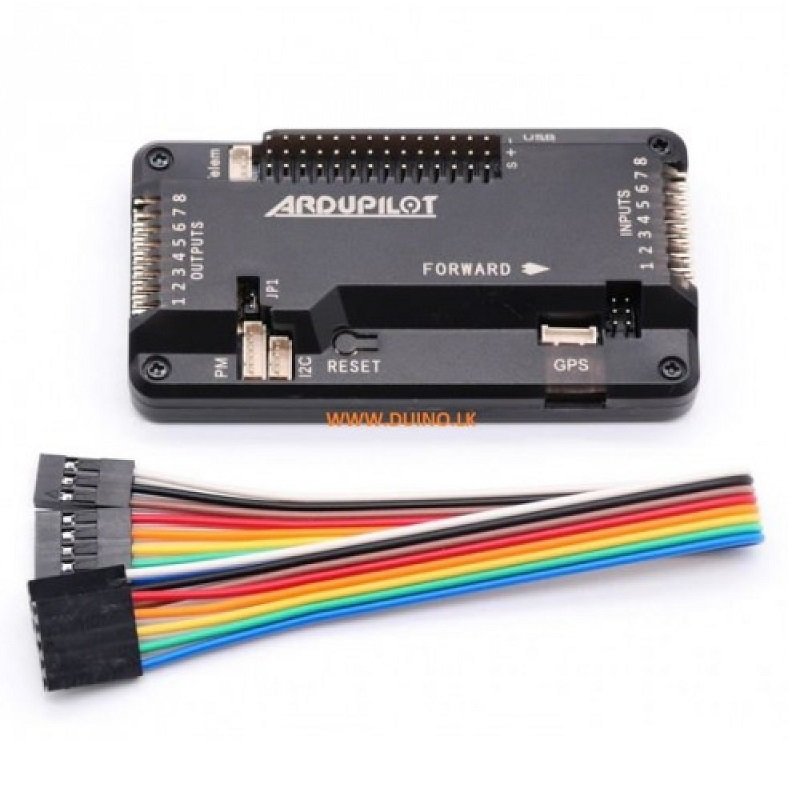

Package Includes :

1 x APM 2.8 Multicopter Flight Controller.

2 x Connecting Wires.

Specifications :-

Model	APM 2.8
Power supply	LP2985-3.3.
Port	MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
Input Voltage (V)	12~16 VDC
Sensors	3-Axis Gyrometer Accelerometer High-performance Barometer
Processor	ATMEGA2560 and ATMEGA32U-2
Micro-SD Card Slot	No
Dimensions (mm) LxWxH	70 x 45 x 15
Weight (gm)	82
