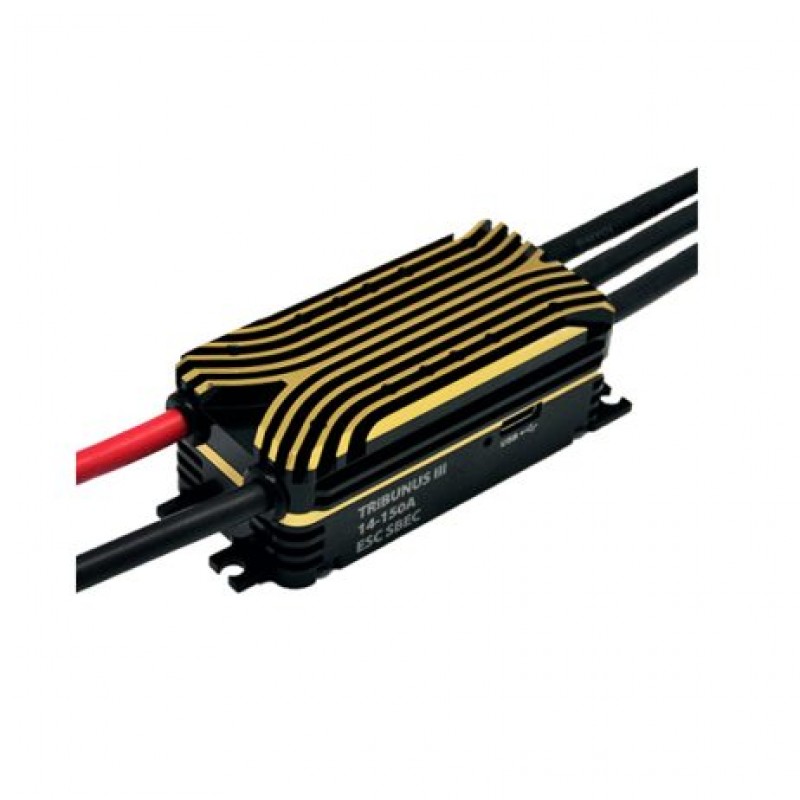

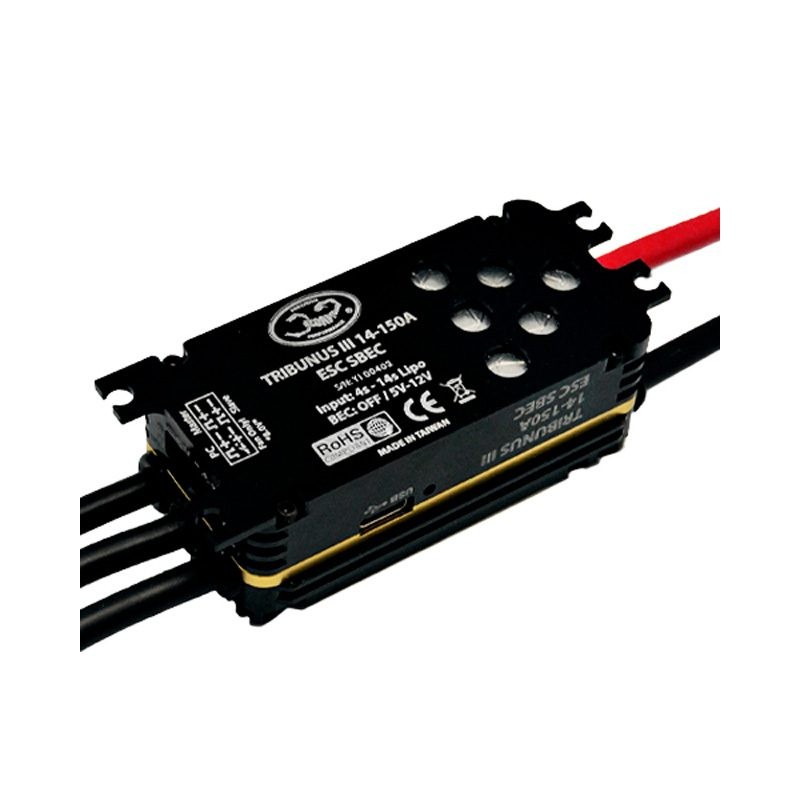

Scorpion Tribunus III 14-150A ESC SBEC

The Scorpion Tribunus III 14-150A ESC SBEC is a high-performance electronic speed controller designed for advanced RC aircraft and industrial UAV applications. Built using premium Western components and manufactured in Taiwan, this next-generation ESC combines Scorpions proprietary hardware design with a unique motor control algorithm to deliver unmatched reliability, safety, and efficiency. It features a powerful, programmable SBEC capable of supplying 15A continuous and up to 30A peak at adjustable voltages between 5.1V and 12.1V, ensuring stable power for onboard electronics. Supporting up to 14S LiPo batteries (1261V), and capable of handling 150A continuous and 200A peak current, it is ideal for demanding high-power setups. A temperature-controlled fan system provides efficient cooling only when needed, reducing noise and wear. With its compact size, low internal resistance (0.6m x2), adjustable drive frequency (8kHz32kHz), and USB connectivity for easy configuration, the Tribunus III 14-150A sets a new benchmark for intelligent ESC performance in both hobby and professional applications.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. 150A continuous and 200A peak current handling for high-performance applications
2. Wide input voltage range of 12V to 61.0V (up to 14S LiPo)
3. Programmable SBEC with adjustable output from 5.1V to 12.1V
4. SBEC delivers 15A continuous and 30A peak current for onboard systems
5. Optional temperature-controlled dual 30mm cooling fan for efficient thermal management
6. Ultra-low internal resistance of 0.6m x 2 for maximum efficiency
7. Compact design: 40.0 x 77.1 x 29.9 mm; weight: 148g (without wires), 218g (with wires)
8. Adjustable drive frequency from 8kHz to 32kHz for optimized motor performance
9. USB port for easy firmware updates and configuration via PC

Package Includes:

1 x Tribunus III ESC

2 x BEC Cables

1 x Mounting Hardware Pack

1 x BEC Voltage Stabilizing Capacitor
