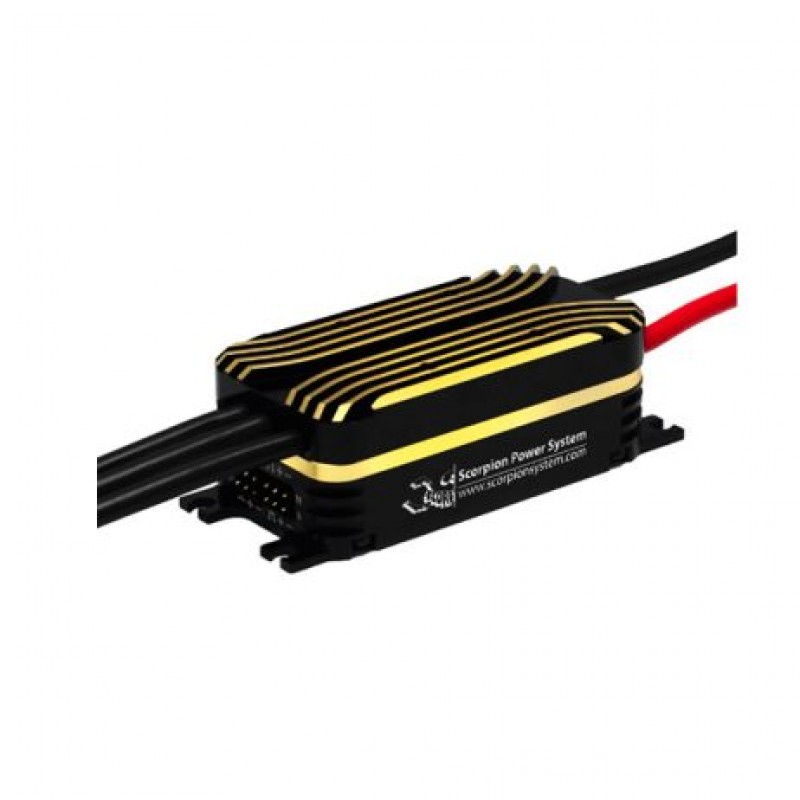

Scorpion Tribunus III 06-160A ESC SBEC

The Scorpion Tribunus III 06-160A ESC SBEC is a high-performance electronic speed controller designed for hobby aircraft and industrial UAVs. Made with Western components and manufactured in Taiwan, it features an advanced motor control algorithm, improved heat dissipation, and an integrated high-power BEC (15A continuous, 30A peak). The ESC offers adjustable voltage (5V-12V), real-time telemetry, and supports multiple protocols like Mikado VBAR, Futaba SBUS, and JETI EXBUS. Its durable design includes enclosed capacitors, easy mounting, and a temperature-controlled fan for optimal cooling. With a max continuous current of 160A and a peak of 200A, it delivers reliable performance and safety for demanding applications.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. High Power Output: 160A continuous, 200A peak current handling
2. Wide Voltage Range: Supports 11V to 26.1V (3S to 6S LiPo)
3. Advanced BEC: Adjustable 5.1V to 12.1V, 15A continuous, 30A peak
4. Real-Time Telemetry: Supports Mikado VBAR, Futaba SBUS, JETI EXBUS, and others
5. Data Logging: Logs current, voltage, temperature, RPM, power output, and more
6. Temperature-Controlled Fan: Cools only when needed to reduce noise
7. Improved Heat Dissipation: Efficient cooling for extended operation
8. Enclosed Capacitors: Enhanced durability and protection
9. Integrated Mounting Tabs: Easy and secure installation
10. Stylish Design: 2-tone anodized aluminum casing

Packaged Includes:

1 x Scorpion Tribunus III 06-160A ESC SBEC

1 x 30mm Cooling Fan

2 x BEC Cables

1 x Mounting Hardware Pack
