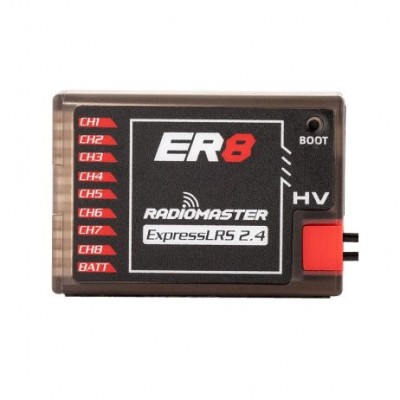

Radiomaster ER8 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The Radiomaster ER8 receiver has been specially designed for fixed-wing users. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.

Features:

1. Based on the Revolutionary ExpressLRS System
2. High performance, high reliability, flexible configuration, fast response speed and ultra-long range
3. Support 8 PWM Channels
4. Optimized ground up PCB design
5. Automatically voltage telemetry of external battery voltage or built-in receiver voltage
6. Supports Wi-Fi updates and WEBUI configuration
7. High quality 2.54 mm connector
8. Standard 20 cm High Sensitivity Antenna
9. Reserve 4pin CRSF input port
10. Shell adopts one-piece molding process with high structural strength
11. For fixed-wing aircraft and more
12. Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Package Includes:

1 x ER8 2.4GHz ELRS PWM Receiver
1 x Voltage telemetry wire (Type-B)
1 x CRSF wire
1 x ELRS- RX- SBUS wire
1 x User Card
