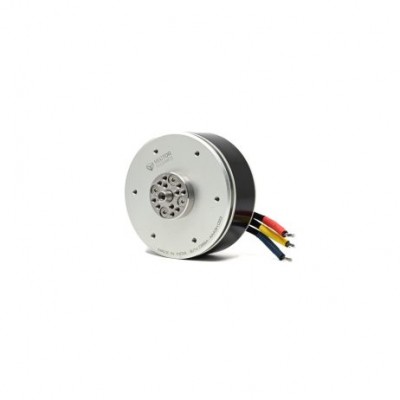

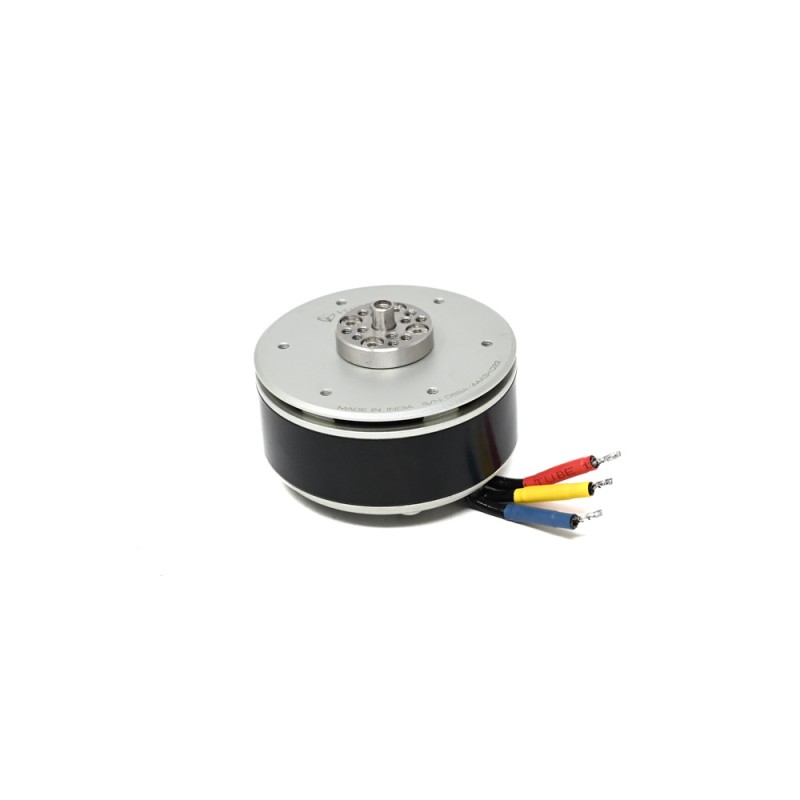

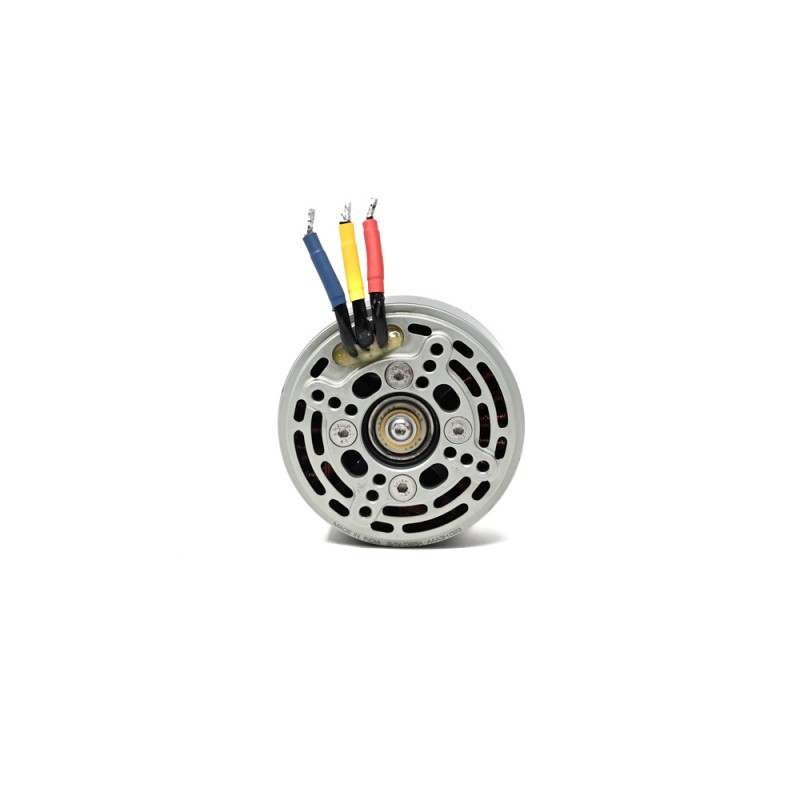

Vector 6015 -170Kv Motor

This high-performance motor features a Kv of 170 RPM/V and a Kt of 0.072 Nm/A at 5184 rpm. It supports a maximum continuous current of 35 A for 180 seconds and delivers a continuous power of 1634 W within the same duration. With a power density of 4.3 W/g (rated) and 7.02 W/g (maximum), the motor operates within a voltage range of 44V to 52V (12S LiHV).

Features:

1. High-efficiency motor with 170 RPM/V Kv rating
2. Torque constant of 0.072 Nm/A at 5184 rpm
3. Supports 35 A maximum continuous current for 180 seconds
4. Delivers 1634 W maximum continuous power for 180 seconds
5. Operates in a 44V to 52V (12S LiHV) voltage range
6. Durable design with a weight of 380g

Package Includes:

1 x Vector 6015 -170Kv Motor
