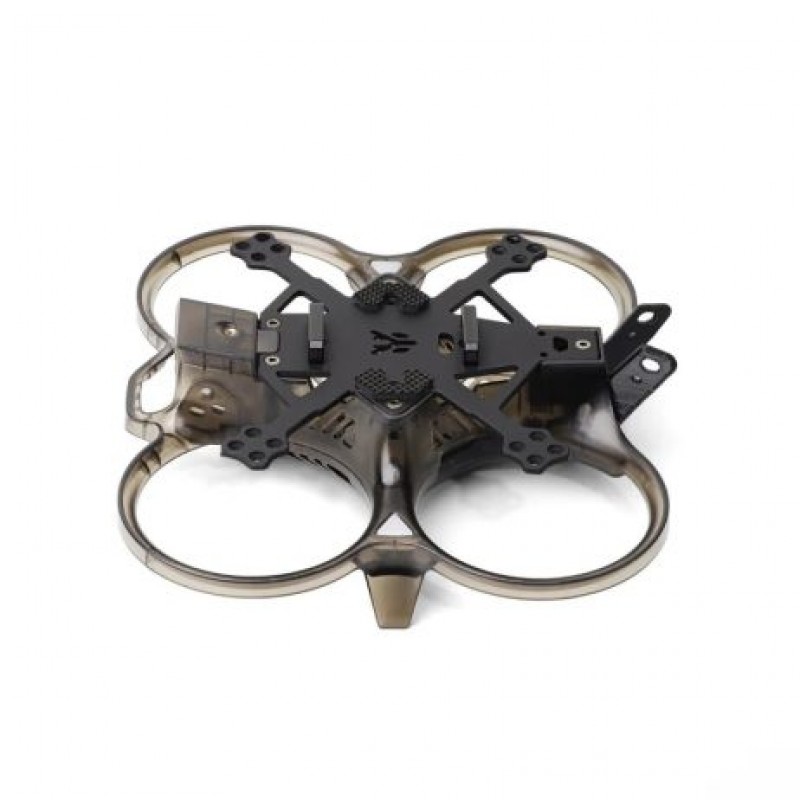

2-inch Talon frame Black for cinewhoop

The 2-inch Talon Frame set is on the market, a new one-piece modular design 2-inch drone, the fuselage shell adopts multi-color open mold injection molding parts to create a colorful and novel visual effect, lightweight and smooth fuselage body, and comprehensively improve the flight texture!

Features:

1. Fully open mold injection molding parts, the fuselage is fully wrapped and integrated;
2. Lightweight and smooth fuselage body, feel the light and smooth flight experience;
3. New modular design, the image transmission system, power system, and frame shell are completely independent, the bare machine is clear, making assembly more convenient;
4. It has 25.5*25.5mm and 20*20mm fixed positions for the image transmission system, compatible with the installation of a variety of high-definition and analog image transmission systems;
5. CNC metal heat sink, no fear of high temperature of image transmission;
6. Comes with a special silicone shock-absorbing pad for 19mm and 20mm cameras, which makes the filming more stable;
7. Can carry a naked Gopro, and shoot better;
8. Flight control installation hole: 25.5mm*25.5mm
9. Motor installation hole: 9mm*9mm
10. Image transmission installation hole: 20mm*20mm, 25.5mm*25.5mm
11. External dimensions: 150mm*170mm
12. Applicable propeller blade diameter: 2 inches

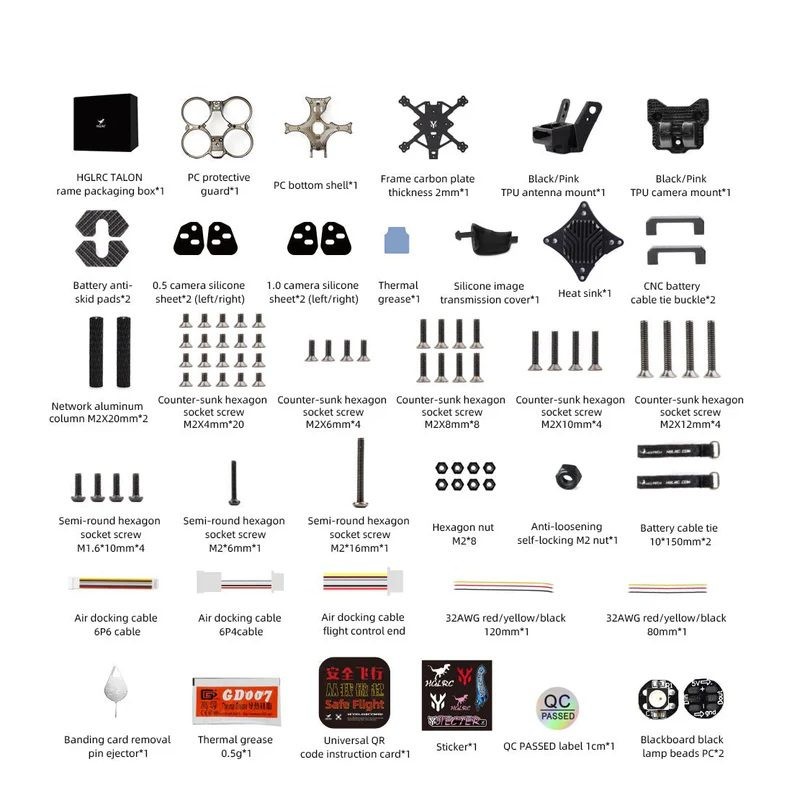

Package Includes:

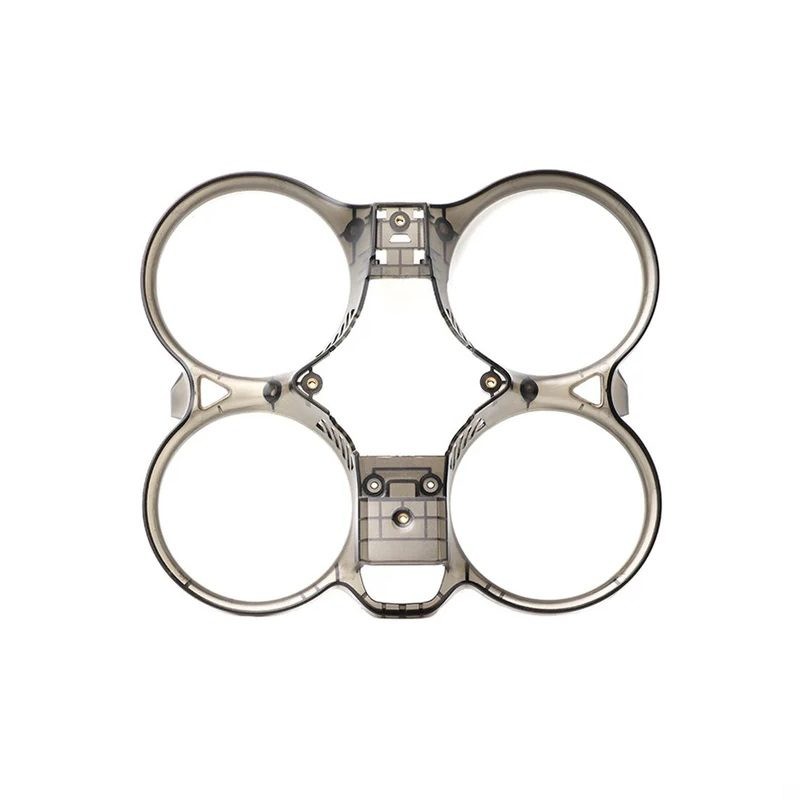

1 x Protective guard
1 x Bottom shell
1 x Frame carbon plate
1 x Silicone image transmission cover
2 x CNC battery tie buckle
1 x Antenna mount
1 x Camera mount
2 x LED (pre-installed on the guard)
2 x Battery anti-skid pad
2 x 0.5mm camera silicone sheet
1 x 1.0mm camera silicone sheet
1 x Thermal grease (for HD)
1 x Thermal grease sheet (for Zeus 800mw image transmission)
2 x Net-shaped aluminum column M2X20
20 x Counter-sunk hexagon socket M2X4
4 x Counter-sunk hexagon socket M2X6
8 x Counter-sunk hexagon socket M2X8
4 x Counter-sunk hexagon socket M2X10
4 x Counter-sunk hexagon socket M2X12
4 x Semi-circular hexagon socket M1.6X10
6 x Semi-circular hexagon socket M2X6
1 x Semi-circular hexagon socket M2X16
1 x Anti-loosening self-locking M2 nut
8 x Hexagon M2 black nylon nut
2 x Battery tie 10X150mm
1 x Air docking cable 6P6 line
1 x Air docking cable 6P4 line
1 x Air docking cable flight control end
1 x Frequency matching and card removal pin ejector
1 x 32AWG red 120mm
1 x 32AWG yellow 120mm
1 x 32AWG black 120mm
1 x 32AWG red 80mm
1 x 32AWG yellow 80mm
1 x 32AWG black 80mm
