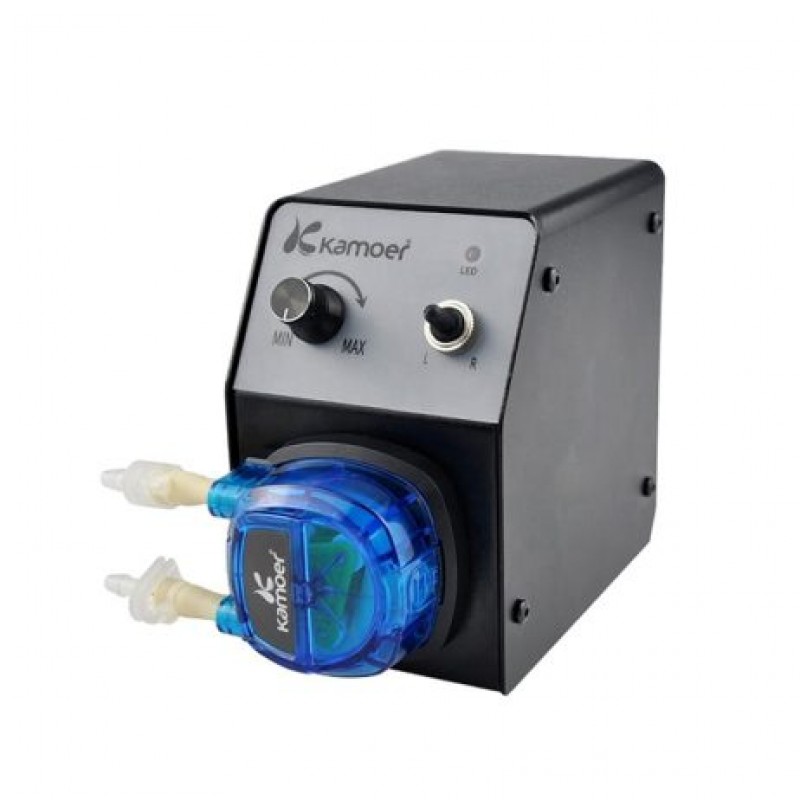

KCP PRO2-N40 Kamoer Lab Pump 12V

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squish a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 360ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability

7. Working conditions: Temperature 0~40, humidity <80%

8. Pump tube selection: Silicone tube, imported Norprene tube

9. Transmission mode: Planetary gear transmission, reduction ratio 1:8

10. Pump head: The upper cover is made of engineering plastics, the pump body

11. PA and gears are made of synthetic engineering plastics

12. Installation method: Straight plate and L plate
13. Motor life: about 1000 hours
14. Tube Size: 2.45.6mm
15. Voltage: 24V
16. Net size L139 x W79 x H110
17. Positive pressure: 0.15Mpa
18. Negative pressure: -0.09kpa
19. Weight About 765g (with power supply
20. Working conditions: ambient temperature 0 40C
21. Material: Norprene Food process tube for critical processing applications in the food, dairy and cosmetic industries. Compatible with virtually all commercial cleaners and sanitisers. Great resistance to general chemicals, acid, alkali and oxidizing agents, working temperature 59-135

Application:

1. Experiment
2. Filling packaging
3. Laboratory
4. Research institutes
5. Food industry

Package Includes:

1 x KCP PRO2-N19 Kamoer Lab Pump
