Arducam CSI to HDMI Cable Extension Module with 15pin 60mm FPC Cable for Raspberry Pi Camera V3/V1/V2/HQ (Pack of 2, 1 Set)

A CSI-to-HDMI adapter set for you to break the length limitations of the MIPI CSI-2 interface and put your Pi cameras up to 3~5 meters away from an RPI.

The kit works out of the box with any of the following cameras:

• Official camera module V1/V2/V3/HQ
• Arducam OV5647/IMX219/IMX477 Series
• Arducam 16MP Series
• Arducam 64MP Series
• Arducam Jetson Camera Series
  No extra software/configuration is needed.

Features:

1. Support NVIDIA Jetson and Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+, Pi Zero
2. Supported for Raspberry Pi Camera Module 3(12MP IMX708), Raspberry Pi HQ Camera (12MP IMX477),
3. Raspberry Pi camera V1 (5MP OV5647) and raspberry pi camera V2 (8MP IMX219)
4. No extra software/configuration is needed.

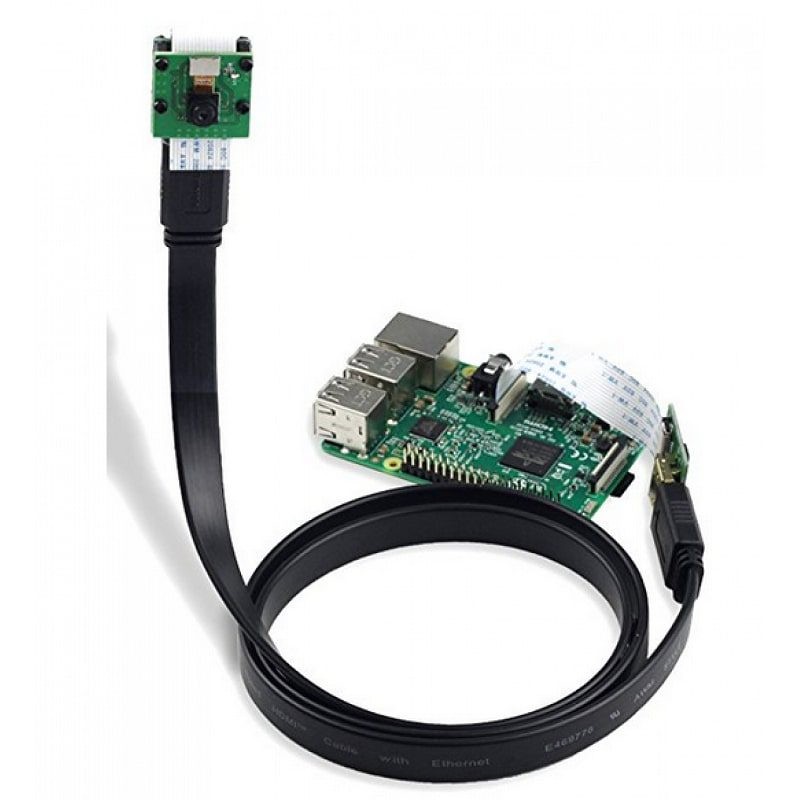

5. HDMI cables can be up to 3~5 meters.

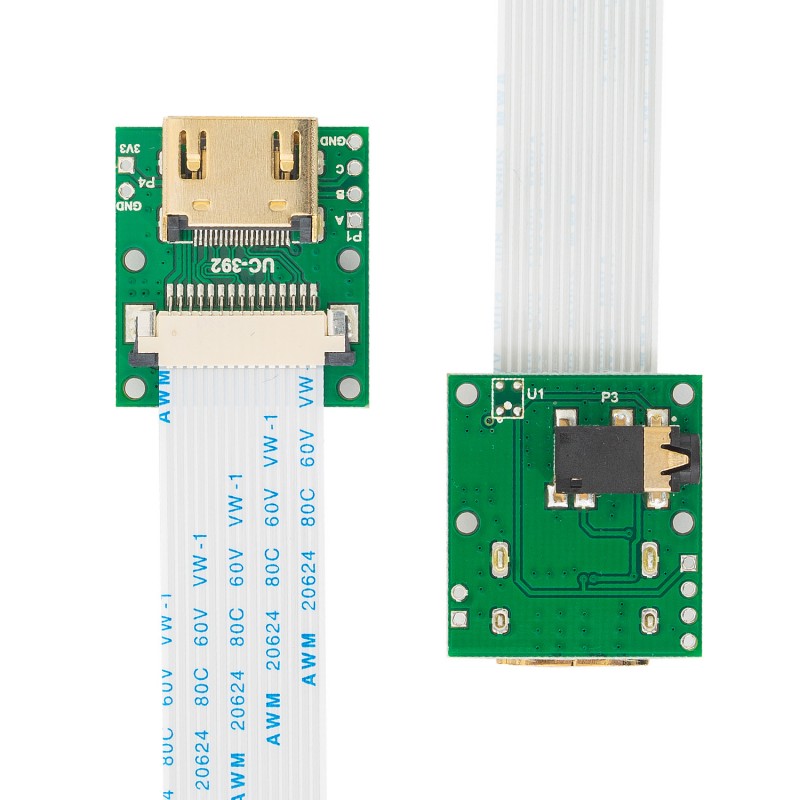

6. Reserved microphone and headphone jack for audio or GPIO signals
7. Three additional solder pads are available (same signals as a headphone jack)
8. Reliability: Way more durable than FPC cables when it is folded or twisted or under negative environmental factors such as moisture, humidity, and temperature changes.
9. Size: 27.63 x 25.00mm

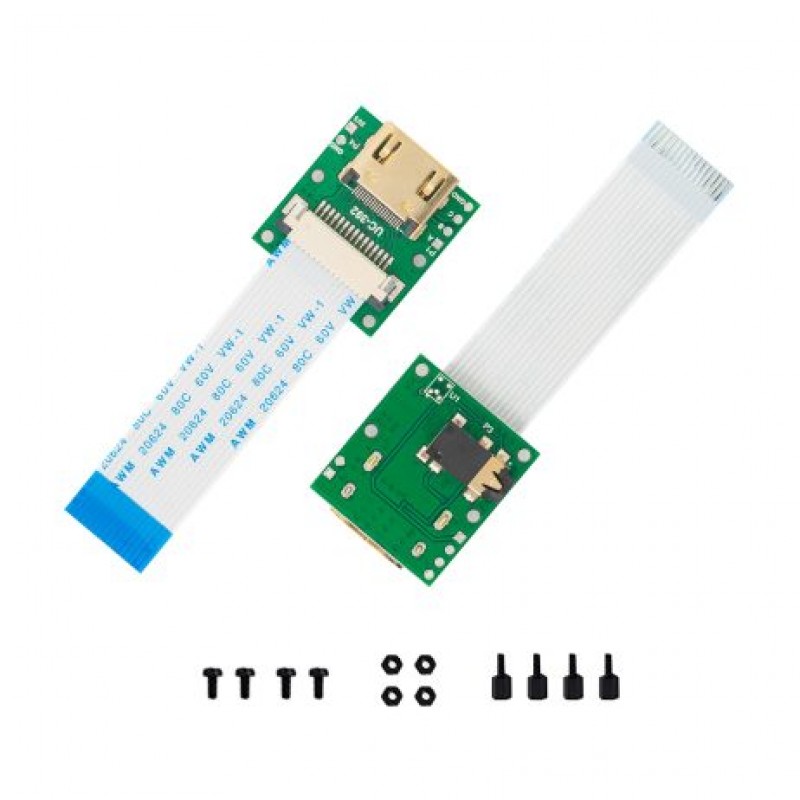

Package Includes:

2 x Arducam CSI to HDMI Cable Extension Module

2 x 60mm 15pin FPC cable

4 x Sets M2 screw
