E3D Prusa i3 V6 Upgrade Kit Fully Assembled (Including Motor)

This kit allows you to upgrade Prusa i3 type machines to full E3D extrusion, with our in-house tested and approved Prusa Upgrade Kit. Featuring the E3D V6 hot-end, and our new Titan extruder, on a lightweight and very easy to mount carriage.

Your Prusa upgrade printhead comes with the new standard thermistor from E3D and the new thermistor-compatible heater block, making the E3D ecosystem even more accessible than before, with easy change-overs for a range of printing methods.

Josef Prusa chose E3D as the new hot-end of choice in late 2015 and ships Lite6 with the Original Prusa i3 kit. Full V6 is the drop incompatible and can be purchased, pre-compiled firmware for Full V6 isavailable for download. Titan requires user modification of stock firmware settings.

The assembled kit is ready-to-install printhead.

The printhead is designed to fit onto any combination of standard bearings on the Prusa i3 X-axis rods.

• Requirements are that your machine has:

  1. 8mm Rods using LM8UU Bearings (or similar).

  2. 45mm Rod Spacing, ~15mm Belt Spacing.

  3. One bearing on the top rod, two on the bottom, or the other way around.

• The mounting bracket for this upgrade is similar in design to that of the standard V6-i3 upgrade kit. However, they are NOT interchangeable (see image gallery).

• We also have a variety of 3D Printers and accessories from the Brand CREALITY at the best price in INDIA, Click Here to explore.

Useful Link:

Prusa I3 with Titan + V6 Assembly Guide

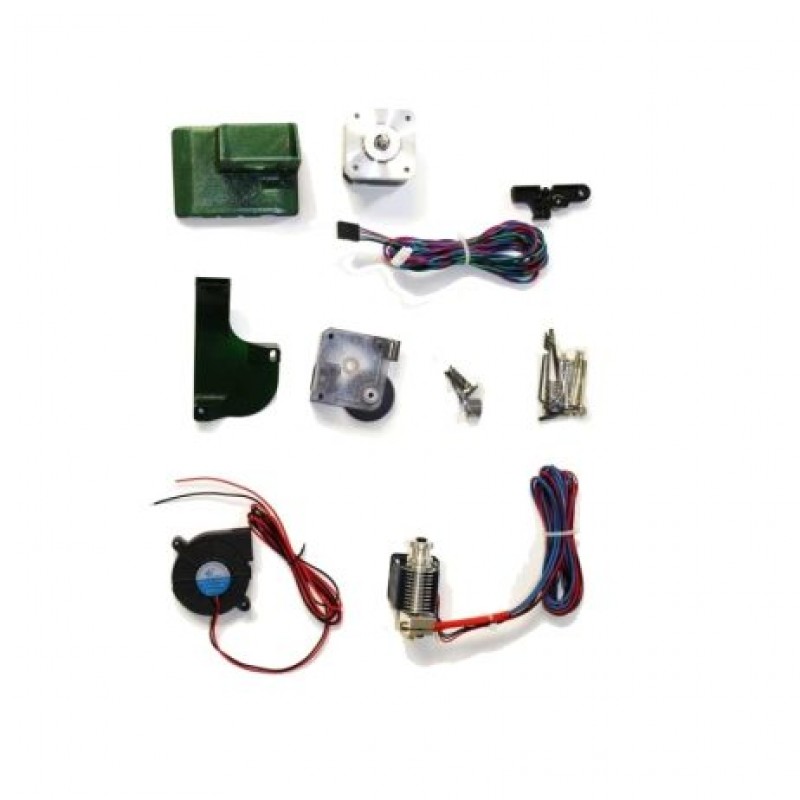

Package Includes:

1 x Titan Extruder

1 x E3D V6 hot-end 12v Direct (1.75mm by default), Prusa edition

1 x copolyester Printed X Carriage

1 x copolyester Printed Fan Mount

10 x 2.5mm Cable Ties

1 x 50mm 12V Radial Fan

2 x M3 x 40 Machine Screws

1 x NEMA17 Motor (Shaft 5mm D x 19mm Long)

1 x Assembly of Printhead
