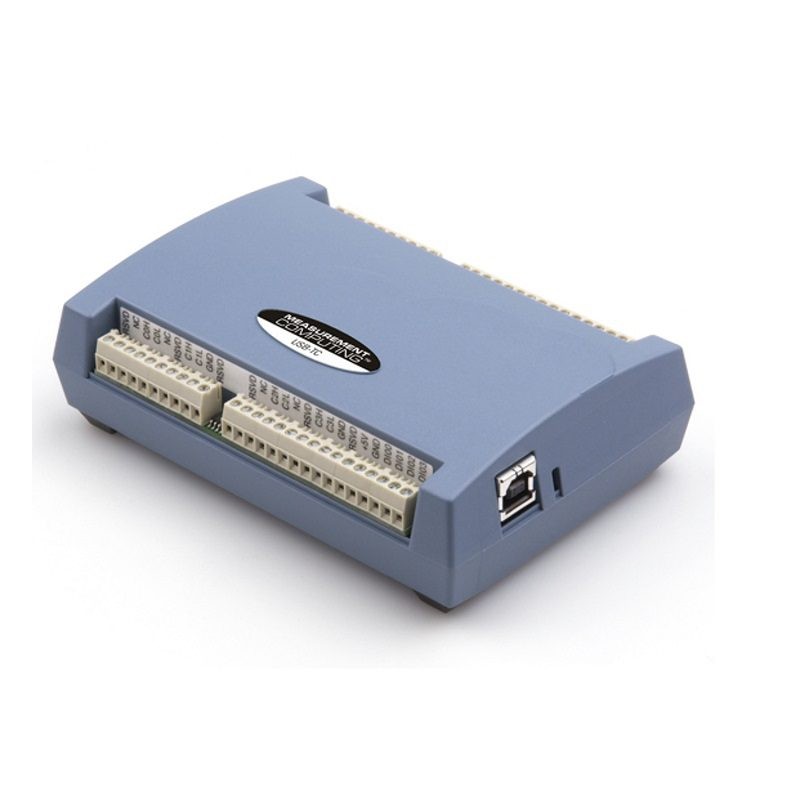

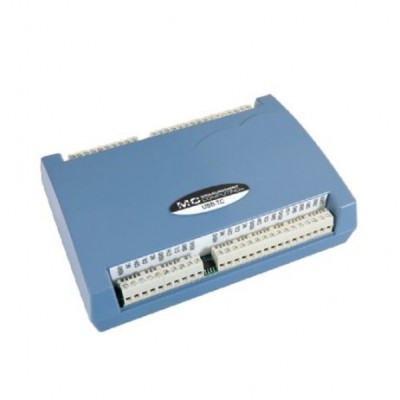

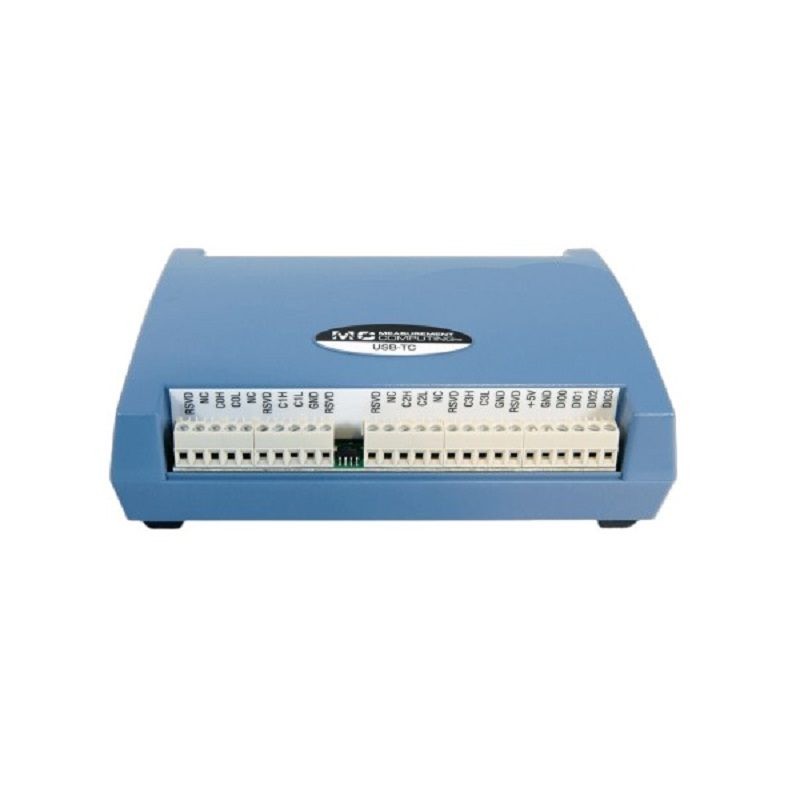

Digilent MCC USB-TEMP and TC Series: Temperature and Voltage Measurement USB DAQ Devices

measurement computing USB-2001-TC is a USB-based thermocouple measurement device. The USB-2001-TC is a USB device that takes measurements from type J, K, R, S, T, N, E, and B thermocouples. The thermocouple type is software programmable and stored on the device. A 20-bit ADC processes the data conversions. The USB-2001-TC is equipped with open thermocouple detection (OTD). With OTD, any open-circuit condition at the thermocouple sensor is detected by the software. An open channel is detected by driving the input voltage to a positive value outside the range of the thermocouple output. The software recognizes this as an invalid reading and returns the value OTD. Users can quickly connect a thermocouple to the USB-2001-TC with a standard miniature connector. This device is USB-powered and requires no external power.

Features:

1. Eight DIFF analog inputs
2. 24-bit resolution
3. USB-TC: Eight thermocouple inputs (types J, K, R, S, T, N, E, and B)
4. USB-TEMP: Eight temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor)
5. USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (10 V, 5 V, 0-10 V, 0-5 V input ranges)
6. 2 S/s/ch sample rate
7. Eight digital I/O
8. One counter input (USB-TEMP-AI only)
9. No external power required

Package Includes:

1 x USB-TC
1 x USB cable
1 x Printed insert: DAQami Quick Start
1 x MCC packaging assembly
