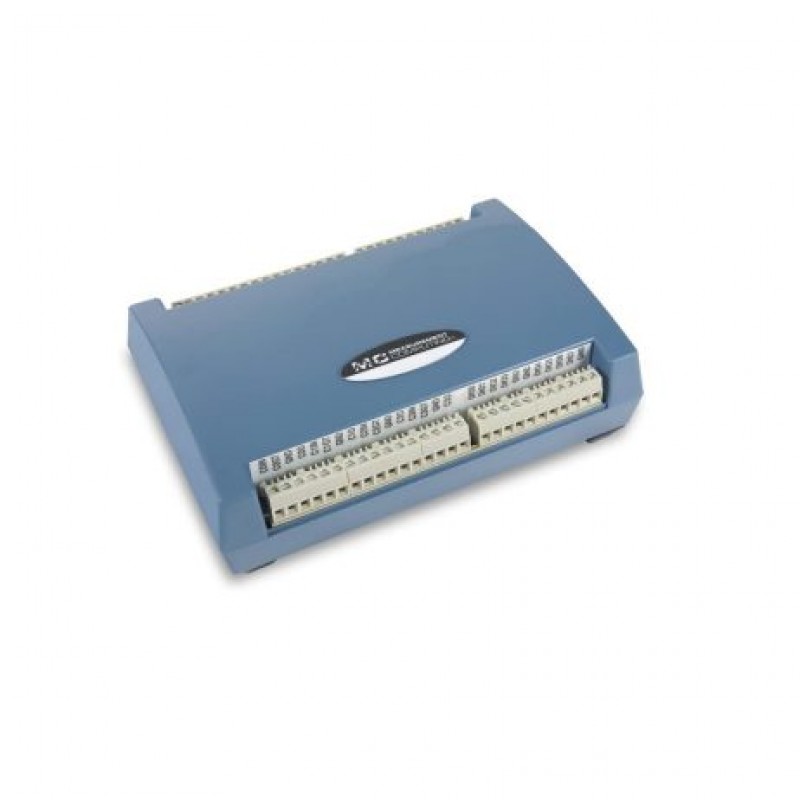

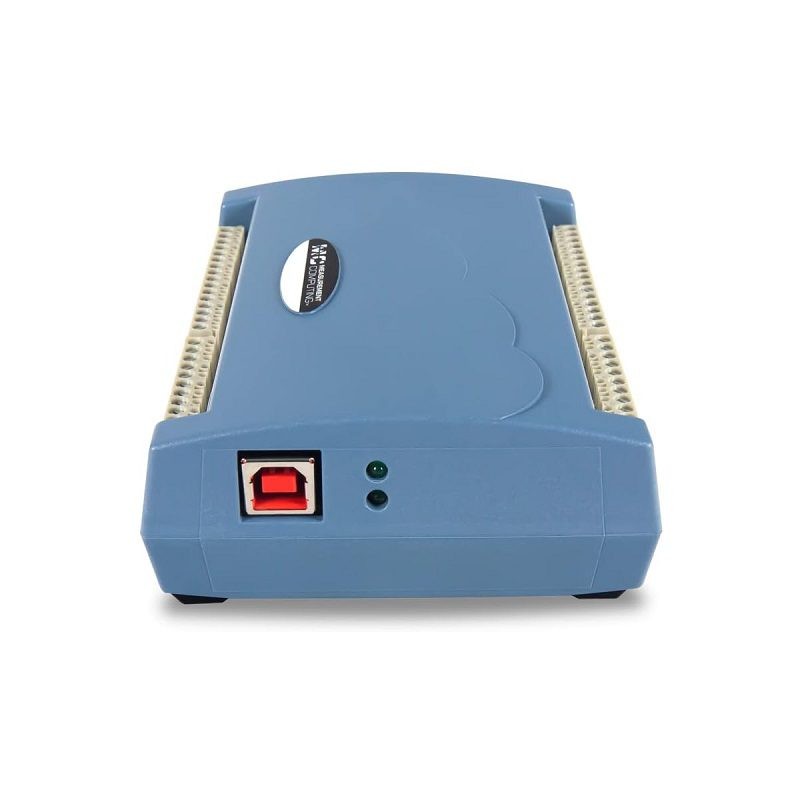

Digilent MCC USB-CTR04: High-Speed Counter / Timer USB Device with Four Counter I/O
- Product Code: EPI28140
- Availability: 1
-
Rs.48499.00
- (Excluding 18% GST)
OR
The Digilent MCC USB-CTR04: High-Speed Counter / Timer USB Device with Four Counter I/O feature 4 counter inputs, 48 MHz input frequency, up to 64-bit resolution, up to 8 MB/s scan rates, multiple counter modes, four pulse-width modulation (PWM) timers, and eight digital I/O.
Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
Digilent MCC USB-CTR04: High-Speed Counter supports Totalize, Period, Pulse width, and Timing counter input modes ,Four independent pulse-width modulation (PWM) timers, Synchronous high-speed reads of digital and counter inputs
Features:
- USB-CTR04: Four counter inputs
- 48 MHz maximum input frequency
- Software-selectable resolution up to 64-bits
- Aggregate scan rate of 8 MB/s
- Supports Totalize, Period, Pulse width, and Timing counter input modes
- Four independent pulse-width modulation (PWM) timers
- Eight bit-configurable digital I/O channels
- Synchronous high-speed reads of digital and counter inputs

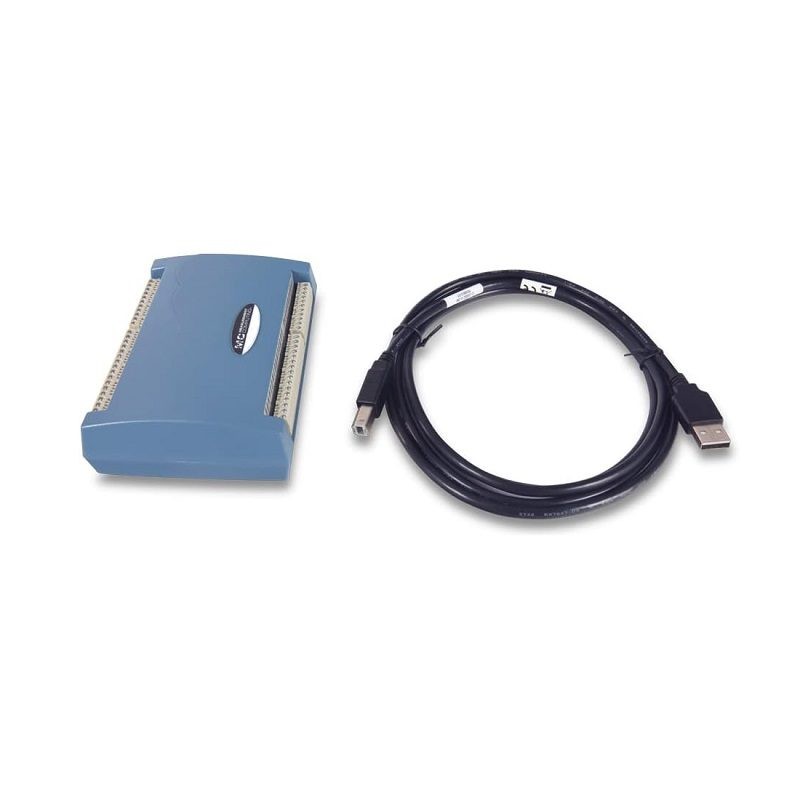

Package Includes:
1 x USB-CTR04 or USB-CTR08
1 x USB cable
1 x Printed insert: DAQami Quick Start
1 x MCC packaging assembly/foam
