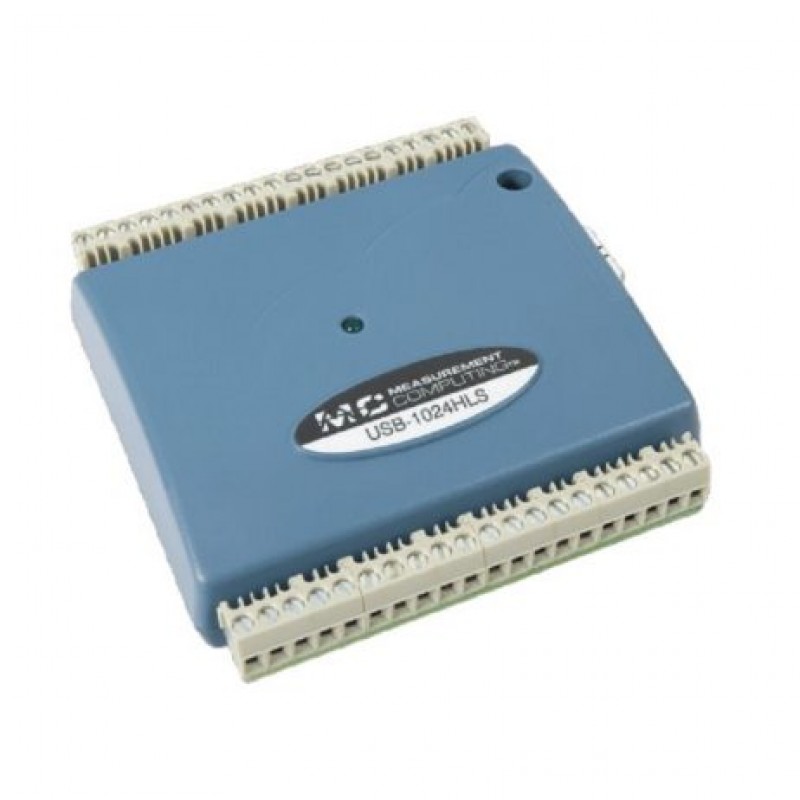

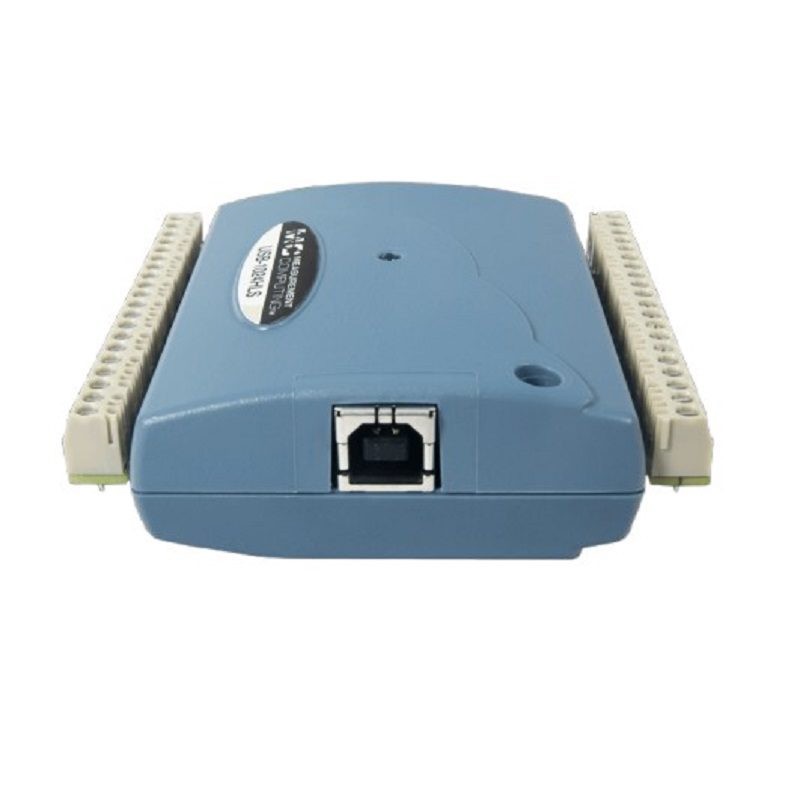

Digilent MCC USB-1024LS Series: 24 Channel Digital I/O USB Device with 24 Digital I/O

The USB-1024 Series adds 24 lines of logic-level digital I/O to any USB port. The USB-1024LS 24 Channel Digital I/O USB Device is a 24-channel high current digital I/O device with 5.5 V input voltage, up to 2.5 mA sink input/2.5 mA source output, and one 32-bit event counter, and can drive many logic level devices directly, eliminating the need for costly buffer circuitry.

Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic. NET, DASYLab, LabVIEW, Linux, MATLAB, and Python.

The Digilent MCC USB-1024LS Series: 24 Channel Digital I/O USB Device Series is a versatile 24-channel digital I/O USB device designed for high-performance digital signal processing. It features 24 digital input/output lines, allowing for efficient data acquisition and control tasks. Powered via USB, it offers a simple, plug-and-play solution for a wide range of applications, including automation, testing, and monitoring. Its compact design and reliable performance make it an excellent choice for both industrial and research environments.

Features:

1. 24 channels
2. 2.5 mA sink input/2.5 mA source output (USB-1024LS)
3. One 32-bit counter input
4. No external power required

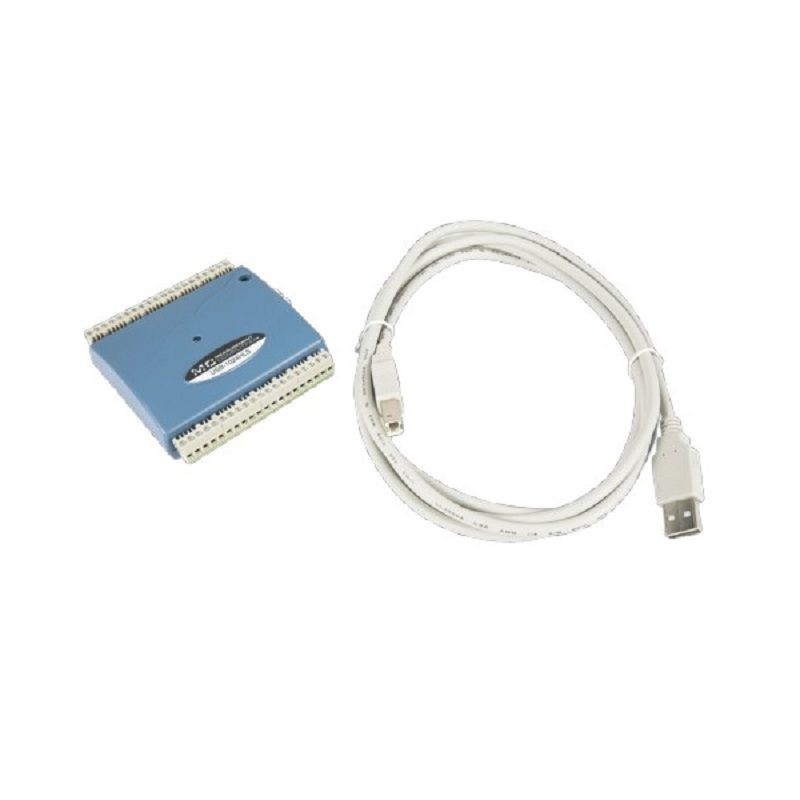

Package Includes:

1 x USB-1024LS
1 x USB cable
1 x Printed insert: DAQami Quick Start
1 x MCC packaging assembly/foam
