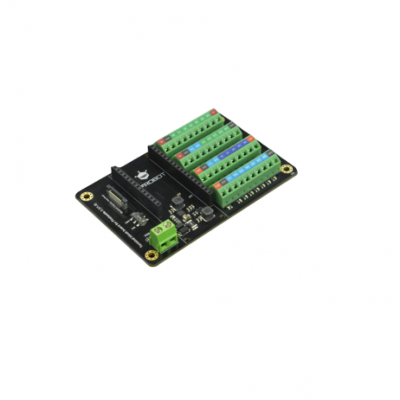

DFRobot Terminal Block Board for FireBeetle 2 ESP32-E IoT Microcontroller
- Product Code: EPI27649
- Availability: 2
-
Rs.1735.00
- (Excluding 18% GST)
OR
This expansion shield for fire beetle is just right for makers who love using terminal blocks for wiring up their projects!
Compared with the previous FireBeetle shields, it comes with additional 7-24V external voltage input and GDI port and adopts terminal blocks to secure wires so as to make connections more stable and reliable. Each terminal block (except GND) has an LED for status indication. Since these LEDs also consume power, which leads to higher power consumption, an LED switch is designed on the board to allow users to turn off the LED when not required.
Features:
- Terminal block, more stable and reliable connections
- All pins of the mainboard are broken out
- External Voltage Input: 7-24V
- GDI for connecting the display
- Clear colorful silkscreen
- Terminal block status indicator
- Terminal block status indicator switch
Package Includes:
1 x Terminal Block Board for FireBeetle 2 ESP32-E IoT Microcontroller
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
