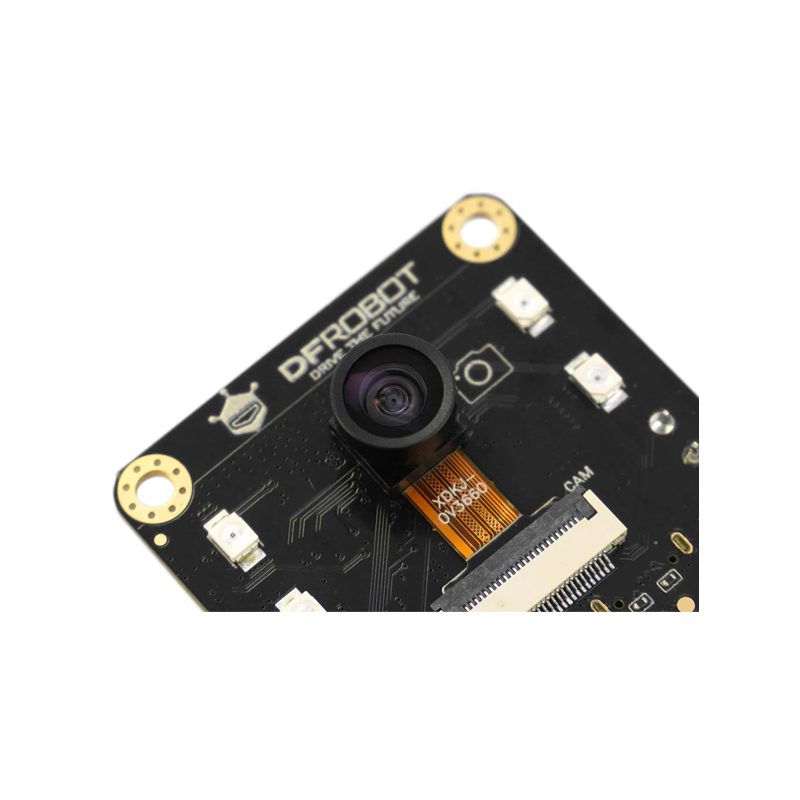

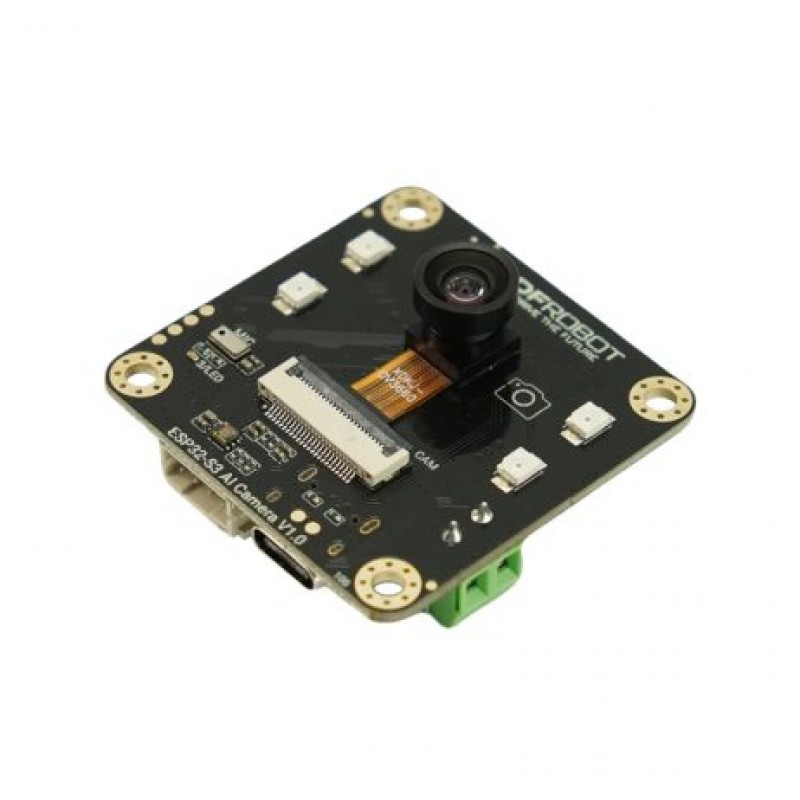

DFRobot ESP32-S3 AI Camera Module (Edge Image Recognition, Night Vision, ChatGPT Voice Interaction)

The ESP32-S3 AI Camera Module is a compact, intelligent camera module powered by the high-performance ESP32-S3 chip. Designed for edge AI, video processing, and voice interaction, it features a 160 wide-angle infrared camera, onboard microphone, speaker, and Wi-Fi/BLE connectivity. Supporting image recognition, voice commands, and night vision, its ideal for applications like smart surveillance, IoT automation, and AI-powered assistantsenabling powerful edge and cloud-based AI functions in a 4242mm form factor.

Features:

1. Edge AI Processing: Local inference with platforms like EdgeImpulse, YOLOv5, and OpenCV
2. Voice Control: Built-in mic, amplifier, and speaker for ASR and voice dialogue
3. Night Vision: 160 wide-angle IR camera with ambient light sensor
4. Wireless Connectivity: Wi-Fi (802.11b/g/n) and BLE 5 support
5. Cloud AI Integration: ChatGPT-powered interaction and model execution
6. Developer-Friendly: Rich tutorials, example code, and hardware expansion options
7. Camera Specifications.

Camera Specifications

1. Sensor Model: OV3660
2. Pixel: 2 Megapixels
3. Sensitivity: Visible light, 940nm infrared
4. Field of View: 160
5. Aperture: 2.0
6. Distortion: <8%

Interface:

1. USB Type-C

2. Wi-Fi (802.11b/g/n)

3. Bluetooth 5

4. UART (GPIO43/44)

5. I2S (Audio)

6. SD Card Slot

Applications:

1. Surveillance cameras
2. Electronic peephole
3. AI assistant robots
4. Time-lapse camera

Package Includes:

1 x ESP32-S3 AI CAM development board (with camera)
1 x Speaker
1 x Gravity-4P I2C/UART sensor connection cable
