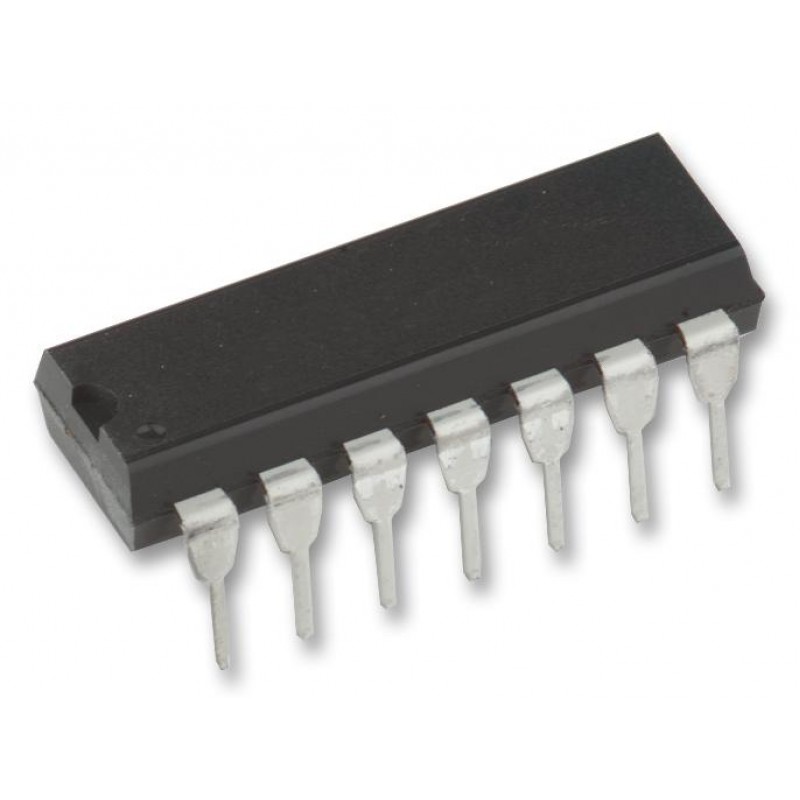

CD4069 Hex Inverter IC DIP-14 Package
- Product Code: EPI6649
- Availability: 2025
-
Rs.12.00
- (Excluding 18% GST)
OR
The CD4069 device consist of six CMOS inverter circuits. These devices are intended for all general-purpose inverter applications where the medium-power TTL-drive and logic-level-conversion capabilities of circuits such as the CD4009 and CD4049 hex inverter and buffers are not required.
Features:-
- Standardized symmetrical output characteristics
- Medium speed operation: tPHL, tPLH = 30 ns at 10 V (Typical)
- 100% Tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range, 100 nA at 18 V and 25°C
- Meets all requirements of JEDEC tentative standard No. 13B, Standard Specifications for Description of B Series CMOS Devices
Specifications:-
| Parameter | Specification |
| Part number | CD4069UB |
| Technology Family | CD4000 |
| VCC (Min) (V) | 3 |
| VCC (Max) (V) | 18 |
| Channels (#) | 6 |
| Output type | Push-Pull |
| Input Type | Standard CMOS |
| ICC @ nom voltage (Max)(mA) | 30 |
| Features | Balanced outputs, Standard speed (tpd > 50ns), Input clamp diode Unbuffered |
| IOL (Max) (mA) | 6.8 |
| IOH (Max) (mA) | -6.8 |
| Rating | See Data Sheet |
| Data Rate | 24 |
| Package Group | PDIP|14 |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 16.52 (Inclusive of all Taxes) |
