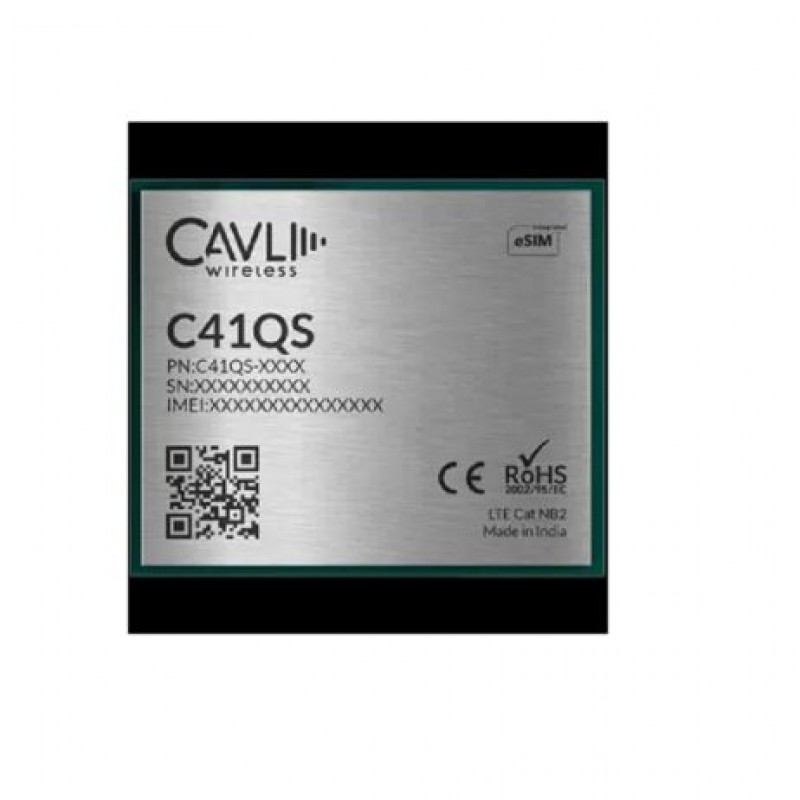

Cavli Wireless C41QS NB-IoT Module

Cavli Wireless C41QS NB-IoT Module entrant in the all-new Narrow Band-Internet of Things (NB-IoT) platform, based on low power wide area networks (LPWAN) technology. The C41QS is a NB2/NB1 Module compatible with 3GPP E-UTRA Release 14 standards supporting a wide array of frequency bands, making it usable globally while providing leverageable low-power consumption. The module is designed in a compact form factor of 17.7mm x 15.8mm x 2.0mm, making it an ideal solution for applications where size is constrained. The module supports an optional integrated GNSS and integrated eSIM, enabling Global Connectivity and Device management features powered by Cavlis proprietary Hubble platform..

C41QS is ideal for applications that demand low space, low power consumption and aggressive pricing. It is suited for applications such as smart metering, smart parking, sensor and monitoring applications etc.

Features:

1. Supports global cellular bands for extensive coverage
2. Complies with LTE 3GPP E-UTRA Release 14 (Cat M1/NB1/NB2).
3. Integrated GPS/BeiDou location services.
4. Operates on FreeRTOS for efficient resource management.
5. Provides LTE Cat NB2 connectivity with peak speeds of 127 Kbps (DL) and 158.5 Kbps (UL).
6. Compact LGA package with dimensions of 17.7mm x 15.8mm x 2.0mm.
7. Multiple interface options including UART, GNSS_UART, USIM, SWD, ADC, SPI, GPIO, MAIN_ANT, and GNSS_ANT.

Package Includes:

1 x Cavli Wireless C41QS NB-IoT Module
