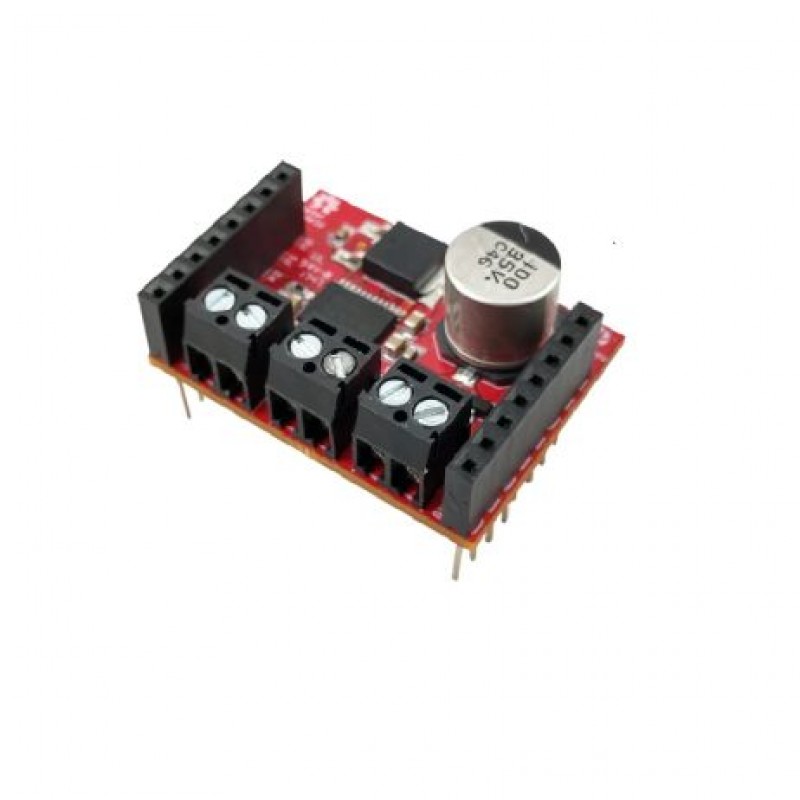

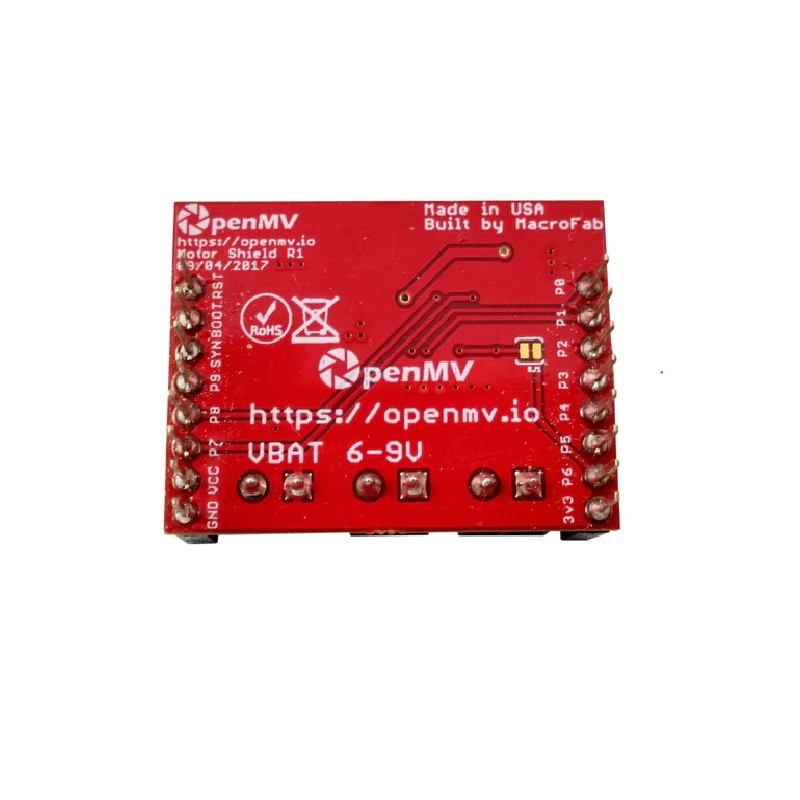

OpenMV Motor Shield

The motor shields provides a convenient way of powering your OpenMV Cam and controlling low-power motors in one package. It features a 5V linear regulator to power your OpenMV Cam from a battery along with a motor driver chip to power two less than 2A low-power motors from the same battery.

The motor driver chip has 2 pins per motor to set its internal H-Bridge direction for each motor and an additional pin per motor for PWM control. So, once you set your driving direction you just have to control the PWM per motor.

Applications:

1. Self-driving cars.
2. Controlling actuators

Features:

1. TB6612 driver.
2. Controls up to 2 DC motors.
3. Built-in thermal shutdown circuit.
4. Low voltage detecting circuit.
5. CW/CCW/short brake/stop function modes.
6. Low standby current.
7. Operating supply voltage range of 6 V to 9 V.

Package Includes:

1 x OpenMV Motor Shield
