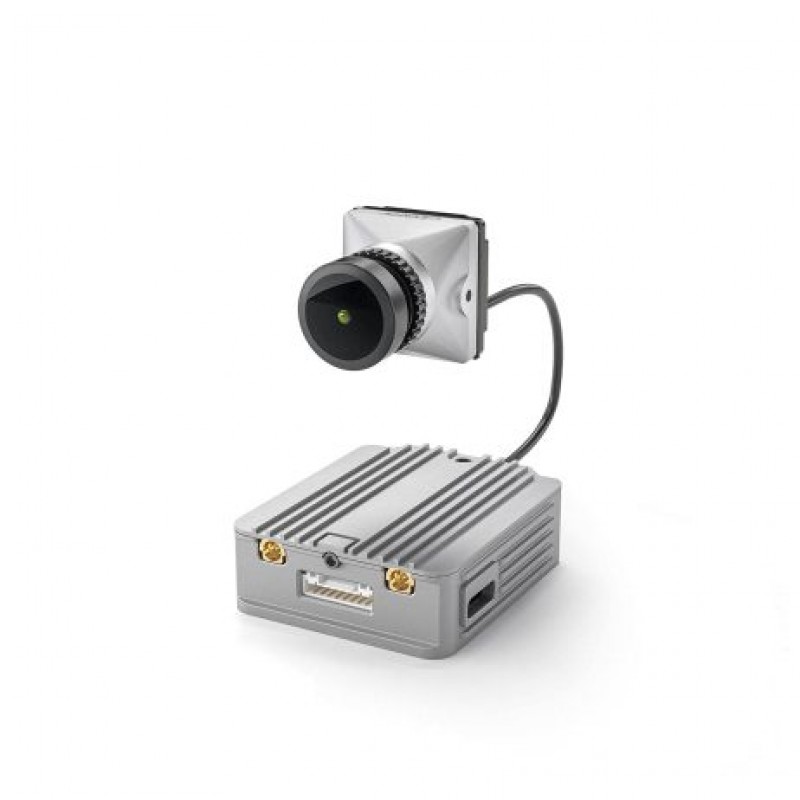

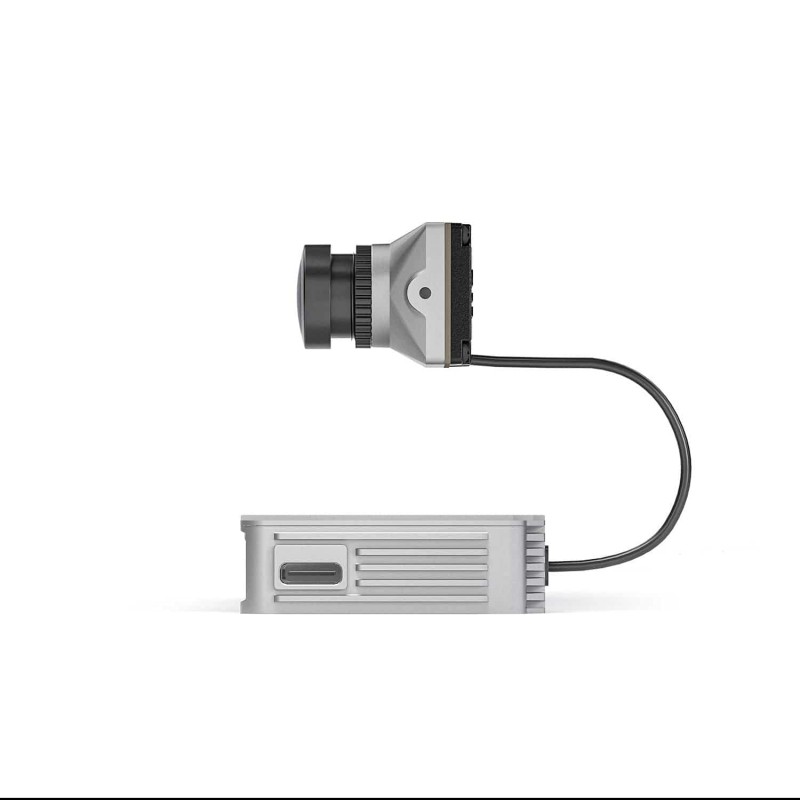

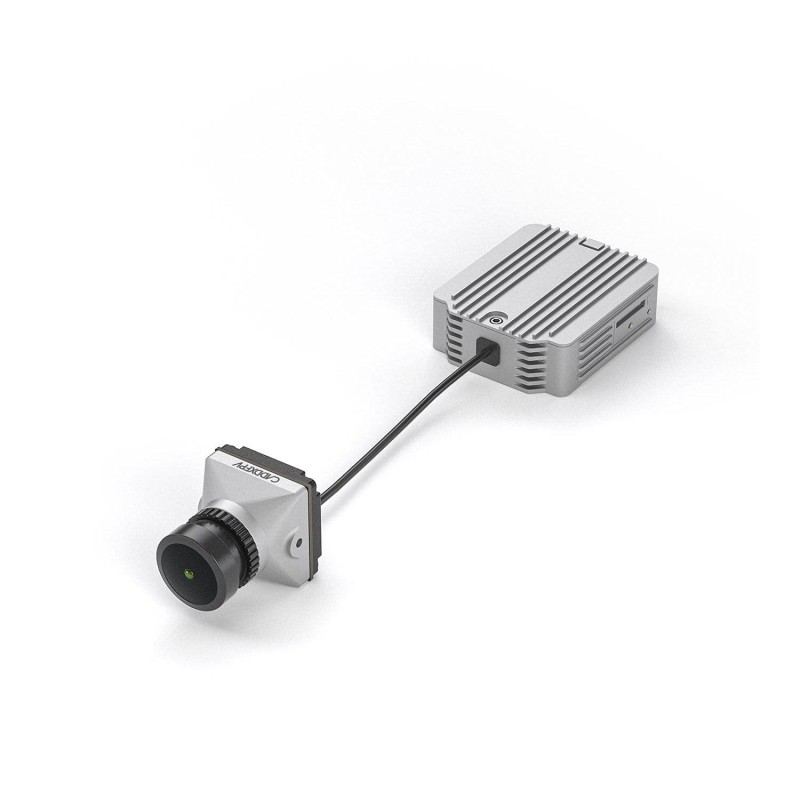

Caddx Air Unit Polar starlight Digital HD FPV system

The Caddx Polar Micro Air Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 120fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 28 ms. The air unit can be mounted on a racing drone and used withDJI FPV Gogglesor a remote controller totransmit video, control signals, and flight controller information wirelessly!

Features:

• Lightweight digital image transmission combination
• Stable and clear HD video
• 720p 120fps, 28ms/4km
• 8 channels, 8 drones

Specifications

• Transmitter Power(EIPP):FCC/SRRC: <30dBm;CE: <14dBm
• I/O Interface:USB-C,MMCX,3-in-1 port, micro SD card slot
• Operating Temperature Range:0to 40C32to 104F
• Max.Transmission Distance:FCC/SRRC:4km;CE:0.7km
• Image Sensor:1/1.8Inch 2.3Mega starlight sensor
• Polar air unit (Include camera) Weight: 42.6g
• Supported Flight Control System:BetaFlight
• Min.Latency(end-to-end):720p 60fps<32ms
• Video Format:MP4(Video format:H.264;
• Operating Frequency:5.725-5.850GHz
• Antenna Weight: 3.9g(MMCX elbow)
• FOV:162(D); 138(H); 75(V)
• Min. Illumination:0.00003Lux
• Air Unit: 4437.814.4mm
• Polar cam: 241919mm
• Input Power:7.4-17.6V
• Audio format: AAC-LC)
• Coaxial Cable: 110mm
• LENS:F/1.6 & 8Mega
• Aspect Ratio:16:9
• Antenna: 81mm

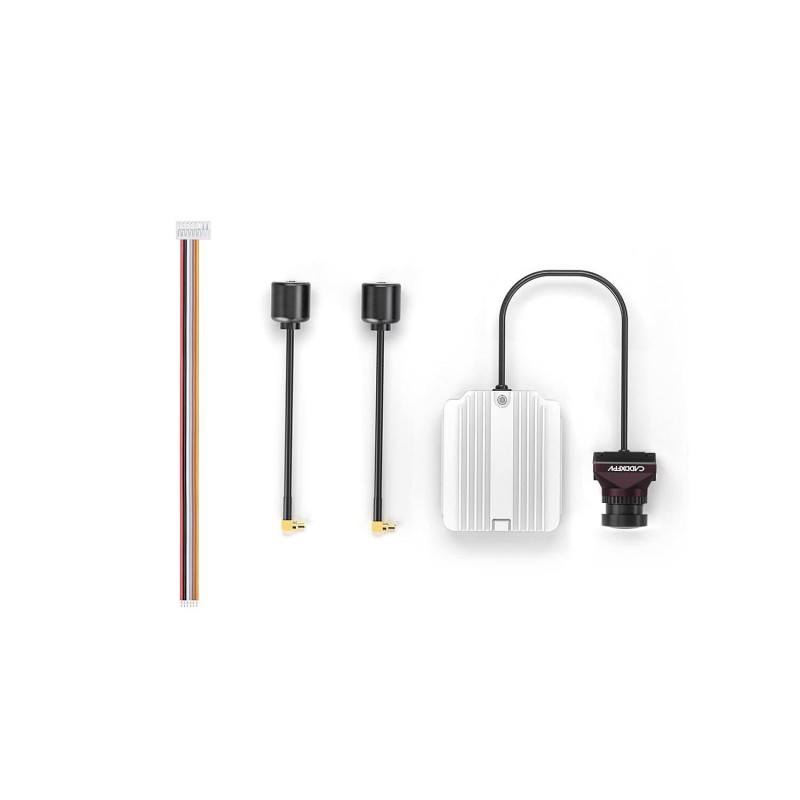

Package Includes:

1 x Caddx Air Unit Polar starlight Digital HD FPV system

6 x M2 Screws (3/4/5mm)

4 x Gasket Ring

1 x 3-in-1 Cable
