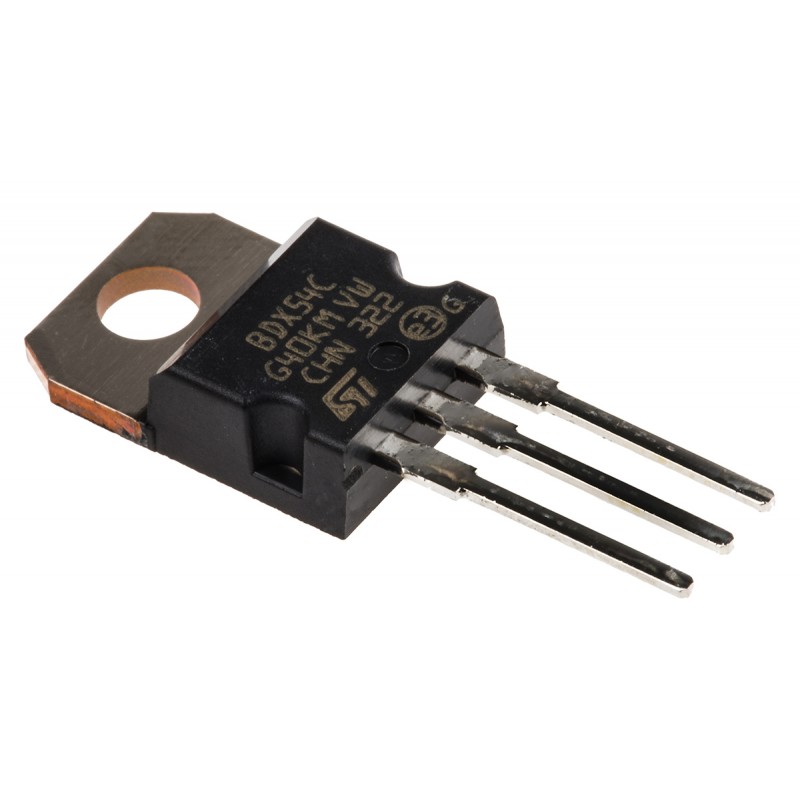

BDX54C PNP Power Darlington Transistor 100V 8A TO-220 Package
- Product Code: EPI5969
- Availability: 2334
-
Rs.20.00
- (Excluding 18% GST)
OR
BDX54C is a three layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 100V |
| Collector−Base Voltage (VCBO) | 100V |
| Continuous Collector Current (Ic) | 8A |
| Continuous Base Current (Ib) | 0.2mA |
| Operating Temperature Range | -65 - 150°C |
| Power Dissipation (Pd) | 60W |
| DC Current Gain (hFE) | 750 |
| Emitter-Base Voltage (VEBO) | 5V |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 23.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
