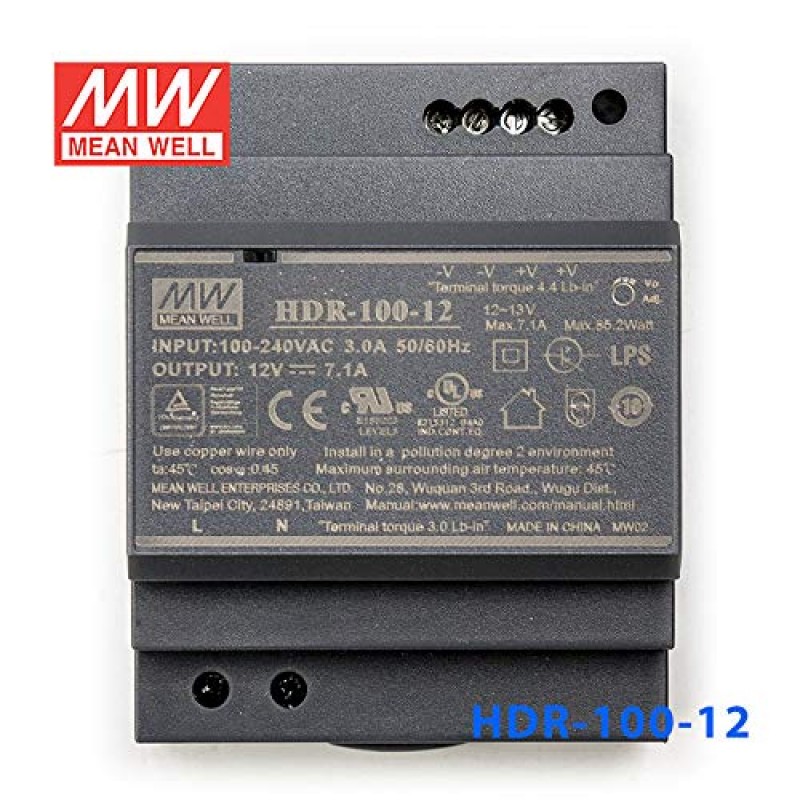

HDR-100-12 Mean well SMPS - 12V 7.1A 85.2W Din Rail Metal Power Supply

Product Code: EPI9848
Availability: Out Of Stock

0 reviews Write a review

Rs.2175.00
(Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

Key Specifications:-

Output Voltage 12V
Type DIN Rail Type
Approx. Wattage 85W
Features Standard,Voltage Adjustable
Series HDR (Ultra Slim)
Mechanical Form Enclosed
Warranty 3 Years Warranty
IP Level Non-Waterproof
Input Voltage 100-240V auto-select

Features:-

Ultra slim design with 70mm(4SU) width
Universal input 85~264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class Ⅱ
Pass LPS (Limited power source) for Blank type
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection ( working temperature :-30~+70℃)
DIN rail TS-35/7.5 or 15 mountable
Over voltage category Ⅲ
LED indicator for power on
3 years warranty

Specifications:-

AC input voltage range

85 ~ 2 64VAC( 277VAC operational ) 120 ~ 3 70 VDC( 390VDC operational )

AC inrush current (max.)

COLD START 35A/115VAC 70A/230VAC

Overload protection

HDR-100:102~110%rated output power;HDR-100-xxN:105~150%rated output power;Protection type:Constant current limiting,recovers automatically after fault condition is removed

Over voltage protection

12V:14.2~16.2V , 15V:18.8~22.5V,24V:30~36V,48V:56.5~64.8V Protection type:Shut down o/p voltage, re-power on to recover

Setup, rise, hold up time

500ms,60ms/230VAC/115VAC at full load; 30ms/230V AC 12ms/1 15V AC at full load

Withstand voltage

I/P-O/P:4KVAC

Working temperature

-30 ~ +70 °C(Refer to "Derating Curve")

Withstand voltage

3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute

Working temperature

-30~+70°C (refer to output derating curve)

Safety standards

UL60950-1,UL508,TUV EN61558-2-16,IEC60950-1,EAC TP TC 004,BSMI CNS14336-1 approved ;Design refer to TUV EN60950-1

EMC standards

EN55032 (CISPR32),CNS13438 Class B ;EN61000-3-2,3; EN61000-4-2,3,4,5,6,8,11

Dimension (LxWxH)

70×90×54.5mm


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
MRP	Rs. 2566.5 (Inclusive of all Taxes)
