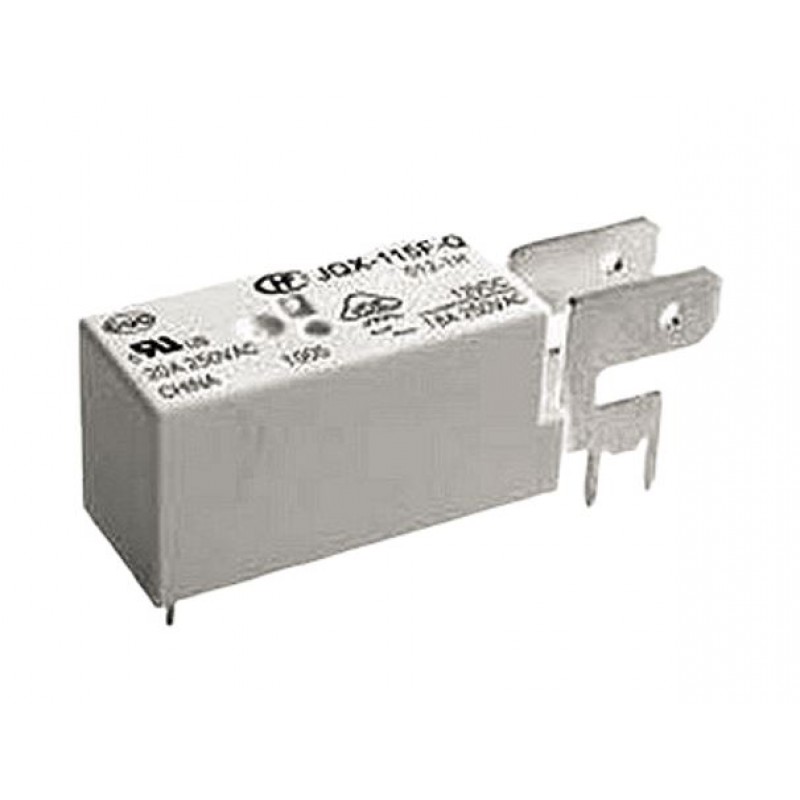

Hongfa 9V 16A DC JQX-115F-Q/009-1D 6-Pin SPST Power Relay with Metal Holder Attached
- Product Code: EPI10592
- Availability: 400
-
Rs.95.00
- (Excluding 18% GST)
OR
Hongfa 9V 16A DC JQX-115F-Q/009-1D 6-Pin SPST Power Relay with Metal Holder Attached
Features:
- Ambient temperature up to 125 °C
- 5kV dielectric strength (between coil and contacts)
- Low height: 15.7mm
- Creepage distance >8mm
- Meeting VDE 0700, 0631 reinforce insulation
- UL94, V-0 flammability class
- Product in accordance to IEC 60335-1 available
- Class F insulation
- Environmental friendly product (RoHS compliant)
- Outline Dimensions : (45.0 x 12.7 x 15.7) mm
Specifications:
- Type : JQX-115F-Q/009-1D
- Switching Current (A, Res. load) : 16A
- Contact arrangement : 1 Form A
- Contact material : AgSnO2
- Construction : Flux sealed
- Coil voltage : 9
- Creepage Distance : 8mm
- Coil Power : 0.4W
- Unit Weight : 16gm
Package Includes:
1 x Hongfa 9V 16A DC JQX-115F-Q/009-1D 6-Pin SPST Power Relay with Metal Holder Attached
