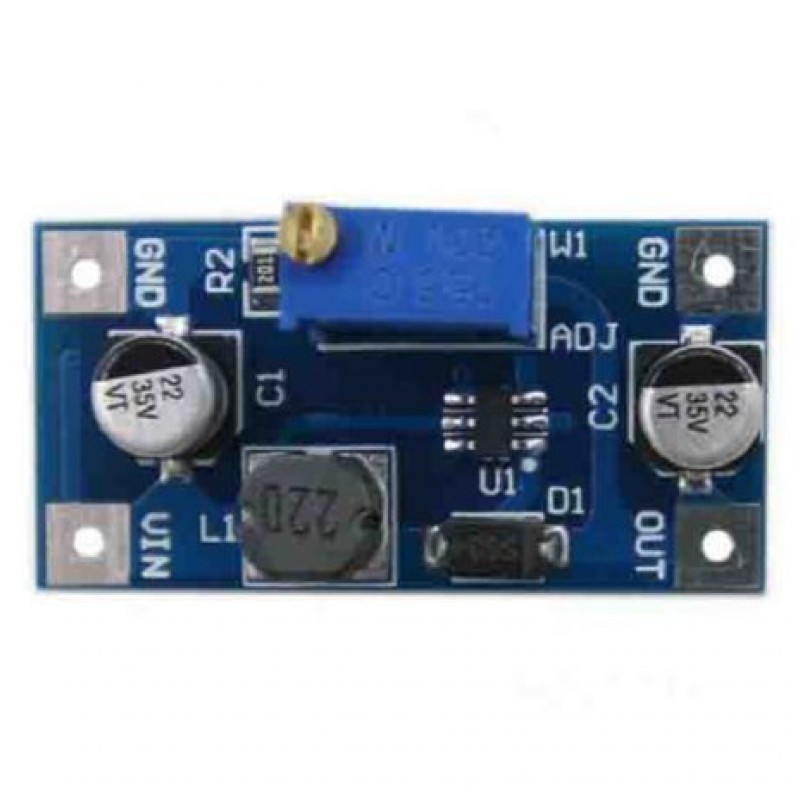

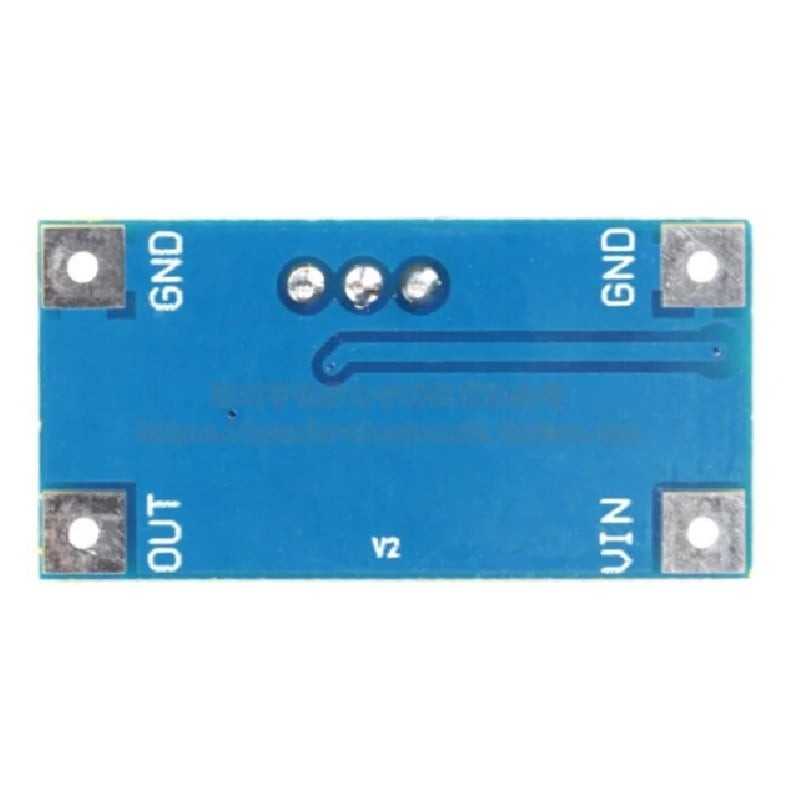

XH-M415 Micro Boost Module SX1308 Boost DC-DC Input 2-24 Output 3-28 Peak 2A

  • Product Code: EPI23737
  • Availability: 35

0 reviews Write a review

  • Rs.83.78

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The XH-M415 Micro Boost Module, powered by the SX1308 Boost DC-DC converter, accepts input voltages from 2-24V and delivers an output range of 3-28V with a peak current of 2A. Ideal for voltage-boosting applications, it provides efficient and reliable performance in a compact form factor.

Note: Please allow a 1-3mm measuring deviation due to manual measurement.

Actual Products may vary in terms of color.

Features:

  1. XH-M415 Micro Boost Module
  2. SX1308 Boost DC-DC Converter
  3. Input: 2-24V, Output: 3-28V
  4. Peak Current: 2A
  5. Efficient Voltage Boosting

Specifications:

  1. Product Name: DC Boost Module
  2. Model: XH-M415
  3. Main function: synchronous boost module
  4. Input voltage: DC2-24V
  5. Output voltage: DC3-28V
  6. Output current: peak 2A
  7. Length: 32mm
  8. Width: 17mm
  9. Height: 12mm

Package Includes:

1 x XH-M415 Micro Boost Module SX1308 Boost DC-DC Input 2-24 Output 3-28 Peak 2A
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India
