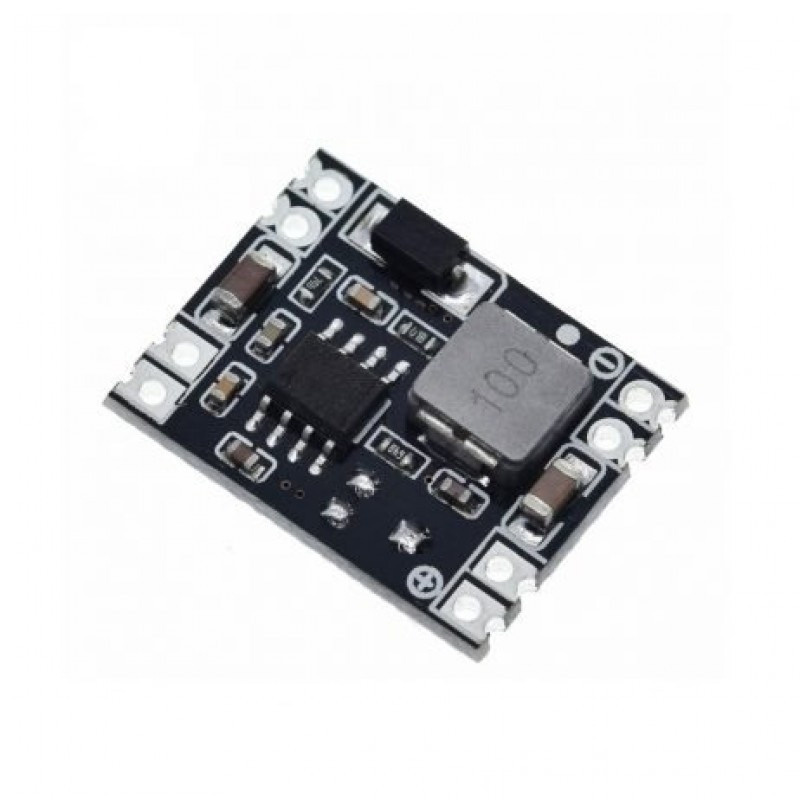

DC-DC 3A 5V-12V 24V to 12V Step-down Power Supply Module
- Product Code: EPI7312
- Availability: 31
-
Rs.58.00
- (Excluding 18% GST)
OR
This mini DC-DC step-down voltage converter module supports 5-24 voltage input and 12V output with input polarity reverse protection and output overvoltage protection, short circuit protection.
It adopts synchronous rectification technology to ensure ultra-high power conversion of up to 97.5% to take full use of your input power.
Features:
- Improve conversion efficiency
- Small size, Compact Size
- Input with reverse polarity protection diode, will not damage when input connect incorrectly
Package Includes:
1 x DC-DC 3A 5V-12V 24V to 12V Step-down Power Supply Module
Specifications :-
| Input Voltage | 5-24V |
| Input Mode | Soldering |
| Output Voltage | 12V |
| Maximum Output Current | 3A |
| Maximum Conversion Efficiency | 97.5% |
| Full load temperature | 30 C |
| Switching Frequency | 500KHz |
| Voltage Regulation | 0.5% |
| Dynamic Response Speed | 5% 200uS |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 126.26 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
