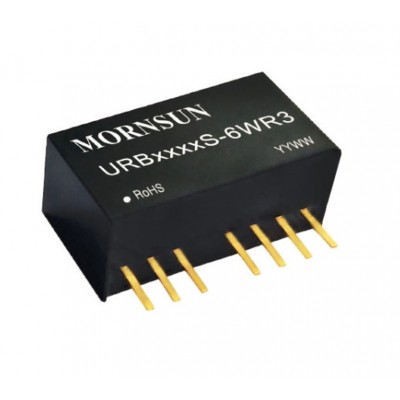

URB2424S-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - Compact SIP Package
- Product Code: EPI22484
- Availability: 5
-
Rs.899.00
- (Excluding 18% GST)
OR
URB_S-6WR3 series of isolated 6W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 87%, 1600VDCinput to output isolation, operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output short-circuit, over-current protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields..
Features:-
- Ultra-wide 4:1 input voltage range
- High efficiency up to 87%
- No-load power consumption as low as 0.12W
- I/O isolation test voltage 1.6K VDC
- Input under-voltage protection, output short circuit, over-current protection
- Operating ambient temperature range: -40℃ ~+105℃
- Industry standard pin-out
- EN62368 approved
Specifications:-
- I/p Voltage range:9-36V
- Nominal voltage:24V
- O/p voltage:24V
- O/p current:250/0mA
- wattage:6W
- Isolation:1.5kvdc
- Package: SIP
Package Includes:-
1 x URB2424S-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - Compact SIP Package
Download DATASHEET :
