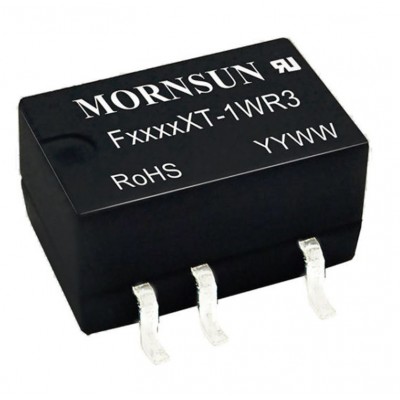

F0524XT-1WR3 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - Compact SMD Package
- Product Code: EPI9036
- Availability: 46
-
Rs.309.00
- (Excluding 18% GST)
OR
F0524XT-1WR3 series are specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits
Features:-
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating ambient temperature range: -40°C to +105°C
- High efficiency up to 85%
- Compact SMD package
- I/O isolation test voltage 3k VDC
- Industry standard pin-out
- IEC62368, UL62368, EN62368 approved
Specifications:-
- I/p Voltage range:4.5-5.5vdc
- Nominal voltage:5Vdc
- O/p voltage:24V
- O/p current:42/4(mA)
- wattage:1W
- Isolation:3kVdc
- Package: SMD
Package Includes:-
1 x F0524XT-1WR3 Mornsun 5V to 24V DC-DC Converter 1W Power Supply Module - Compact SMD Package
Download DATASHEET :
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
