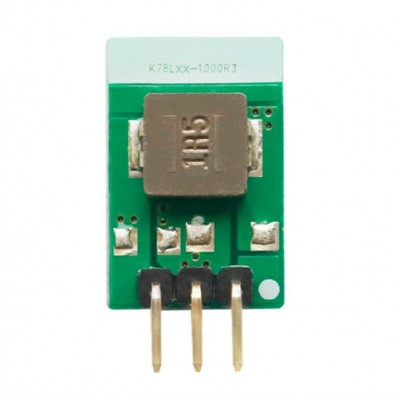

K78L12-1000R3 Mornsun +12V/-12V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package
- Product Code: EPI11098
- Availability: Out Of Stock
-
Rs.295.00
- (Excluding 18% GST)
OR
K78L12-1000R3 series are high efficiency switching regulators and ideal substitutes of LM7812 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power
Features:-
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40℃ to +85℃
- Negative output available
- Output short-circuit protection
- Pin-out compatible with LM78XX linear regulators
- IEC60950, UL60950, EN60950 approved
Specifications:-
- I/p Voltage range:16-36vdc
- Nominal voltage:24Vdc
- O/p voltage:12V
- O/p current:1000(mA)
- wattage:1W
- Isolation: No
- Package: SIP
Package Includes:-
1 x K78L12-1000R3 Mornsun +12V/-12V Output DC-DC Converter 1W High Efficiency Switching Regulator Module - SIP Package
Download DATASHEET :
