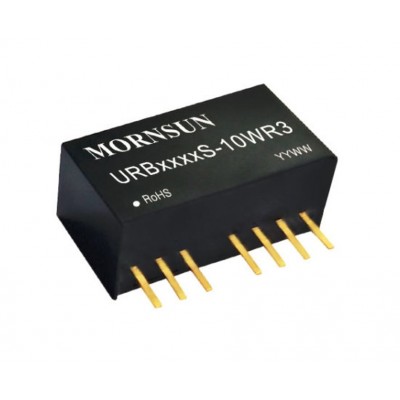

URB2415S-10WR3 Mornsun 24V to 15V DC-DC Converter 10W Power Supply Module - Compact SIP Package

URB2415S-10WR3 series of isolated 10W DC-DC converter products have an ultra-wide 4:1 input voltage and feature efficiencies of up to88%, input to output isolation is tested with 1500VDC and the converters safely operate in an ambient temperature of -40℃to +85℃, input under-voltage protection, output short-circuit, over-current protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields

Features:-

• Ultra-wide 4:1 input voltage range
• High efficiency up to 88%
• I/O isolation test voltage 1.5k VDC
• High power density
• Input under-voltage protection, output short circuit, over-current protection
• Operating ambient temperature range: -40℃ to+85℃
• Industry standard pin-out
• EN62368 approved

Specifications:-

• I/p Voltage range:9-36V
• Nominal voltage:24V
• O/p voltage:15V
• O/p current:667/0mA
• wattage:10W
• Isolation: 1.5kvdc
• Package: SIP

Package Includes:-

1 x URB2415S-10WR3 Mornsun 24V to 15V DC-DC Converter 10W Power Supply Module - Compact SIP Package

Download DATASHEET :

Download
