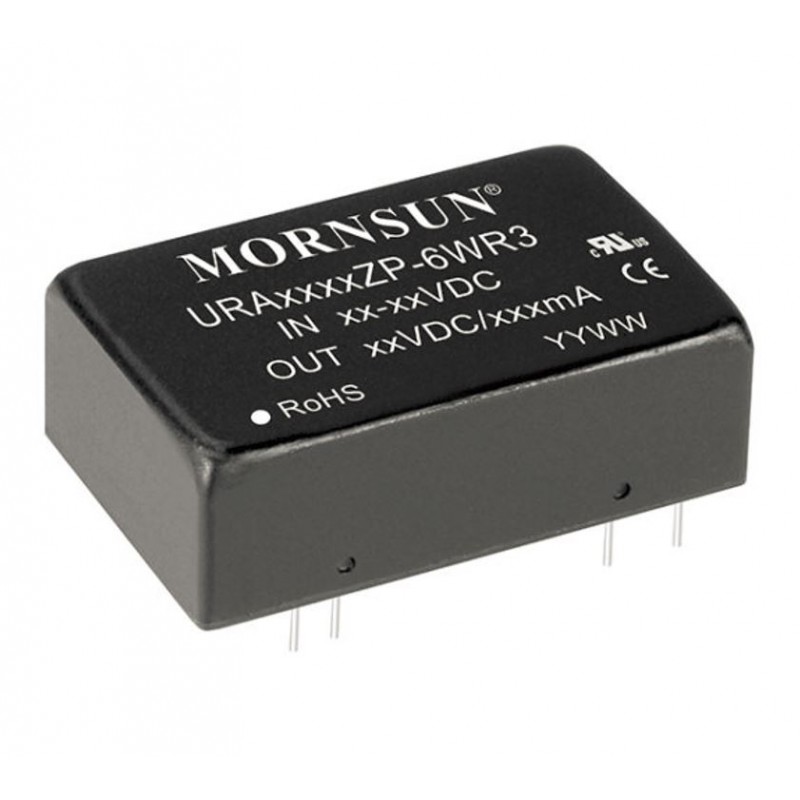

URA4805ZP-6WR3 Mornsun 48V to ±5V DC-DC Converter 6W Power Supply Module - DIP Package

URA4805ZP-6WR3 Series of isolated 6W DC-DC converter products with an ultra-wide range of voltage input of 9-36VDC(24VDCinput), 18-75VDC(48VDC input), input to output isolation is tested with 1500VDC, input under-voltage protection, output over-voltage, short-circuit, over-current protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components and they are widely used in fields such as industrial control, electric power, instruments, communication and railway applications.

Features:-

• Ultra-wide 4:1 range input voltage
• High efficiency up to 88%
• No-load power consumption as low as 0.12W
• I/O test isolation voltage : 1.5k VDC
• Operating ambient temperature range: -40℃ to +85℃
• Input under-voltage protection, output over-voltage, short circuit, over-current protection
• Meet CISPR32/EN55032 CLASS A, without extra components
• Industry standard pin-out
• UL60950, EN60950, IEC60950 approved
• Meets EN50155 railway standard

Specifications:-

• I/p Voltage range:18-75V
• Nominal voltage:48V
• O/p voltage:+-5V
• O/p current:+-1200/0mA
• wattage:6W
• Isolation: 1.5kvdc
• Package: DIP

Package Includes:-

1 x URA4805ZP-6WR3 Mornsun 48V to ±5V DC-DC Converter 6W Power Supply Module - DIP Package
