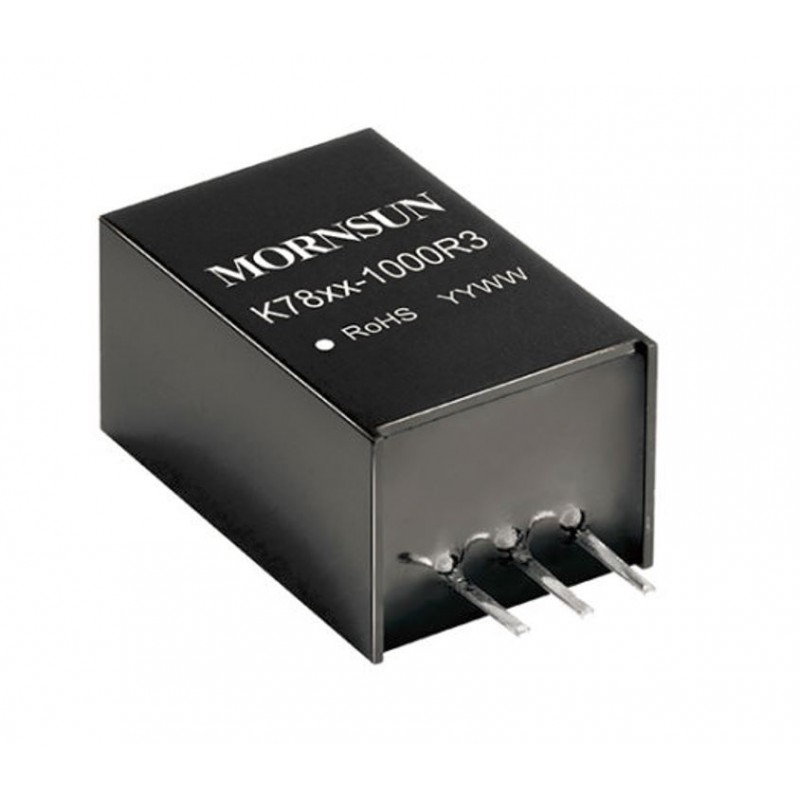

K7812-1000R3 Mornsun +12V/-12V Output DC-DC Converter 1W Power Supply Module - SIP Package
- Product Code: EPI11083
- Availability: 46
-
Rs.279.00
- (Excluding 18% GST)
OR
K7812-1000R3 series are high efficiency switching regulators and ideal substitutes for LM7812 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heatsink. These product are widely used in applications such as industrial control, instrumentation and electric power
Features:-
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range -40℃ to+85℃
- Support the negative output
- Output short-circuit protection
- Pin compatible with LM78xx series
- IEC60950, UL60950, EN60950 Approval
Specifications:-
- I/p Voltage range:16-36vdc
- Nominal voltage:24Vdc
- O/p voltage:12V
- O/p current:1000(mA)
- wattage:1W
- Isolation: No
- Package: SIP
Package Includes:-
1 x K7812-1000R3 Mornsun +12V/-12V Output DC-DC Converter 1W Power Supply Module - SIP Package
Download DATASHEET :
