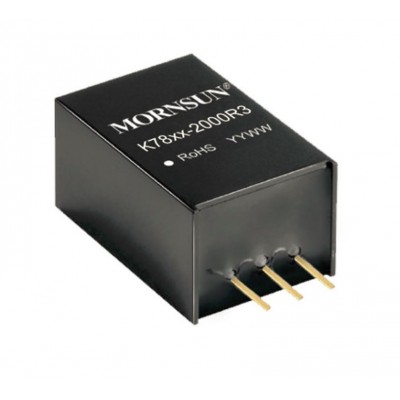

K7805-2000R3 Mornsun 24V to 5V DC-DC Converter 2W Power Supply Module - SIP Package
- Product Code: EPI11078
- Availability: Out Of Stock
-
Rs.399.00
- (Excluding 18% GST)
OR
K7805-2000R3 series are high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The converters feature high efficiency, low loss, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.
Features:-
- High efficiency up to 96%
- No-load input current as low as 0.1mA
- Operating ambient temperature range: -40℃ to+85℃
- Output short-circuit protection
- Pin compatible with LM78XX series linear regulators
- EN62368 approved
Specifications:-
- I/p Voltage range:8-36vdc
- Nominal voltage:24Vdc
- O/p voltage:5V
- O/p current:2000(mA)
- wattage:2W
- Isolation: No
- Package: SIP
Package Includes:-
1 x K7805-2000R3 Mornsun 24V to 5V DC-DC Converter 2W Power Supply Module - SIP Package
