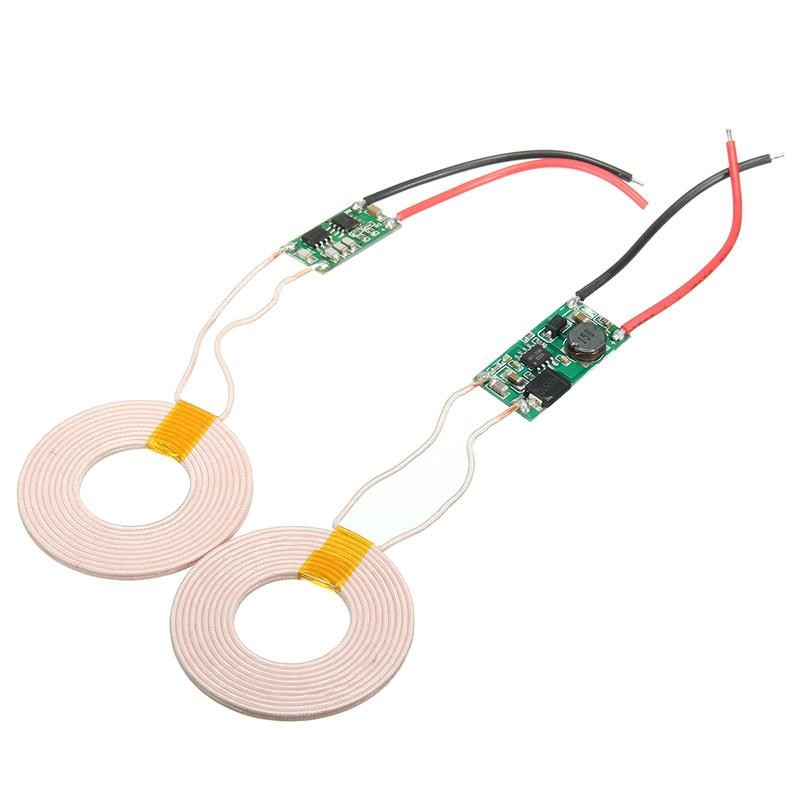

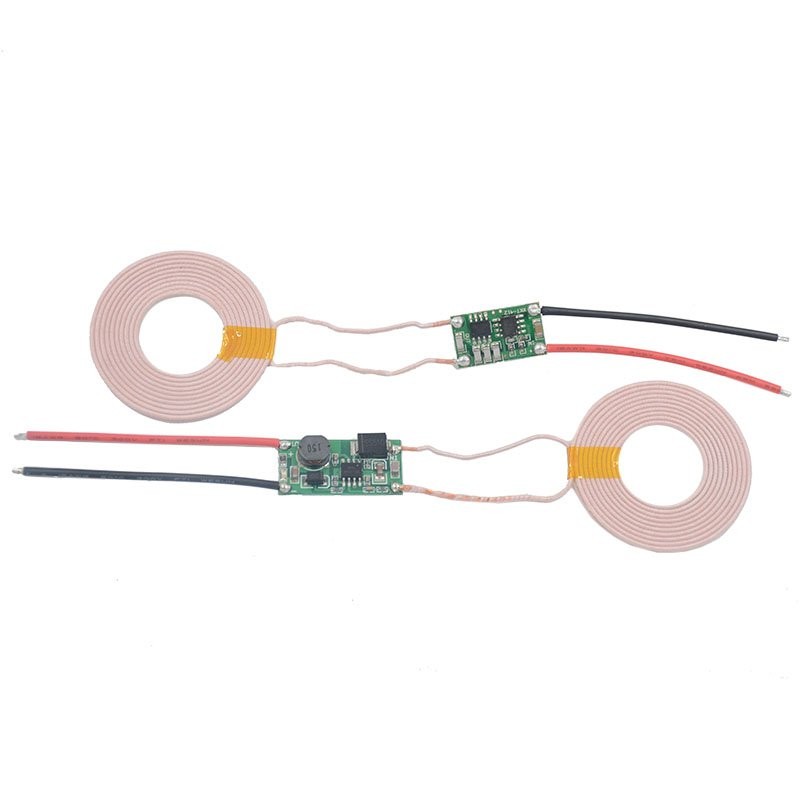

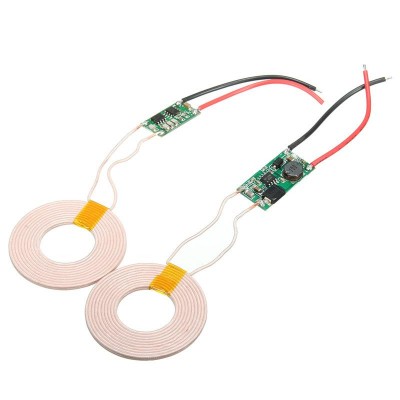

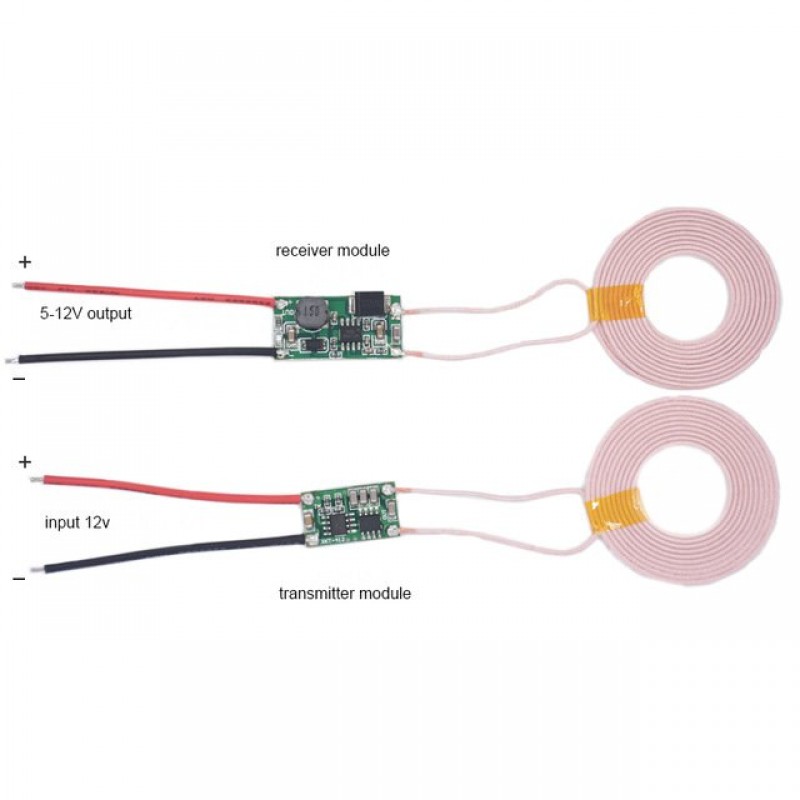

5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module
- Product Code: EPI3596
- Availability: 108
-
Rs.489.70
OR
The 5V 2A Large Current Wireless Charger Module Transmitter Receiver Charging Coil Module is for a variety of small electronic products, wireless charging, power supply development, and design, with a small size, easy to use, high efficiency, low price characteristics.
It is mainly used in mobile electronics products such as for charging the mobile phone wirelessly, game machines, tanks, MP3, MP4, adult products, digital cameras, electric shavers, machine learning, health care, etc. Due to the adoption of a Contactless charging power supply, to complete sealing of the products, waterproof and dust-proof; increase product service life, use more convenient.
Package Includes:
1 x 5V 2A Wireless Power Supply Transmitter Receiver Charging Coil Module.
Specifications:
| Model | XKT-412 |
| Input Voltage | 12VDC |
| Output | 5V / 1A current |
| Normal Use Distance | 2 ~ 10mm |
| Operating Current | 1.2-2 A |
| Tx/Rx Coil Dimensions | Diameter 43mm, Inner diameter 20mm |
| Coil Wire Thinkness | 2.3mm |
| The transmitting module size | 18mmx8.5mmx15mm |
| The receiving module size | 10mmx25mmx3mm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
* Product Images are shown for illustrative purposes only and may differ from actual product.
