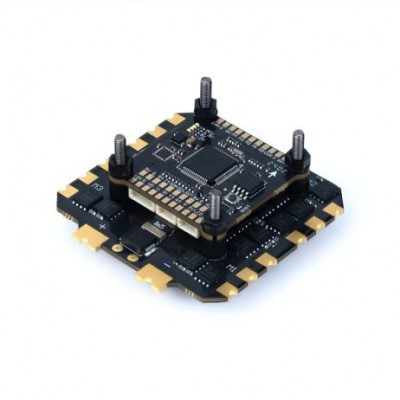

Axisflying 80A+F405/F722 STACK for 13inch FPV Drone 6-8S Input 80A ESC + F05 STACK For 6s

The Axisflying 80A+F405/F722 STACK is built to handle demanding drone applications, especially for heavy builds or high-speed flight that require precise control and reliable power management.

Features:

1. High Continuous Current: 80A per motor, providing strong power output to handle larger propellers and heavier drone builds.
2. 6-8S LiPo Compatibility: Supports high-voltage input for enhanced performance and longer flight times.
   BLHeli_32 Firmware: Equipped with BLHeli_32 firmware, which supports advanced settings like RPM filtering, bidirectional DSHOT, and smooth throttle response.
3. Advanced Protection: Includes over-current, over-temperature, and voltage monitoring for safe operation.
4. F405/F722 Processor: Option between F405 and F722 processors; both deliver responsive flight control, with the F722 offering enhanced processing power for complex tasks.
5. Betaflight OSD: Integrated OSD for in-flight monitoring of voltage, current, and other critical data on the FPV display.
6. Multiple UART Ports: Available UART ports for peripherals like GPS, VTX, and Crossfire receivers.
7. Gyro: MPU6000 gyro for stable, precise flight performance, even in high-vibration environments.
8. Blackbox Logging: Flash memory for flight data logging, enabling post-flight analysis and tuning adjustments.Multiple UART Ports

ESC Specifications :

1. Continuous Current: 80A per motor, designed to handle higher loads and provide stability for larger props.
2. Input Voltage: Supports 6-8S LiPo batteries, giving it versatility across various power configurations.
3. Firmware: BLHeli_32, offering advanced tuning and compatibility with RPM filtering, bidirectional DSHOT, and features like smooth startup and throttle tuning.
4. BEC Output: 5V output, which can power flight controllers and other 5V-compatible accessories.
5. Protection Features: Over-current protection, voltage monitoring, and built-in temperature control to prevent overheating during intense maneuvers.
6. Size and Mounting: Standard 30.530.5mm mounting pattern for compatibility with larger frames

Processor:

1. F405 Option: STM32F405 processor, an ideal choice for budget-friendly high-performance builds.
2. F722 Option: STM32F722 processor, offering greater processing power, supporting more complex filtering and tuning.
3. Onboard Memory: Flash memory for Blackbox logging, allowing for post-flight analysis and tuning improvements.
4. Betaflight OSD: Real-time monitoring of critical flight data (battery voltage, flight time, current draw, etc.) directly on your FPV feed.
5. Gyro: Built-in MPU6000 gyro, known for high-speed, low-noise performance, improving flight smoothness and stability.
6. Power Supply: Includes a 5V/10V BEC, which can handle the power needs of a variety of peripherals like cameras, VTXs, GPS units, and LEDs.

UARTs and Connectivity:

1. Multiple UART ports allow for easy integration of GPS modules, Crossfire receivers, digital FPV units, and other peripherals.
2. I2C and SPI ports for additional sensor integration.
3. Compatibility with DJI O3 Air Unit and other digital video transmission systems.
4. Mounting and Size: 30.530.5mm mounting holes, standard for larger FPV drones. Compact, robust PCB design to handle the demands of larger drones.

Package Includes:

1 x Axisflying 80A+F405/F722 STACK for 13inch FPV Drone 6-8S Input 80A ESC + F05 STACK For 6s
