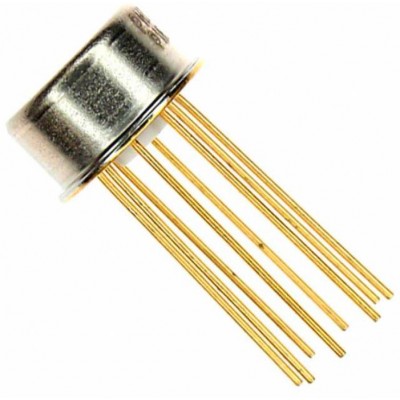

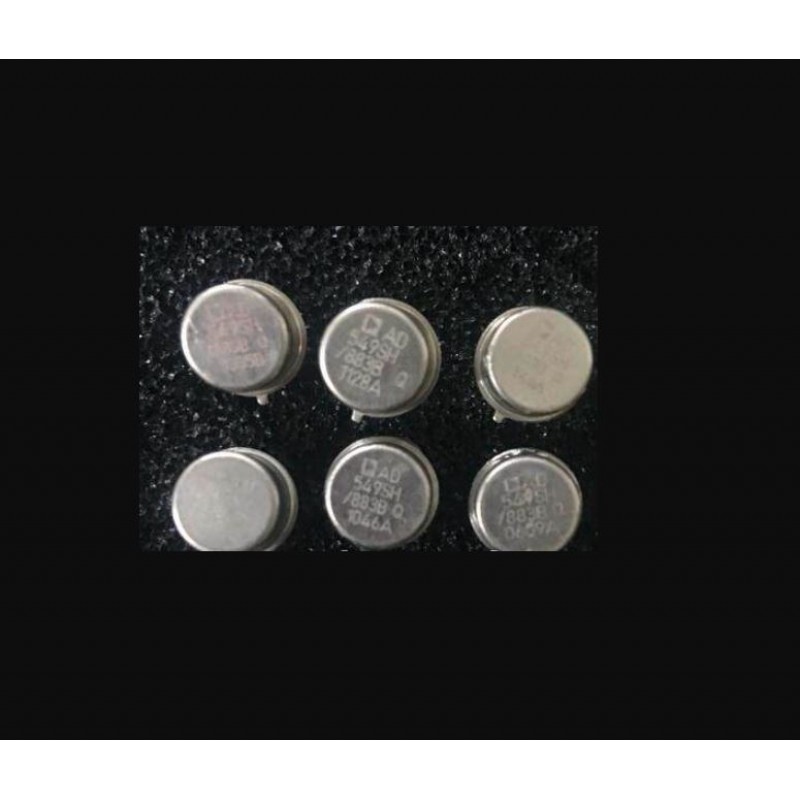

AD549 Ultra low Input Bias Current Operational Amplifier TO-8 Package

  • Product Code: EPI4865
  • Availability: 22

0 reviews Write a review

  • Rs.1799.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at support@electropi.in

The AD549 is a monolithic electrometer operational amplifierwith very low input bias current. Input offset voltage and inputoffset voltage drift are laser trimmed for precision performance.The AD549’s ultralow input current is achieved with “Topgate”JFET technology, a process development exclusive to AnalogDevices. This technology allows the fabrication of extremely lowinput current JFETs compatible with a standard junction-isolated bipolar process. The 1015Ω common-mode impedance,a result of the bootstrapped input stage, insures that the inputcurrent is essentially independent of common-mode voltage.

The AD549 is suited for applications requiring very low input current and low input offset voltage. It excels as a preamp for a wide variety of current output transducers such as photodiodes, photo multiplier tubes, or oxygen sensors. The AD549 can also be used as a precision integrator or low droop sample and hold. The AD549 is pin compatible with standard FET and electrom-eter op amps, allowing designers to upgrade the performance of present systems at little additional cost.


Applications:-

  • Electrometer Amplifier
  • Photodiode Preamp
  • pH Electrode Buffer


Features and Specifications:-

  • Manufacturer Part No: AD549JH
  • Manufacturer: Analog Devices Inc
  • Product Type: Precision Amplifiers
  • Series: AD549
  • Number of Channels: 1 Channel
  • Gain Bandwidth Product: 1 MHz
  • Slew Rate: 3V/us
  • Common Mode Rejection Ratio: 90dB
  • Input Bias Current: 11pA
  • Input Offset Voltage: 500uV
  • Input Voltage Noise Density: 90 nV/sqrt Hz
  • Supply Voltage Range: ±5V ~ ±18V
  • Operating Supply Current: 600uA
  • Operating Temperature Range: 0°C ~ +70°C
  • Shutdown: No Shutdown
  • Dual Supply Voltage: ±15V
  • Input Voltage Range: 10V
  • Power Dissipation: 500 mW (1/2 W)
  • Power Supply Rejection Ratio: 90dB
  • Voltage Gain dB: 120dB
  • Mounting Style: Through Hole
  • Package/Case: TO-8


Package Includes:-

1 x AD549 Ultra low Input Bias Current Operational Amplifier TO-8 Package
