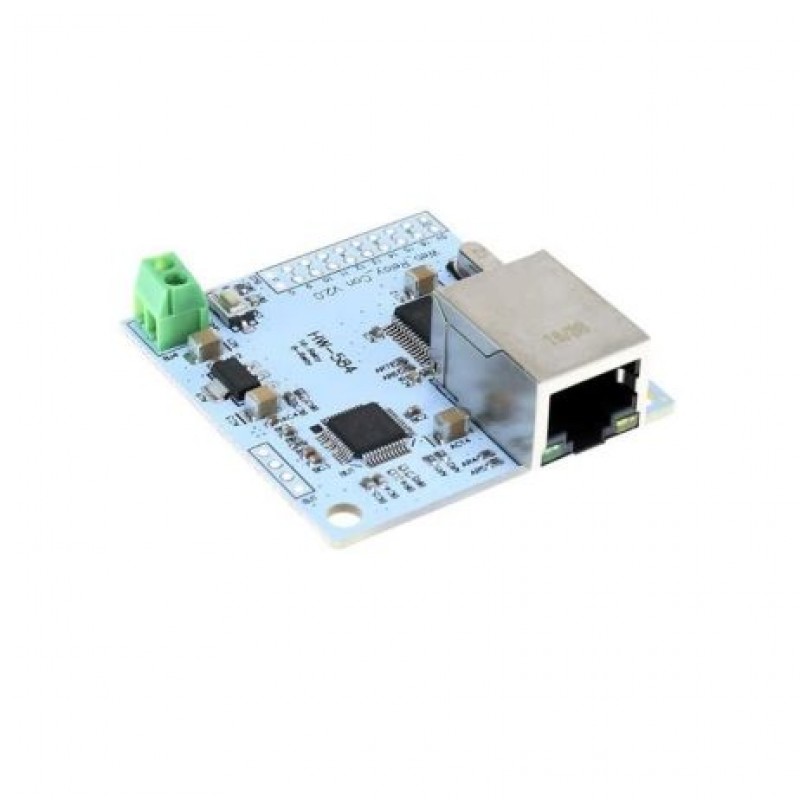

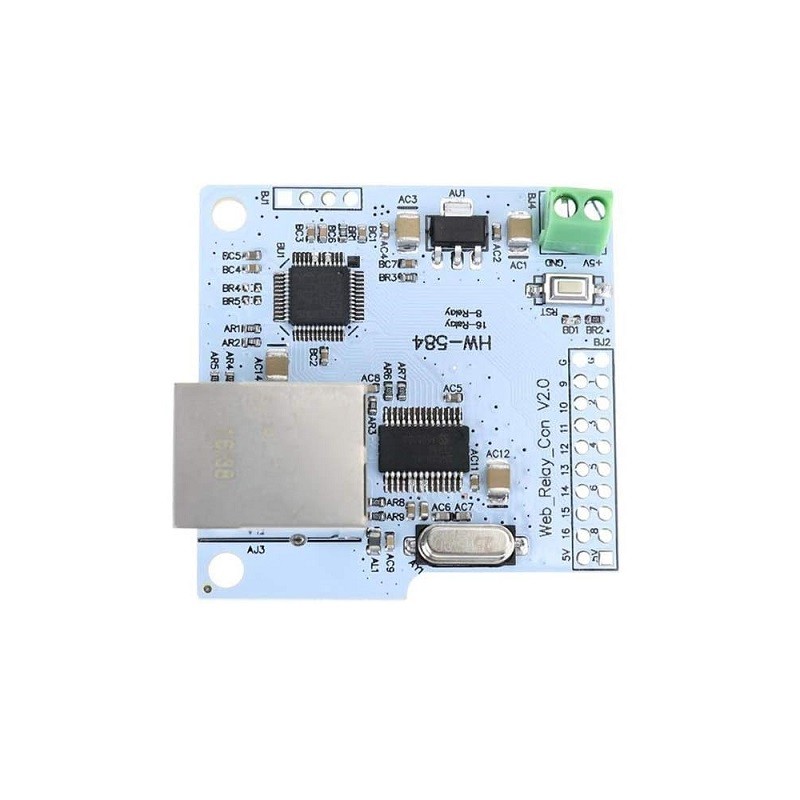

8 bit Channel 5V W5100 ENC28J60 Ethernet Module

The 8-bit Channel 5V W5100 ENC28J60 Ethernet Module is a compact and powerful network interface module designed to facilitate Ethernet connectivity in embedded systems and microcontroller projects. This module supports both the W5100 and ENC28J60 Ethernet controllers, providing flexibility for different project requirements.

Features:

1. Dual Ethernet Controllers
2. 8-Bit Interface
3. 5V Power Supply
4. Ethernet Connectivity
5. Compact Design
6. Header Pins for Easy Connection
7. LED Indicators

Specifications:

1. External power supply voltage: 5V DC 2A
2. Can connect a relay number: 8
3. Electronic switch life: 100,000 times
4. Work temperature: -30C 85C
5. Size: approx. 1.86 X 1.89 X 0.79 in
6. Note: Please pay more attention to the connection, when connecting to the high-voltage power supply module, and
7. avoid damaging the equipment.
8. Directions for use
9. Network assistant set serial port
10. Protocol: TCP/IP
11. IP: 192.168.1.4
12. Port number: 3000

Package Includes:

1 x 8 bit Channel 5V W5100 ENC28J60 Ethernet Module
