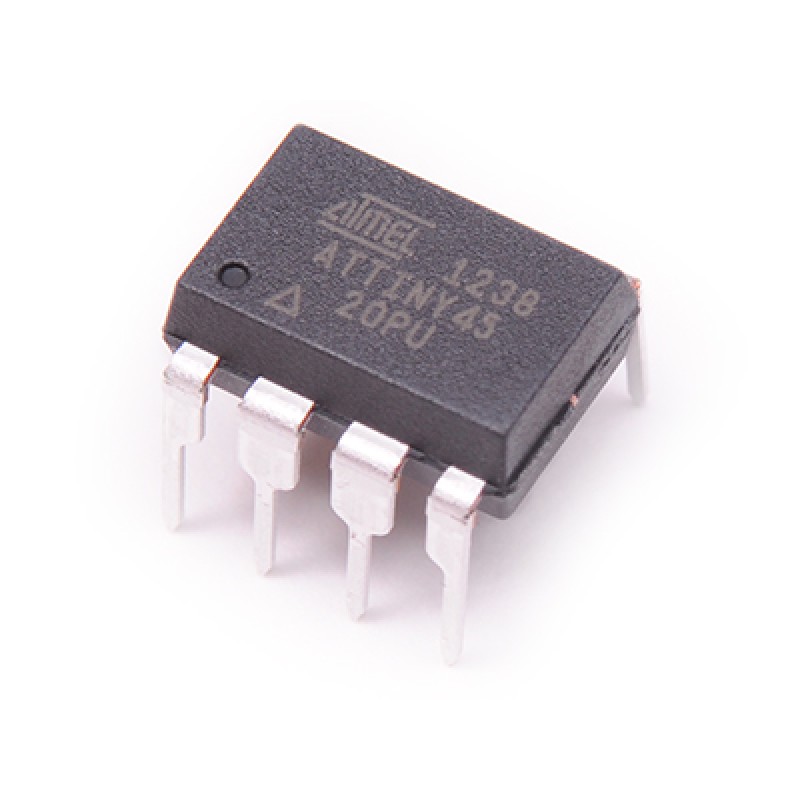

ATtiny45 Microcontroller
- Product Code: EPI5678
- Availability: 62
-
Rs.190.00
- (Excluding 18% GST)
OR
ATtiny45 is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 4KB ISP flash memory, 256-Byte EEPROM, 256B SRAM, 6 general purpose I/O lines, 32 general purpose working registers, one 8-bit timer/counter with compare modes, one 8-bit high speed timer/counter, USI, internal and external Interrupts, 4-channel 10-bit Analog to Digital converter, programmable watchdog timer with internal oscillator, three software selectable power saving modes, and debugWIRE for on-chip debugging. The device achieves a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
Features of ATtiny-45 Micro-controller:-
- Flash (Kbytes):4 Kbytes
- Pin Count:8
- Max. Operating Freq. (MHz):20 MHz
- CPU:8-bit AVR
- Number of Touch Channels:3
- Max I/O Pins:6
- Ext Interrupts:6
- USB Interface:No
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 224.2 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
