Arducam B0251 MINI High Quality Camera with M12 Mount Lens, 12.3MP1/2.3 477P HQ Camera Module for Jetson Nano, Xavier NX and NVIDIA Orin NX/AGX Orin

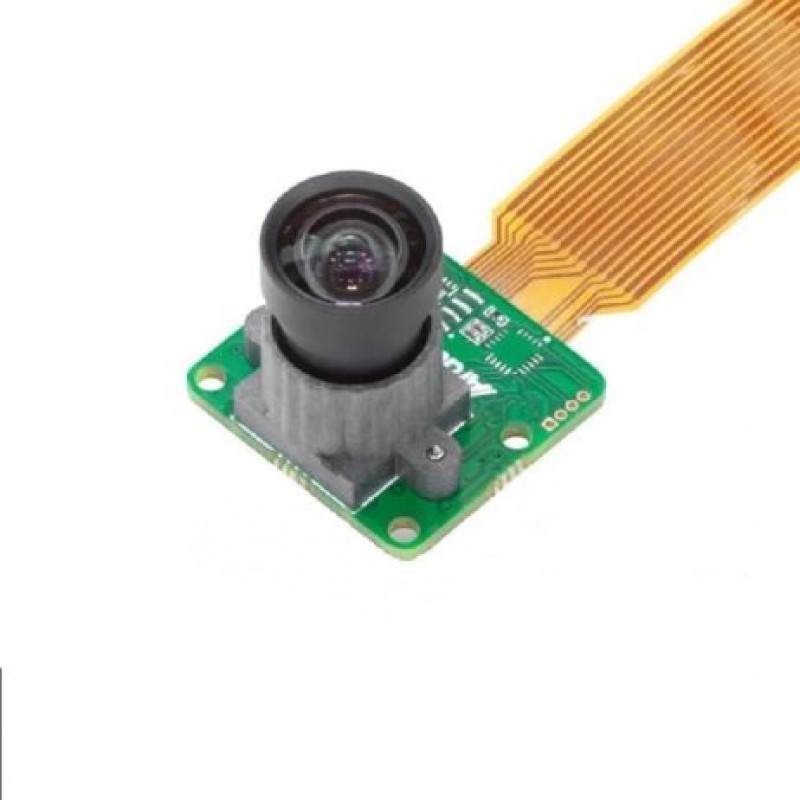

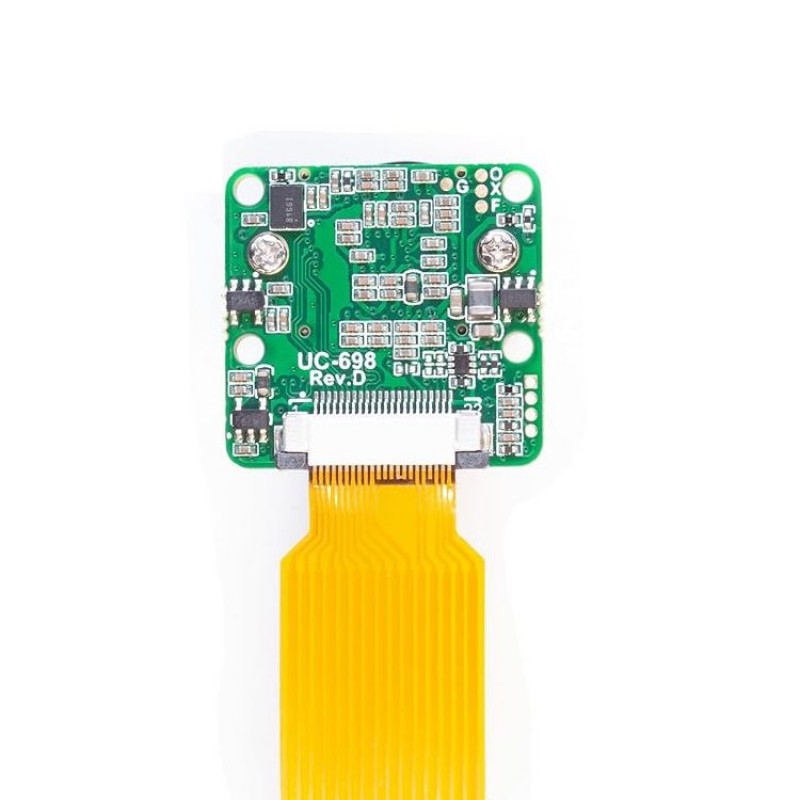

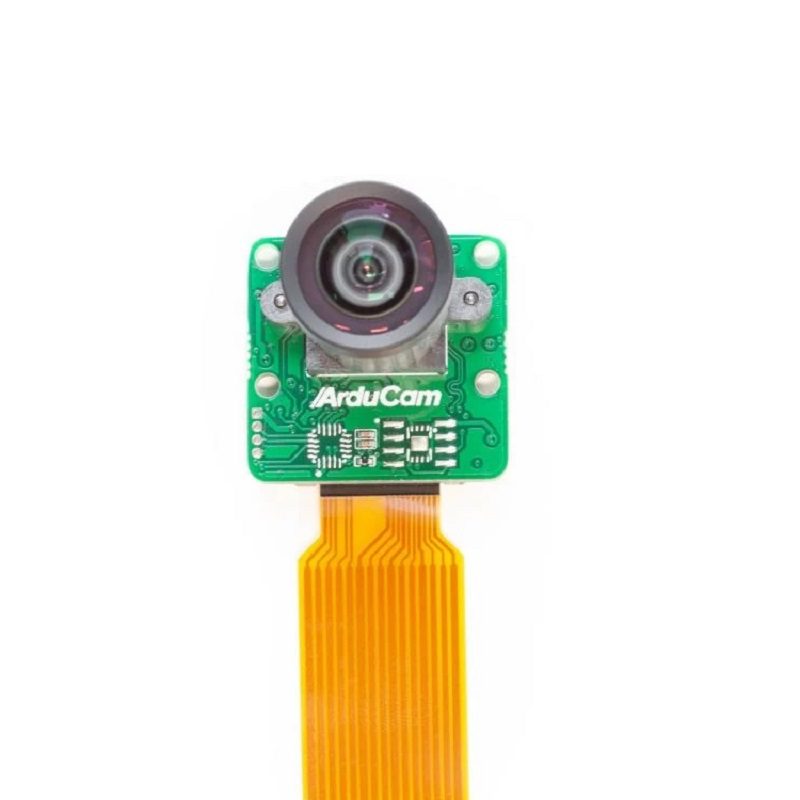

This is a mini and lightweight camera board comparable in size to the Raspberry Pi V2 modulemaking it ideal for applications where space and weight are critical, such as on model airplanes. It features a 1/2.3 12.3MP Sony IMX477 sensor that delivers sharp images with a maximum still resolution of 4056 x 3040. Equipped with a low-distortion M12 lens (EFL: 3.9mm, FoV: 80, F/NO: F2.8), it ensures high-quality visuals in a compact form. This is compatible with the NVIDIA Jetson Developer Kit but may not support other third-party boards.

Note : No SBC board is included in the package

Features:

1. High-Quality Camera: Adopts a 1/2.3 12 Megapixel sensor for sharp image, max. still resolution 4056 x 3040;
2. Mini Sized HQ Cam: Mini and Lightweight: 24mm x 25mm camera board, as mini as Raspberry Pi V2 module size, mounted an M12 lens, perfect for the
3. Camera applications where high resolution is required, but size and weight are limited, such as model airplane.
4. More Than Ultra HD: Come with a low-distortion M12 lens with a FOV of 75(H), which can capture UHD images while maintaining reality.
5. Wide Compatibility: Specially designed for NVIDIA Orin NX/AGX Orin

Applications:

1. UAV/Drones/FPV camera
2. Machine Vision
3. Robotics
4. Face Recognition
5. Defect Detection

Package Includes:

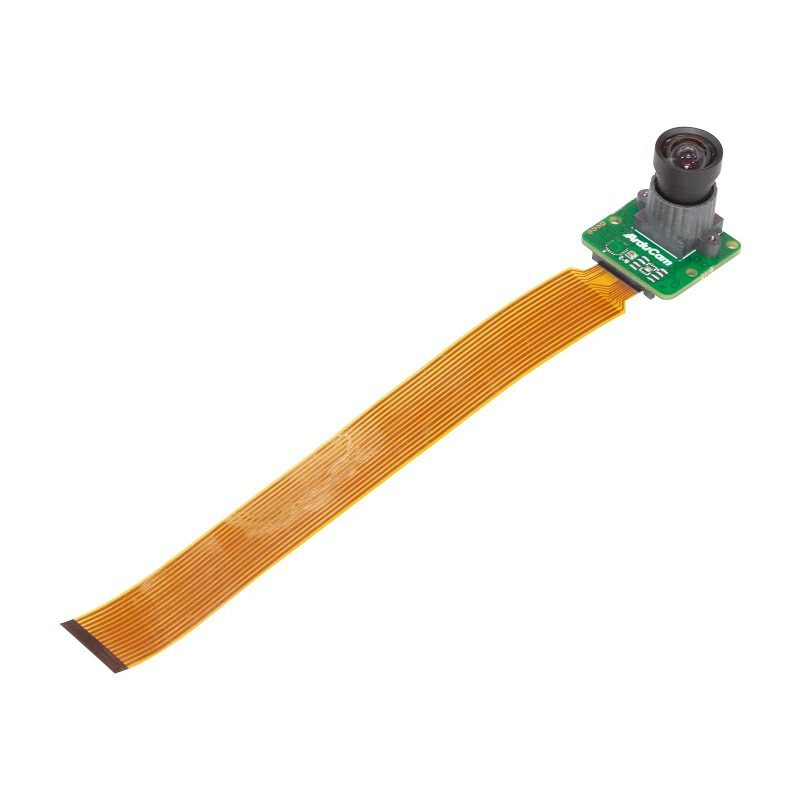

1 x 12MP Camera Module with M12 Lens
1 x 150mm/5.9inch 15pin to 22pin FPC cable
1 x 150mm/5.9inch 22pin to 22pin FPC cable
