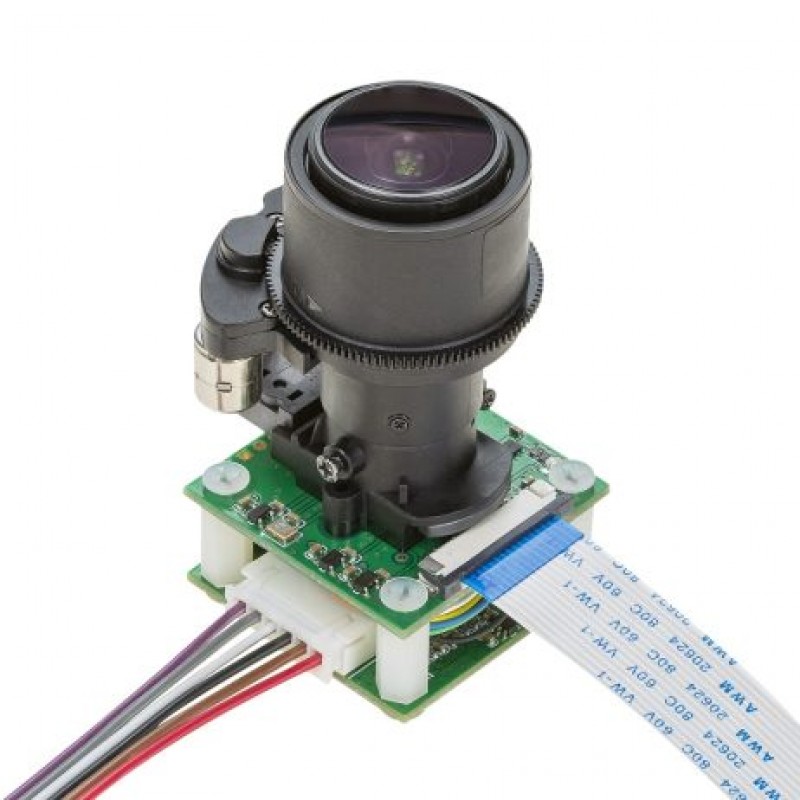

Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX

This is a Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX.

PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pantiltzoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, its do more with less.

Note : PCB color may be different .

Download Link:

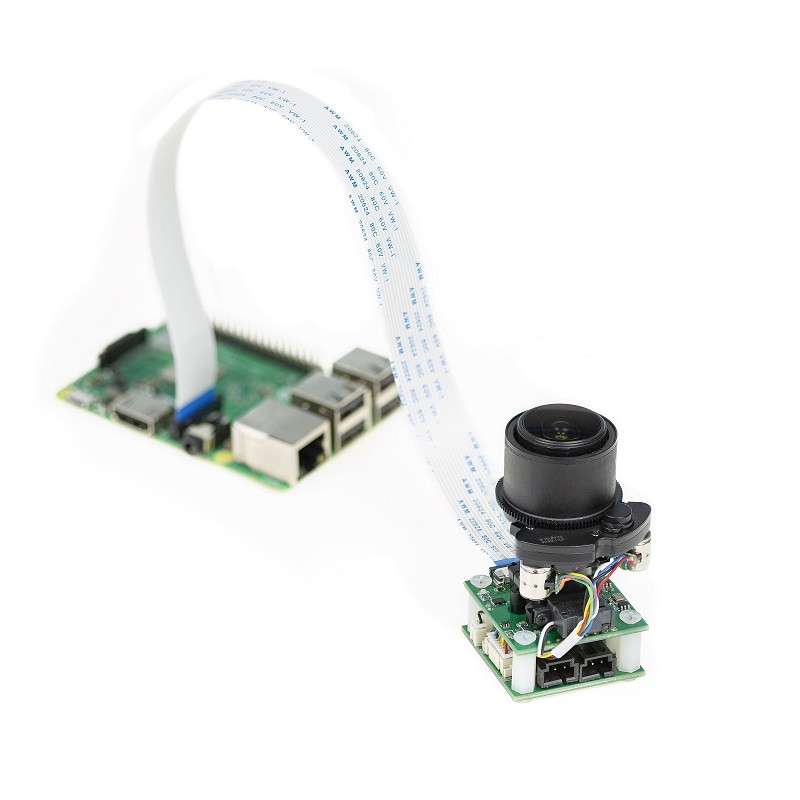

1. First you need to do Hardware setup. You need to make the connections as shown in the link .
2. After connection, it is time for the Software setup. Hence go though the link . Follow the Python-OpenCV tutorial and then arducam PTZ camera example .
3. To install the Libcamera, You need to follow the commands given in this link . You need to follow all 5 steps given in the link.
4. After 3rd step, execute the commands given in the List all cameras and Specify camera . The camera will be turned ON and OFF quickly .
5. To hold it in ON position, you need to increase the time also. Hence , follow the autofocus command. You will see the camera is ON for more time . You can do the focus adjustment as given in the link.

Features:

1. Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi and Jetson Nano / Xavier NX
2. Switchable IR Cut through software for your day/night vision
3. Make full use of the CSI connector now that a single camera can be used to monitor places that should be covered by multiple ones
4. Autofocus control, pan/tilt/zoom keyboard control supported in software
5. 8MP IMX219 Camera board
6. PTZ Controller Board Connector Part Number: S6B-XH-A-1

Applications:

1. IoT cameras
2. Robot cameras
3. Wildlife cameras
4. Other security and surveillance projects

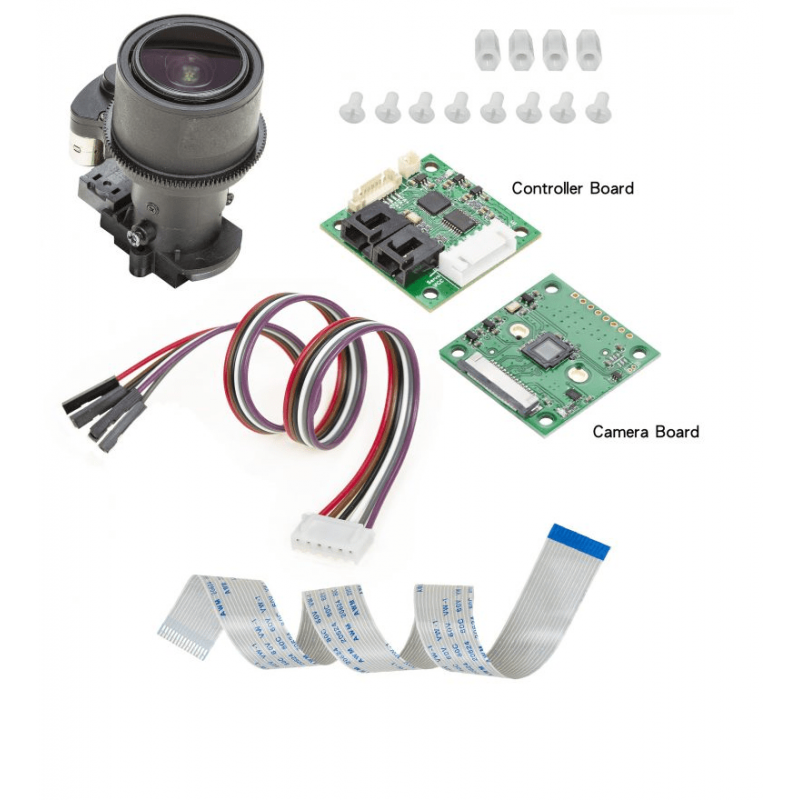

Package includes:

1. 1pcs Arducam PTZ Pan Tilt Zoom Lens
2. 1pcs Controller Board
3. 1pcs 8MP Camera Board
4. 1pcs 15-Pin FPC Cable (11.8 in/30 cm)
5. 1pcs XH2.54 Jumper wire with 6Pin Famale Connector (11.8 in/30 cm)
