Ai-Thinker AiPi-Knob V1.0 Rotary Encoder Driver Board On Board 1.28Inch Display

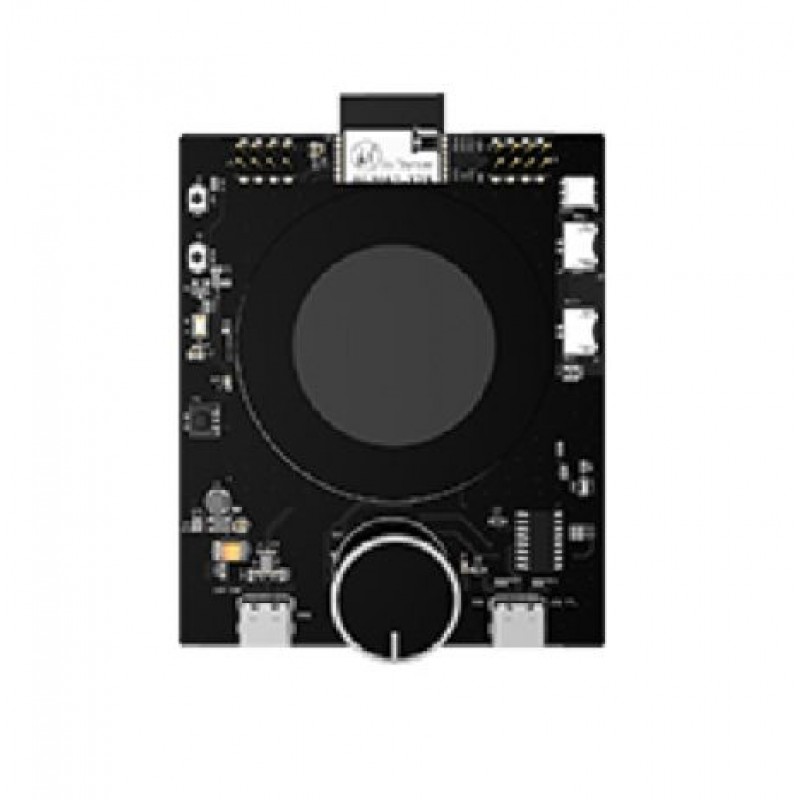

Ai-Thinker AiPi-Knob V1.0 Rotary Encoder Driver Board On Board 1.28Inch Display is a rotary encoder driver board (referred to as Knob) designed by the Ai-Thinker open source team, which integrates a 1.28 circular screen, pin interface, rotary encoder, RGB light, built-in audio, infrared emission and infrared reception, download pin, IO pin, serial port download USB interface, and USB interface. AiPi-Knob factory has burned the firmware and made four demonstration interfaces: washing machine interface, RGB light interface, TV control interface, and air conditioning control interface.

The Ai-Thinker AiPi-Knob V1.0 Rotary Encoder Driver Board On Board 1.28Inch Display module is equipped with a wealth of peripheral interfaces, specifically including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, and GPIO. AiPi-SCP-Knob integrates a screen pin interface, knobs, RGB lights, built-in audio, infrared emission and infrared reception, a download pin, an IO pin, serial download a USB interface, and an outgoing USB interface.

Features:

1. built-in audio
2. Infrared emission and infrared reception
3. serial download a USB interface
4. outgoing USB interface.
5. AiPi-SCP-Knob integrates a screen pin interface

Package Includes:

1 x Ai Thinker AiPiSCP-Knob(Screen)
