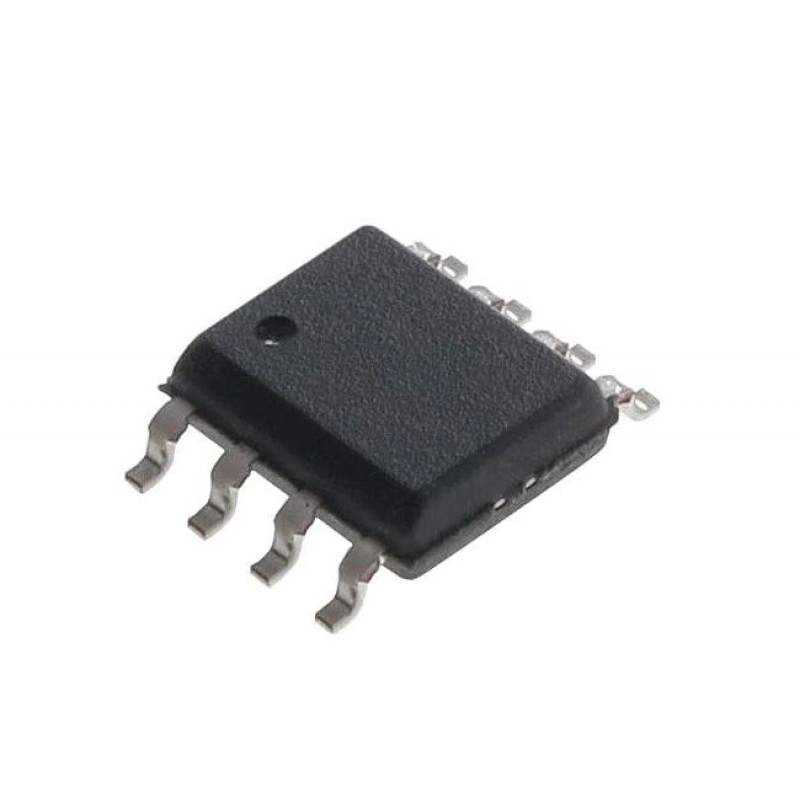

W25Q16JVSSIQ - 3V 16Mbit NOR Serial Flash Memory SPI 8 Pin SOIC

The W25Q16JV (16M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 1uA for power-down.

Features and Specifications:-

• Brand:Winbond Electronics
• Memory Size:16Mbit
• Interface Type:Serial
• Case/Package:SOIC
• Pin Count:8
• Organisation:2M x 8
• Mounting:Surface Mount
• Minimum Operating Supply Voltage:2.7 V
• Maximum Operating Supply Voltage:3.6 V
• Dimensions:5.38 x 5.38 x 1.91mm
• Minimum Operating Temperature:-40 C
• Maximum Operating Temperature:+85 C
• Number of Words:2M
• Number of Bits per Word:8bit

Package Includes:-

1 x W25Q16JVSSIQ - 3V 16Mbit NOR Serial Flash Memory SPI 8 Pin SOIC
