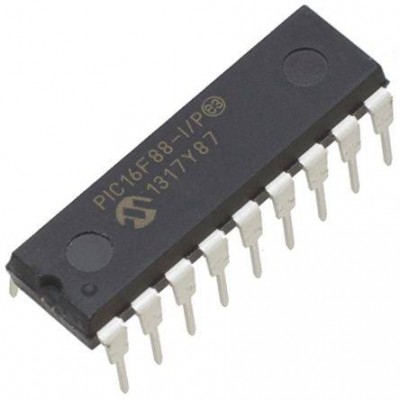

PIC16F88 Microcontroller
- Product Code: EPI18232
- Availability: 182
-
Rs.285.00
- (Excluding 18% GST)
OR
The PIC16F88 is a18/20/28-Pin Enhanced Flash MCUs with nanoWatt Technology. The following are the features:-
• Capture, Compare, PWM (CCP) module:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
• 10-bit, 7-channel Analog-to-Digital Converter
• Synchronous Serial Port (SSP) with SPI (Master/Slave) and I2C™ (Slave)
• Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART/SCI) with 9-bit address detection: - RS-232 operation using internal oscillator (no external crystal required)
• Dual Analog Comparator module:
- Programmable on-chip voltage reference
- Programmable input multiplexing from device inputs and internal voltage reference
- Comparator outputs are externally accessible
Specification:-
| Parameter | Value |
| Program Memory Type | Flash |
| Program Memory Size (KB) | 7 |
| CPU Speed (MIPS/DMIPS) | 5 |
| SRAM (B) | 368 |
| Temperature Range (°C) | -40 to 125 |
| Operating Voltage Range (V) | 2 to 5.5 |
| Pin Count | 18 |
| Timers | 2 x 8-bit, 1 x 16-bit |
| ADC Input | 7 ch, 10-bit |
| Capture/Compare/PWM Peripherals | 1 Input Capture, 1 CCP |
| Digital Communication Peripherals | 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C) |
| Data EEPROM/HEF (bytes) | 256 |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 336.3 (Inclusive of all Taxes) |
