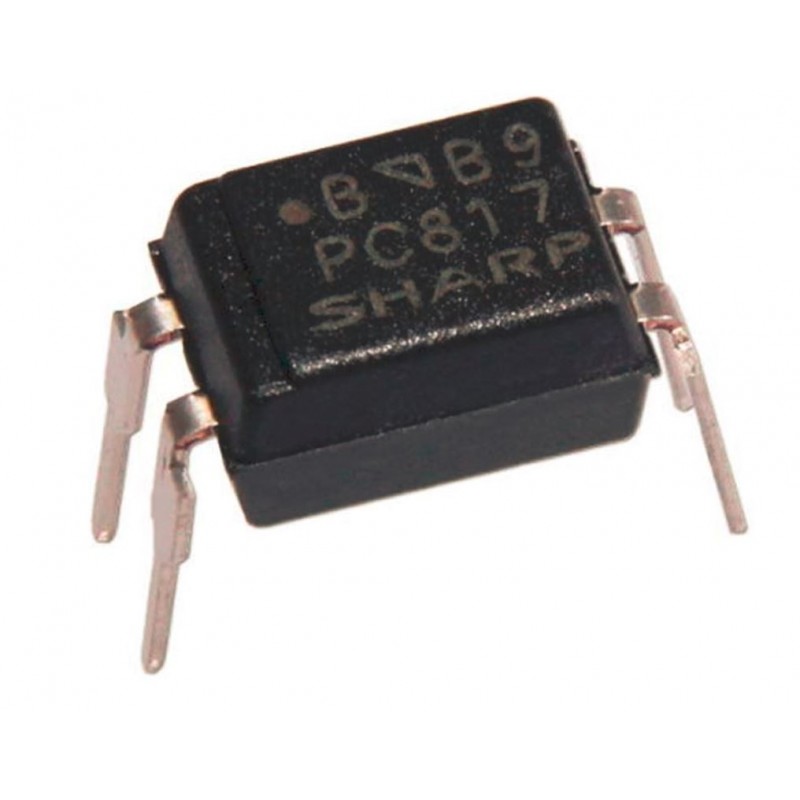

PC817 Optocoupler
- Product Code: EPI18060
- Availability: 11036
-
Rs.5.00
- (Excluding 18% GST)
OR
PC817 Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V(*) and CTR is 50% to 600% at input current of 5mA.
Features:-
• 4pin DIP package
• Double transfer mold package (Ideal for Flow Soldering)
• High collector-emitter voltage (VCEO:80V(*))
• Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V)
• Several CTR ranks available
• High isolation voltage between input and output (Viso(rms) : 5.0 kV)
Application:-
• I/O isolation for MCUs (Micro Controller Units)
• Noise suppression in switching circuits
• Signal transmission between circuits of different potentials and impedances
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 50 | mA |
| PD | Power dissipation | 70 | mW |
| VR | Reverse Voltage | 6 | V |
| Tstg | Storage temperature range | −55 to +125 | °C |
| TOPR | Operating Temperature | −30 to +100 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| IFM | Peak forward current | 1 | A |
| VCEO | Collector-emitter breakdown voltage | 80 | V |
| VECO | Emitter-collector voltage | 6 | V |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 7.67 (Inclusive of all Taxes) |
