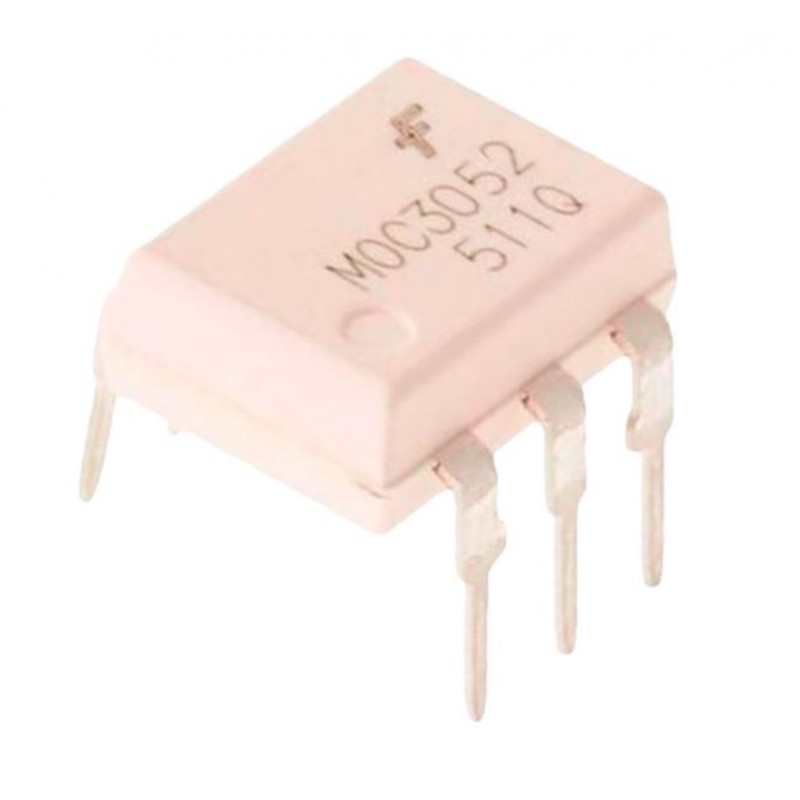

MOC3052 IC - Optoisolator Triac Driver Optocoupler IC
- Product Code: EPI13006
- Availability: 438
-
Rs.44.00
- (Excluding 18% GST)
OR
The MOC3052 consist of a GaAs infrared emitting diode optically coupled to a non−zero− crossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 115 VAC and 240 VAC lines to provide random phase control of high current triacs or thyristors. These devices feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads.
Features:-
• Excellent IFT Stability—IR Emitting Diode Has Low Degradation
• 600 V Peak Blocking Voltage
• Safety and Regulatory Approvals
♦ UL1577, 4,170 VACRMS for 1 Minute
♦ DIN EN/IEC60747−5−5
Applications:-
• Solenoid/Valve Controls
• Lamp Ballasts
• Static AC Power Switch
• Interfacing Microprocessors to 115 VAC and 240 VAC Peripherals
• Solid State Relay
• Incandescent Lamp Dimmers
• Temperature Controls
• Motor Controls
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 60 | mA |
| PD | Power dissipation | 100 | mW |
| VR | Reverse Voltage | 6 | V |
| Tstg | Storage temperature range | -40 to +150 | °C |
| TOPR | Operating Temperature | -40 to +85 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| ITSM | Peak Repetitive Surge Current (PW = 1 ms, 120 pps) | 1 | A |
| VDRM | Off-State Output Terminal Voltage | 600 | V |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Circuit Pulse Private Limited, Sector-47, Gurugram, Haryana - 122018, India |
| MRP | Rs. 51.92 (Inclusive of all Taxes) |
